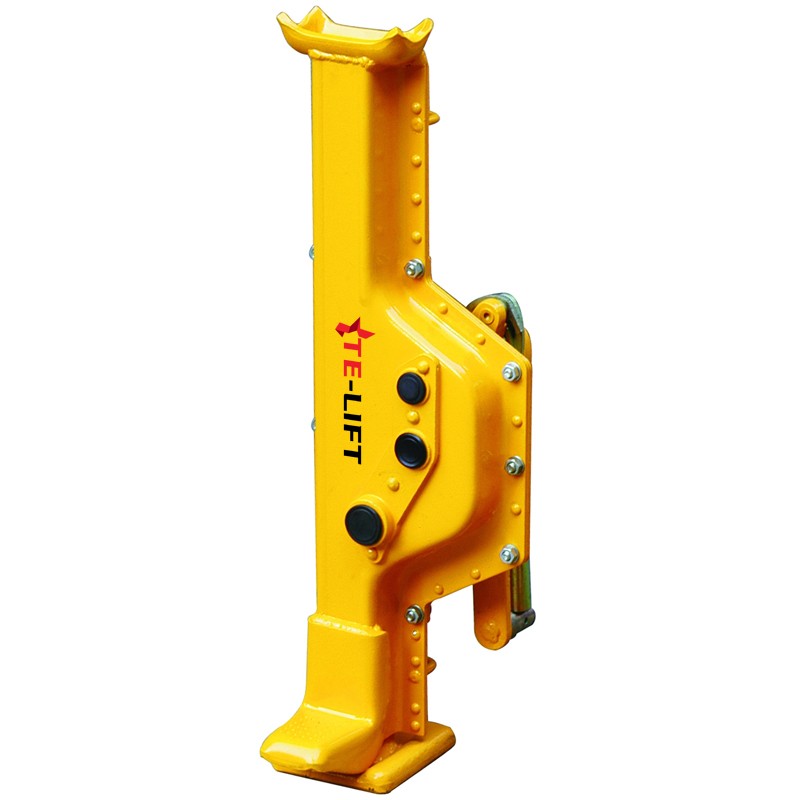

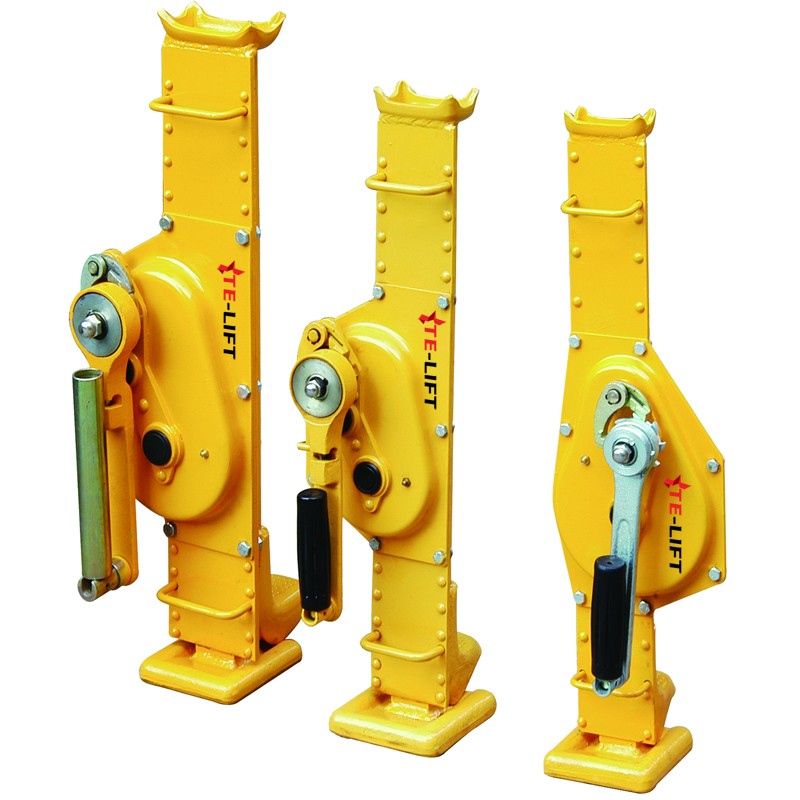

Vertical Type Winch Steel Jack
SJ series
■ Conform to DIN 7355.
■ Capacity from 1.5tonne to 20tonne.
■ Our steel jacks are developed in accordance with the lastest safety regulations.
■ With milled rack, geared wheels and tempered parts of driving gear.
■ Suitable for lifting loads of any type.
■ With lifting body.
■ Safety crank with folding handle.
■ With portable handle for easy taking.
| Model | SJ15 | SJ30 | SJ50 | SJ100 | SJ160 | SJ200 | ||
| Rated Capacity | (tonne) | 1.5 | 3 | 5 | 10 | 16 | 20 | |
| Test Load | (KN) | 22 | 44.1 | 73.5 | 147 | 196 | 245 | |
| Effort to Rated Capacity | (N) | 280 | 280 | 280 | 560 | 640 | 640 | |

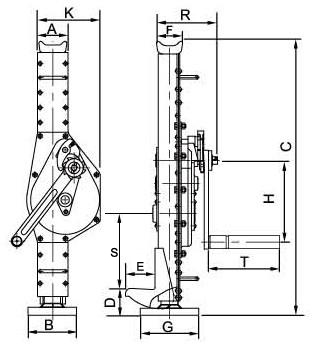

| Dimensions | A | (mm) | 81 | 83 | 108 | 124 | 135 | 135 |
| B | (mm) | 100 | 130 | 140 | 140 | 150 | 150 | |
| C | (mm) | 600-900 | 735-1090 | 730-1075 | 800-1190 | 800-1120 | 860-1180 | |
| D | (mm) | 60-360 | 70-425 | 80-425 | 100-490 | 95-415 | 100-420 | |
| E | (mm) | 55 | 60 | 71 | 86 | 80 | 80 | |
| F | (mm) | 16 | 45 | 68 | 76 | 85 | 85 | |
| G | (mm) | 110 | 138 | 170 | 170 | 180 | 180 | |
| H | (mm) | 225 | 249 | 275 | 300 | 300 | 380 | |
| K | (mm) | 147 | 170 | 190 | 252 | 275 | 275 | |
| R | (mm) | 119 | 140 | 155 | 185 | 210 | 22 | |
| S | (mm) | 175 | 235 | 217 | 187 | \ | \ | |
| T | (mm) | 113 | 128 | 128 | 250 | 250 | 250 | |
| Net Weight | (KG) | 14 | 20 | 28.2 | 46.5 | 65 | 75 |
