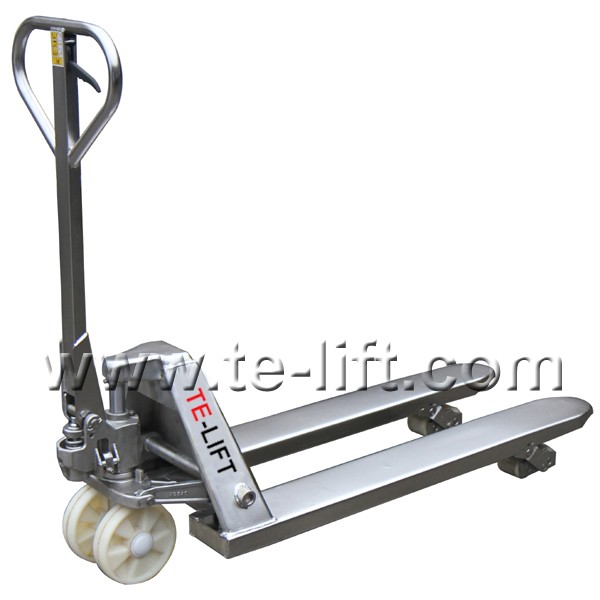

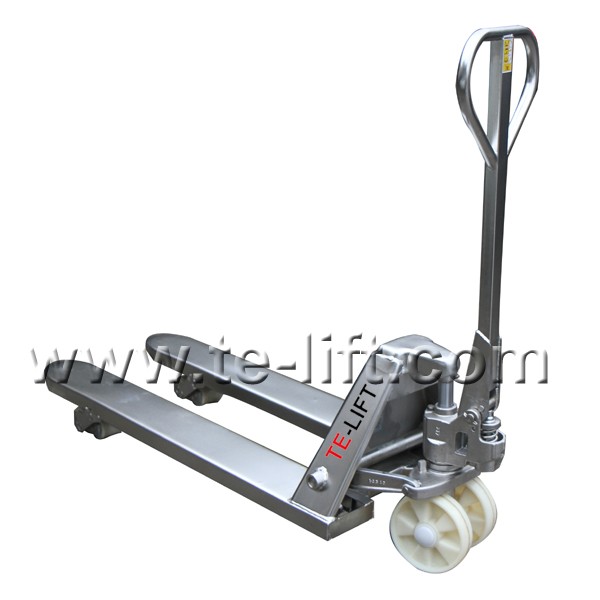

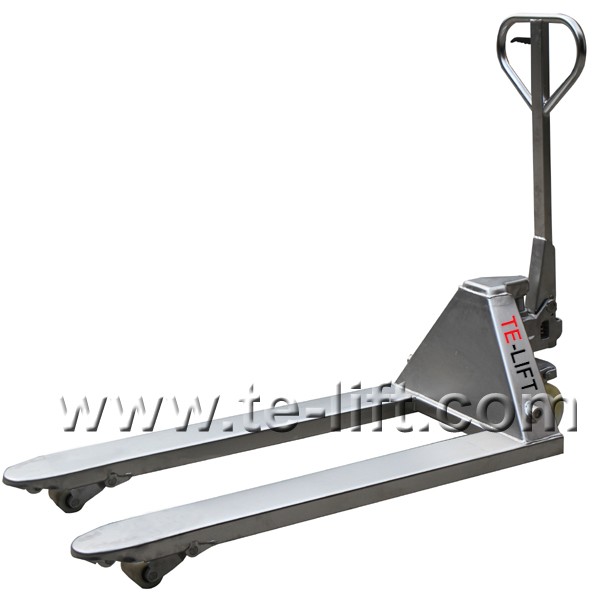

Rustproof Stainless Steel Hydraulic Pallet Jacks
ACS series■ Top Quality Range hydraulic AC stainless steel pump.
■ All metal parts made completely stainless steel, including hydraulic pump, fork frame, handle, push rod, bearing, pin and bolt, etc…
■ Ideal transport aid for application in damp or harsh environments such as meat or fish processing plants, dairies, pharmaceutical and chemical industry.
■ With pressure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.

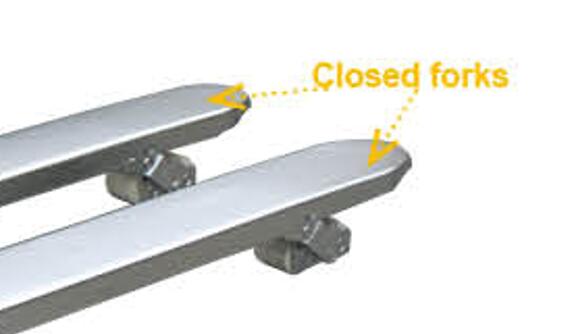

■ The enclosed fork tips ensure there is no dead corner where corrosive spatters remains and damages the truck.
■ Specially designed for applications where hygiene is of utmost importance.
■ Nylon steering wheels and fork rollers as standard option for damp or harsh.
■ 75 mm (3") lowered fork height available.
| Model | ACS20S | ACS25S | ACS20L | ACS25L | |
| Capacity | (kg) | 2000 | 2500 | 2000 | 2500 |
| Overall Forks Width | (mm) | 540 | 685 | ||
| Min. Fork Height | (mm) | 85/75 | |||
| Max. Fork Height | (mm) | 200/190 | |||
| Steering Wheel | (mm) | 200x50/180x50 | |||
| Load Roller Single | (mm) | 80x93/74x93 | |||
| Load Roller Tandem | (mm) | 80x70/74x70 | |||
| Individual Fork Size | (mm) | 160x60 | |||
| Fork Length | (mm) | 1000/1100/1150/1220 | |||
| Net Weight | (kg) | 75 | 77 | 78 | 80 |
