Description
AC-M series

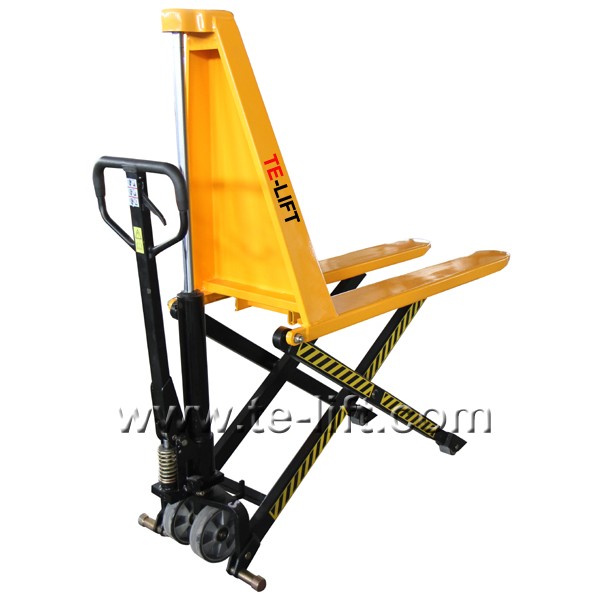

■ High scissor lift pallet truck design to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets or containers of materials.

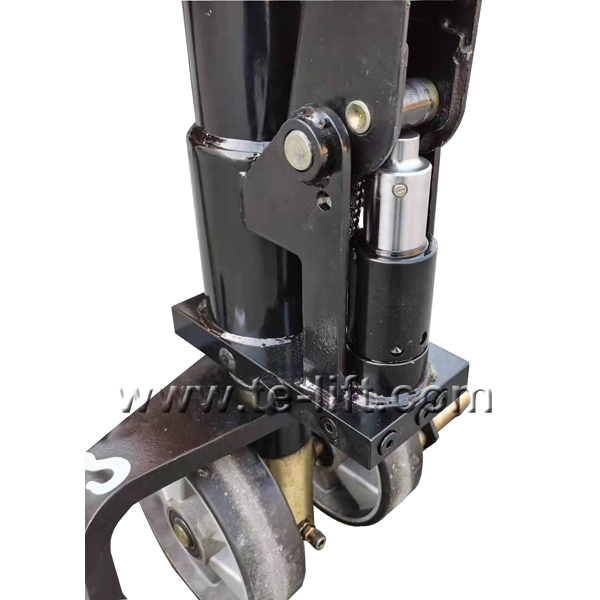

■ The hydraulic pump is the same design as AC hand pallet truck pump, with very good performance.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.

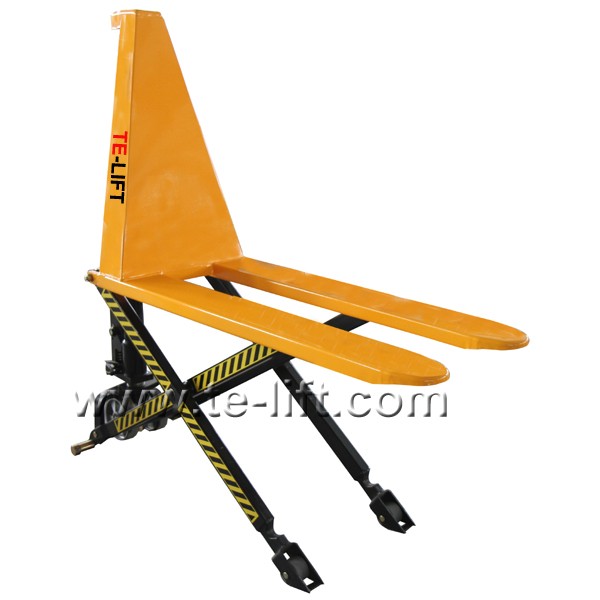

■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ Equped with polyurethane loading roller and steering wheels to protect your floor.
■ The truck will be braked automatically when lift to the maximum height.
■Built-in type spring under pump handle

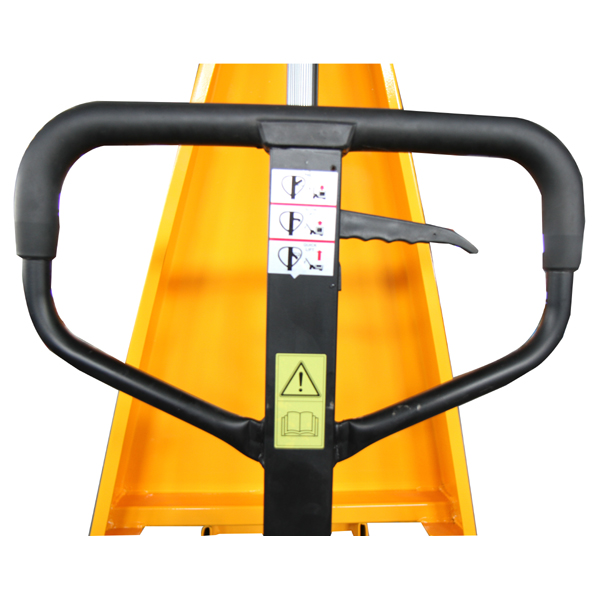

■Handle with rubber protection, more comfortable.
| Model | AC1054M | AC1068M | AC1554M | AC1568M | |
| Capacity | (kg) | 1000 | 1500 | ||
| Min. Fork Height | (mm) | 85 | |||
| Max. Fork Height | (mm) | 800 | |||
| Overall Forks Width | (mm) | 540 | 680 | 540 | 680 |
| Individual Fork Width | (mm) | 160 | |||
| Fork Length | (mm) | 1150 | |||
| Front Wheel Size | (mm) | Ø80x70 | |||
| Steering Wheel Size | (mm) | Ø180x50 | |||
| Net Weight | (kg) | 120 | 125 | 125 | 130 |
