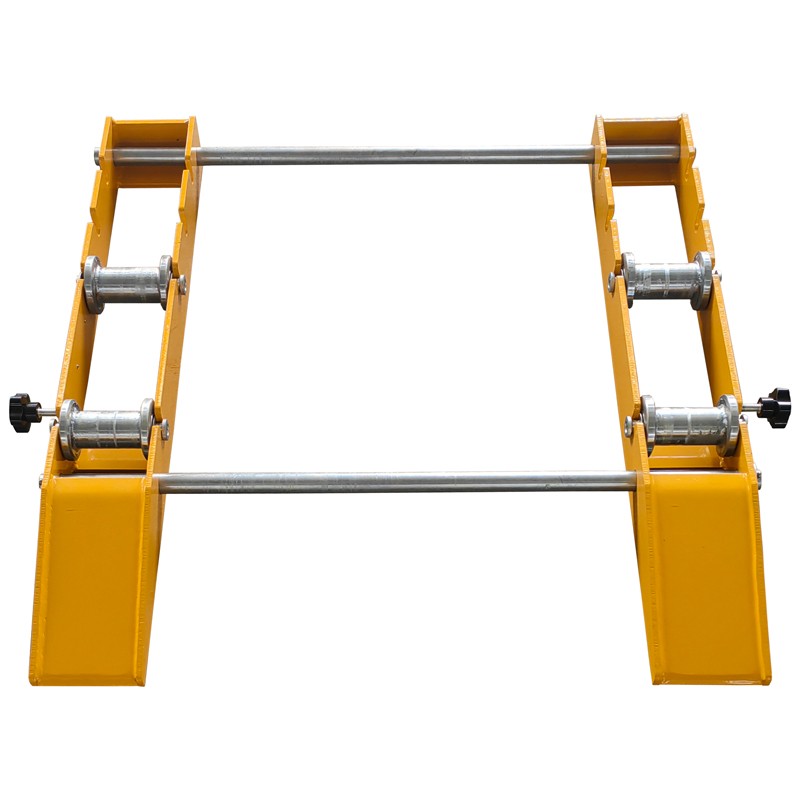

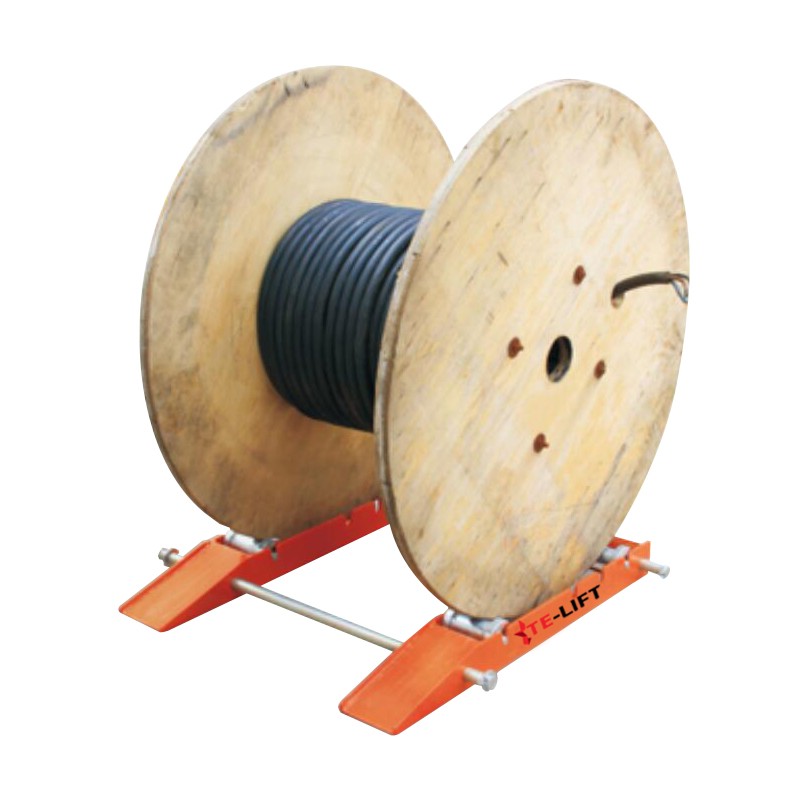

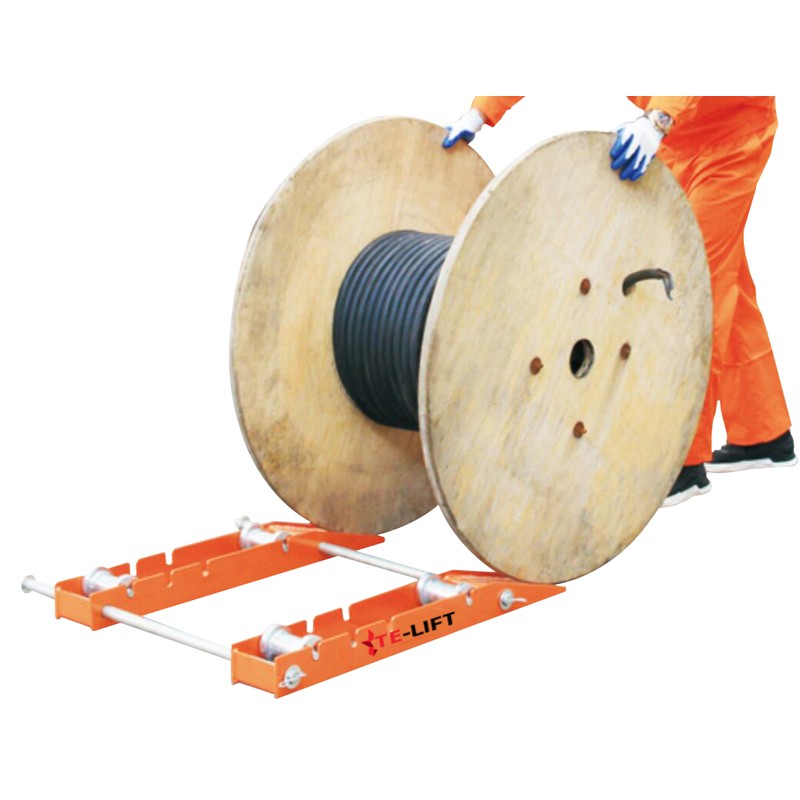

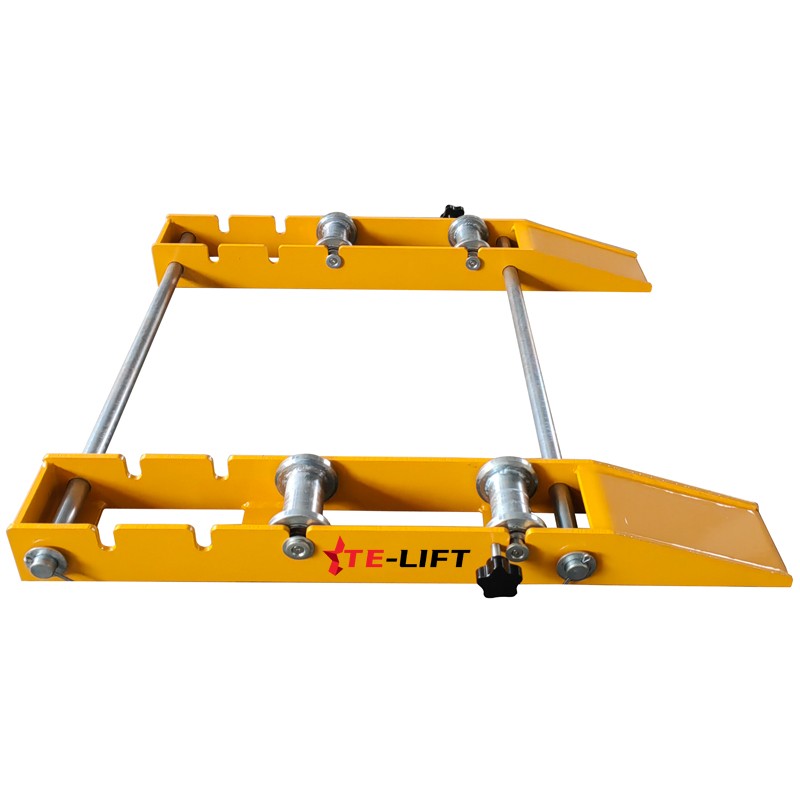

Wire Coil Rack Wire Drum Holder
Model TYX-1
■ Take wire from wire coil easily by using this rack.
■ Wire coil can be rotated easliy when we use this wire coil rack.
■ Three positions for loading rollers, which is suitable for different diameter of wire coils.
■ Adjustable overall width, which is suitable for different width of wire coils.
■ Easy to take on and take off the wire coil with brakes of loading rollers.

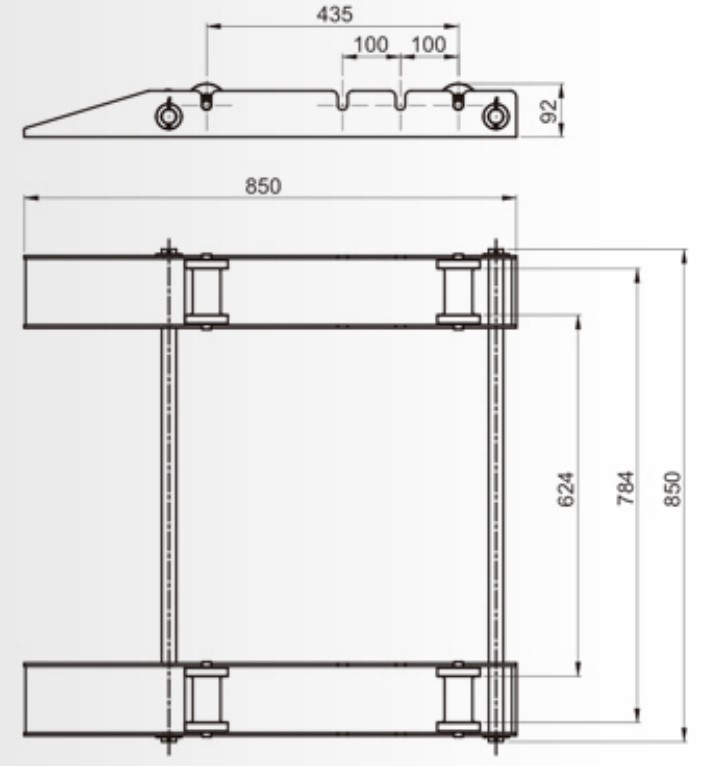

| Model | TYX-1 | |
| Capacity | (kg) | 1000 |
| Applicable Wire Coil Diameter | (mm) | Φ300-Φ1000 |
| Applicable Wire Coil Width | (mm) | 300-750 |
| Distance of Two Rollers | (mm) | 435/335/235 |
| Overall Length | (mm) | 850 |
| Overall Width | (mm) | 850 |
| Overall Height | (mm) | 92 |
| Net Weight | (kg) | 30.8 |
