Description

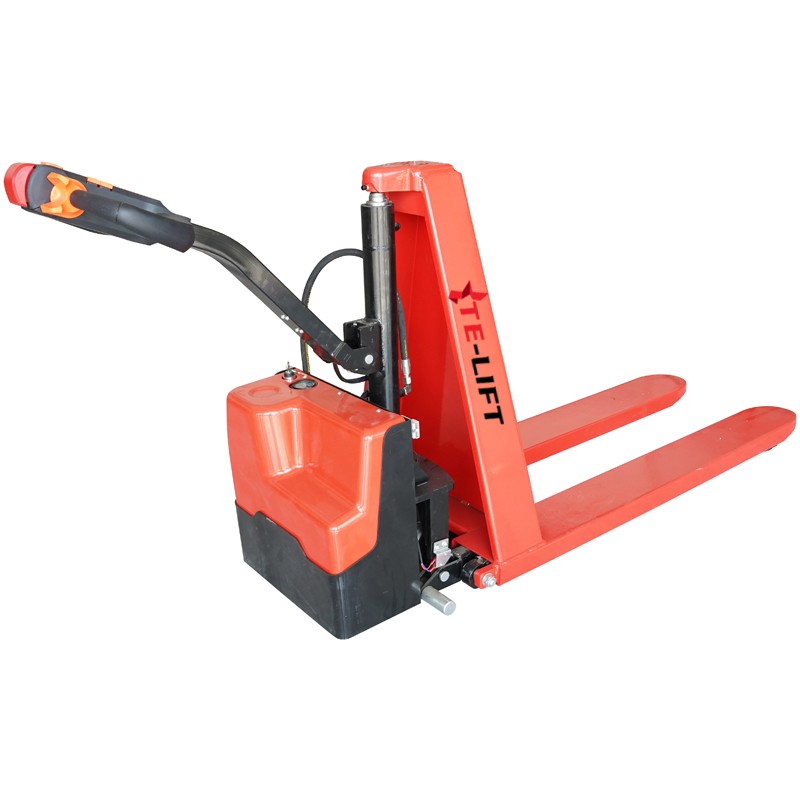

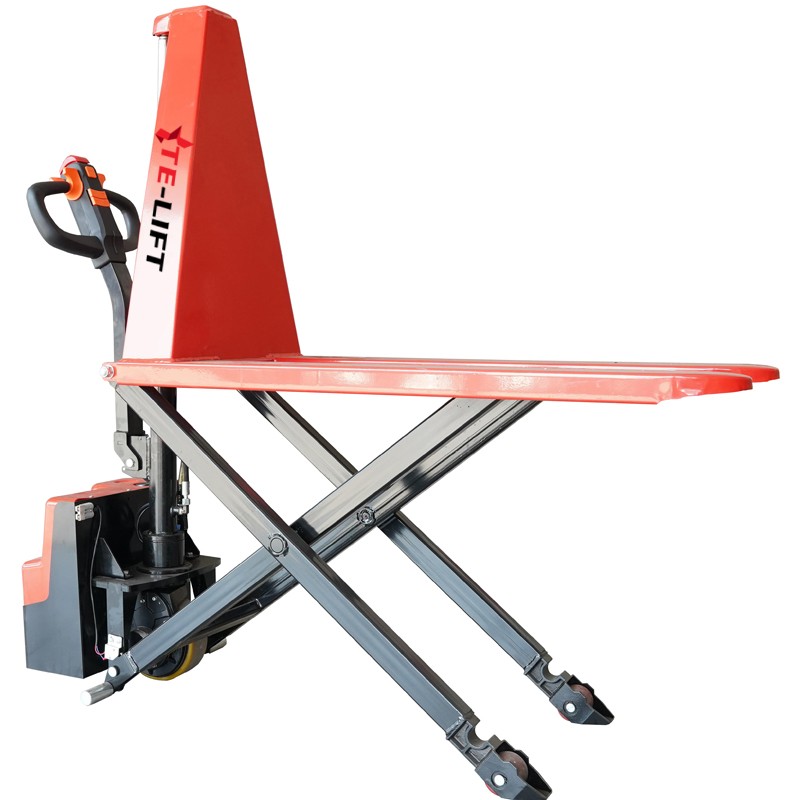

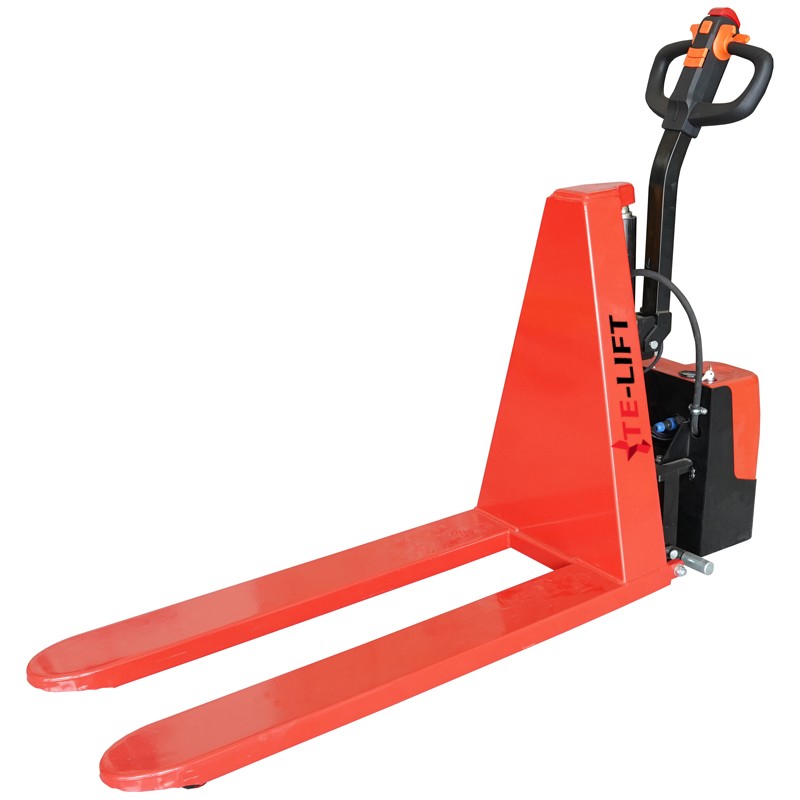

Self-propelled Electric High Lift Scissor Pallet Truck
JEF series
■ Ideally used for loading and unloading at the proper work position.
■ Power driving and lifting, more efficient and labor-saving.
■ With tortoise speed function.
■ It's equipped with safty valve to avoid overload condition.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ Equped with polyurethane loading roller and drive wheel to protect your floor.
■ The truck will be braked automatically when lift to the maximum height.
■ Key switch, emergency stop button and coulombmeter are easy to be accessed.
■ With built-out charger.
| Model | JEF1054 | JEF1068 | JEF1554 | JEF1568 | |
| Capacity | (kg) | 1000 | 1500 | ||
| Min. Fork Height | (mm) | 85 | |||
| Max. Fork Height | (mm) | 800 | |||
| Overall Forks Width | (mm) | 550 | 685 | 550 | 685 |
| Individual Fork Width | (mm) | 160 | |||
| Fork Length | (mm) | 1150 | |||
| Front Wheel Size | (mm) | Ø74x50 | |||
| Drive Wheel Size | (mm) | Ø210x50 | |||
| Balance Wheel Size | (mm) | Ø40x25 | |||
| Max. Drive Speed load/unload | (km/h) | 4/5 | |||
| Max. Gradeability load/unload | (%) | 4/6 | |||
| Drive Motor | (kw) | 0.75 | |||
| Lifting Motor | (kw) | 0.8 | |||
| Battery | (V/Ah) | 2x12/36 | |||
| Net Weight | (kg) | 150 | 160 | 165 | 170 |
