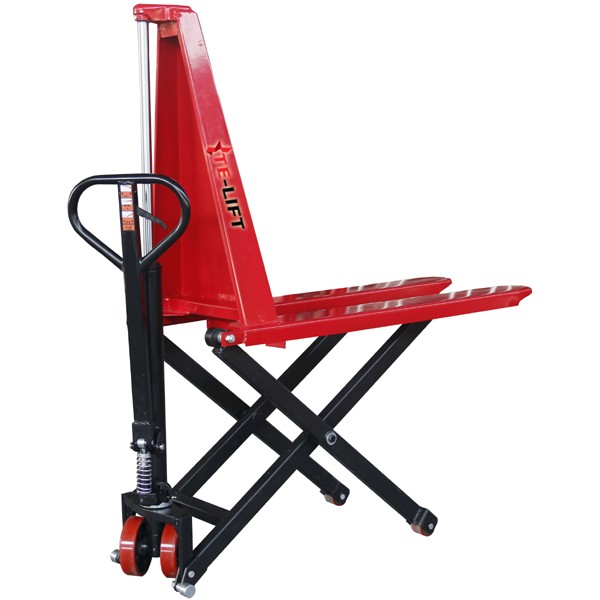

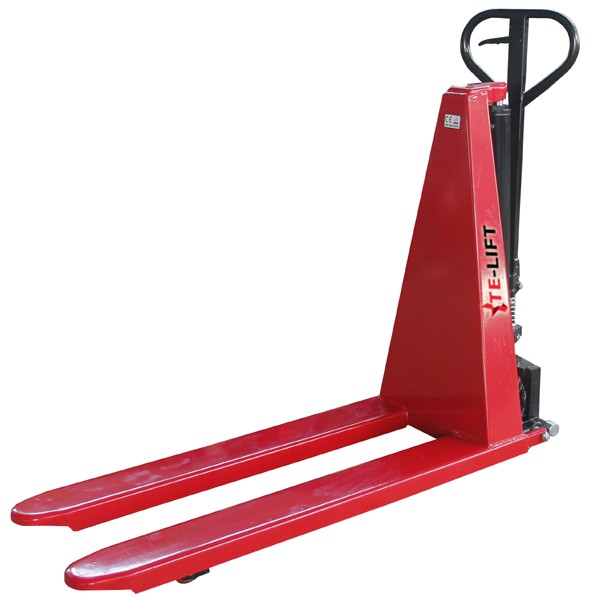

Manual Hydraulic Scissor Lift Pallet Trucks High Lift Pallet Jacks

Description

Manual Hydraulic Scissor Lift Pallet Trucks High Lift Pallet Jacks
HC-M series

■ Scissor lift pallet truck design to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets or containers of materials.

■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds.

■ The enclosed fork tips and reinforced fork frames ensures long service life.

■ Equped with polyurethane loading roller and steering wheels to protect your floor.

■ The truck will be braked automatically when lift to the maximum height.

Model		HC1054M	HC1068M	HC1554M	HC1568M
Capacity	(kg)	1000		1500
Min. Fork Height	(mm)	85
Max. Fork Height	(mm)	800
Overall Forks Width	(mm)	540	685	540	685
Individual Fork Width	(mm)	160
Fork Length	(mm)	1150
Front Wheel Size	(mm)	Ø74x50
Steering Wheel Size	(mm)	Ø180x50
Overall Length	(mm)	1540
Overall Width	(mm)	540	685	540	685
Overall Height	(mm)	1235
Net Weight	(kg)	123	128	133	143
