Description

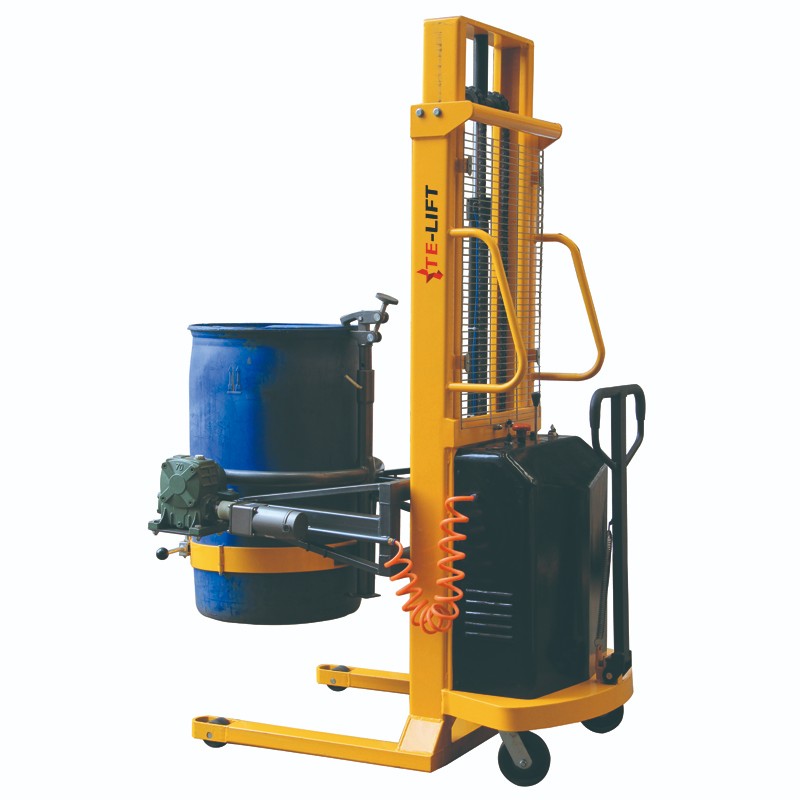

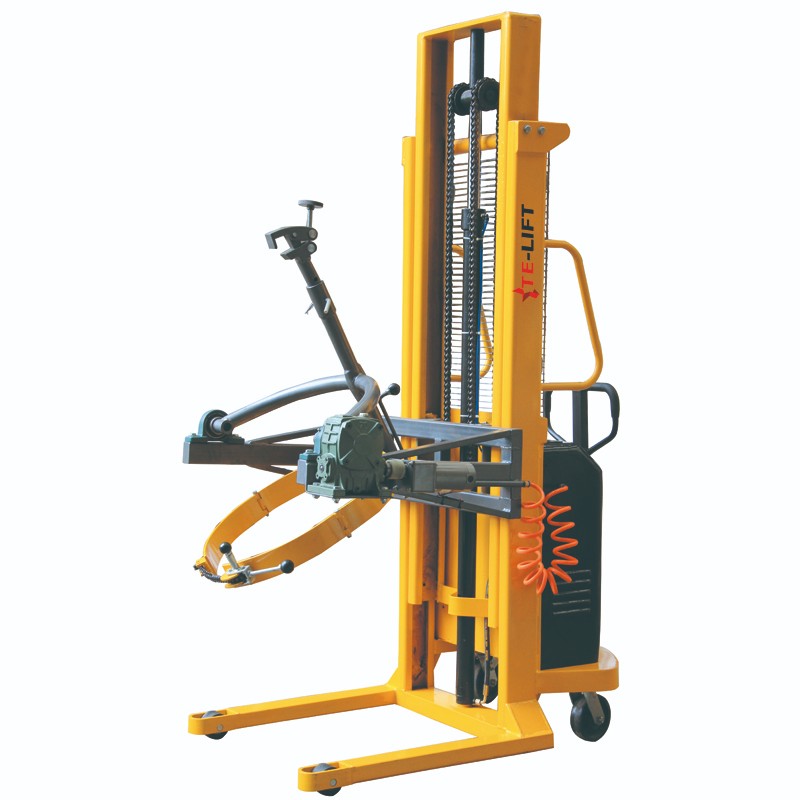

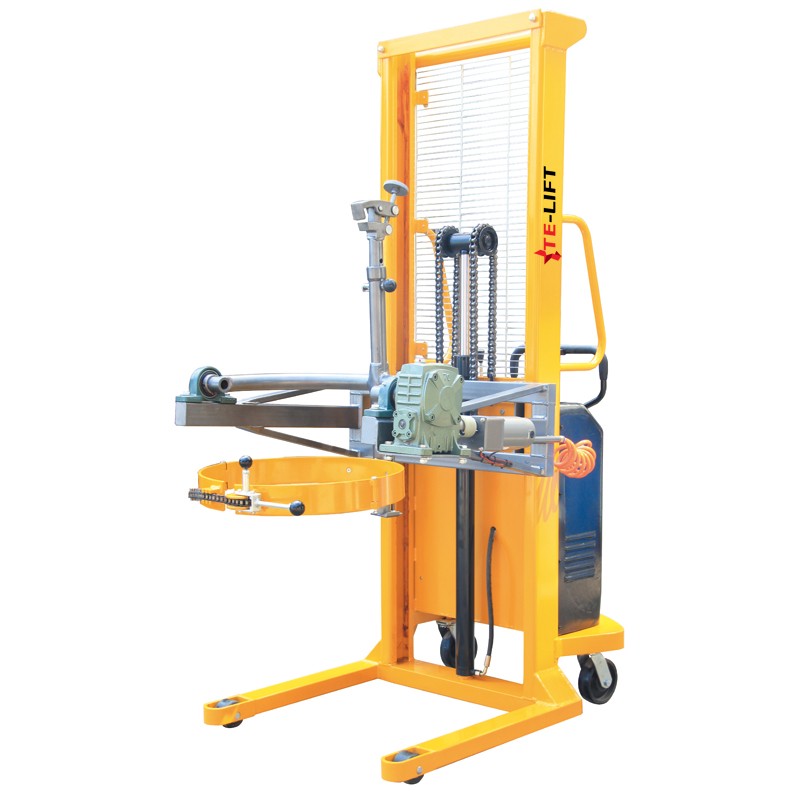

Semi-electric Drum Dumper Oil Drum Dumping Machine
Model DA520E and DA450E
■ Labor saving and high efficiency, this model is suitable for lifting, transporting, stacking and drumping drums in chemical factories, food processing workshop and warehouse.
■ DA520E:Capacity 520Kg and Lifitng height 1500mm.
■ DA450E:Capacity 450Kg and Lifitng height 2300mm.
■ With electric lifting and electric dumping function.
■ With strong C shaped steel mast.
■ Swivel rear castors with foot brakes.
■ Combined Eagle-grip and Anchor ear structure is suitable for 55gallon steel drums and plastic drums.

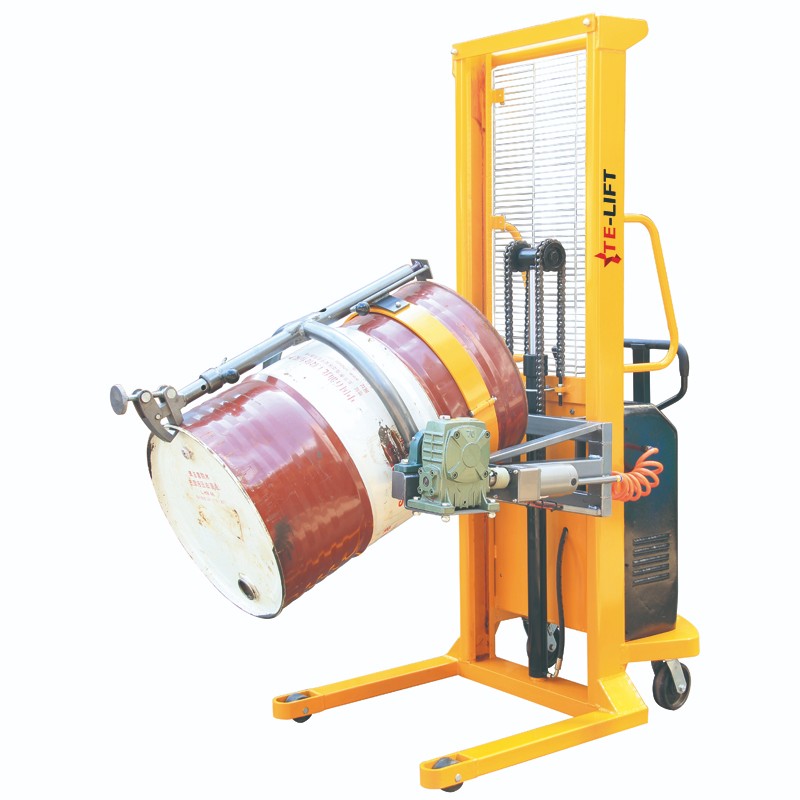

■ Oil drum can be rotated 180degrees and kept at any angle.
■ DA450E is with two-stage vertical-lift drum pourer allow you to pour a drum up to 2300mm height.
| Model | DA520E | DA450E | |
| Capacity | (kg) | 520 | 450 |
| Max. Lifting Height | (mm) | 1500 | 2300 |
| Acceptable Drum Type | steel, plastic, fiber | ||
| Lifting Speed | (mm/s) | 120 | |
| Rotating Speed of Tilting | 180°/30s | ||
| Load Rollers Size Dia.xWidth | (mm) | Ø80x55 | |
| Steering Wheel Size Dia.xWidth | (mm) | Ø150x50 | |
| Width Between Legs (Inner/Out) | (mm) | 660/820 | |
| Leg Length | (mm) | 740 | |
| Turning Radius | (mm) | 1620 | |
| Lifting Motor | (kw) | 1.6 | |
| Battery | (v/ah) | 12/120 | |

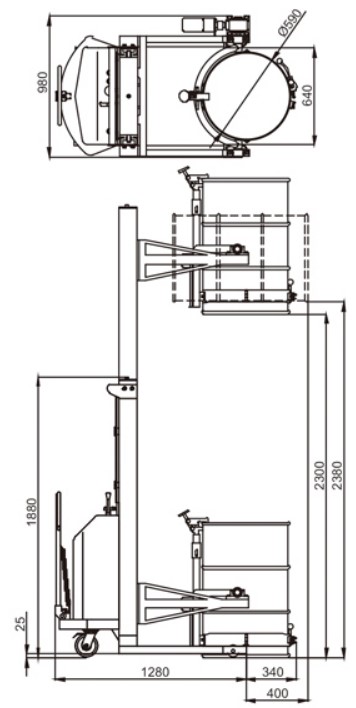

| Overall Size LxWxH | (mm) | 1620x980x2065 | 1620x980x1880 |
| Net Weight | (kg) | 280 | 354 |
