Fork Mounted Type Drum Grab

Product Item：DG10, DG20, DG30, DG40, DG45, DG50, DG60

Capacity 680kg, 450kg

Suit for Drum Size 30 or 55gallon

Suit for Drum Type Steel/Plastic/Poly Drum

Fork Pockets 140×50mm, 175×55mm, 135×40mm

Description

Fork Mounted Type Drum Grab

DG series

■ Fork mounted automatically!

■ Suitable for steel drums, plastic drums, and poly drums.

■ Some models for single drums, some models for double drums.

■ Easily and quickly lift drums without hyraulic or electric connections.

■ Simply slip onto forks and tighten hand screws.

■ Heavy duty steel construction.

■ Lifts, transports and deposits drums without leaving the driving position.

■ Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

Model	Suit for Drum Type	Capacity(per drum)	Suit for Drum Size	Fork Pockets	Net Weight
		(kg)	(gallon)	(mm)	(kg)
DG10	Single Steel Drum	680	55	140×50	55

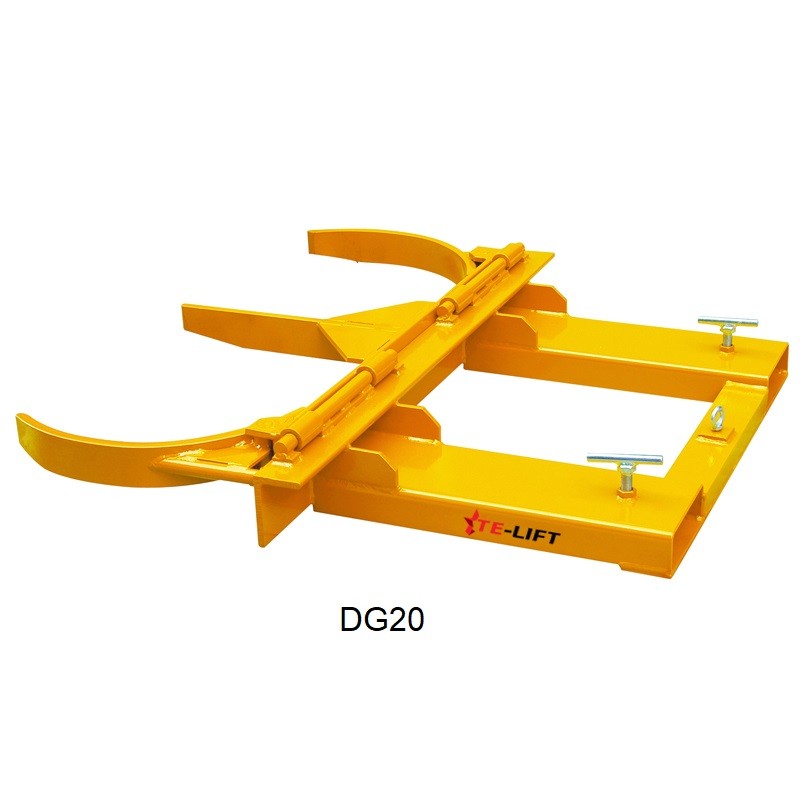

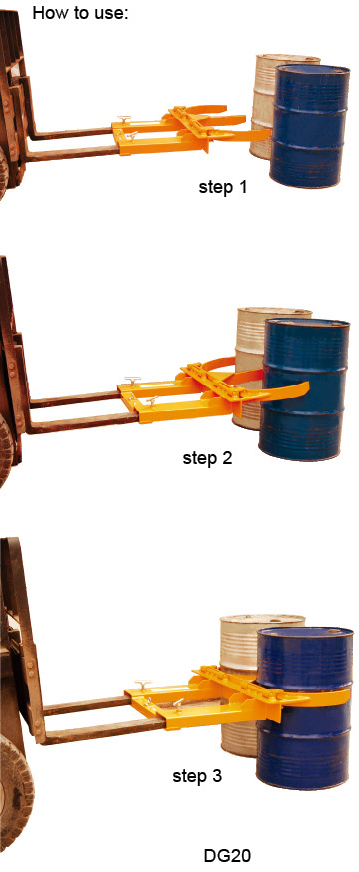

DG20	Double Steel Drum	680	55	175×55	90
DG30	Adjustable, Single Steel Drum	680	30 or 55	140×50	52

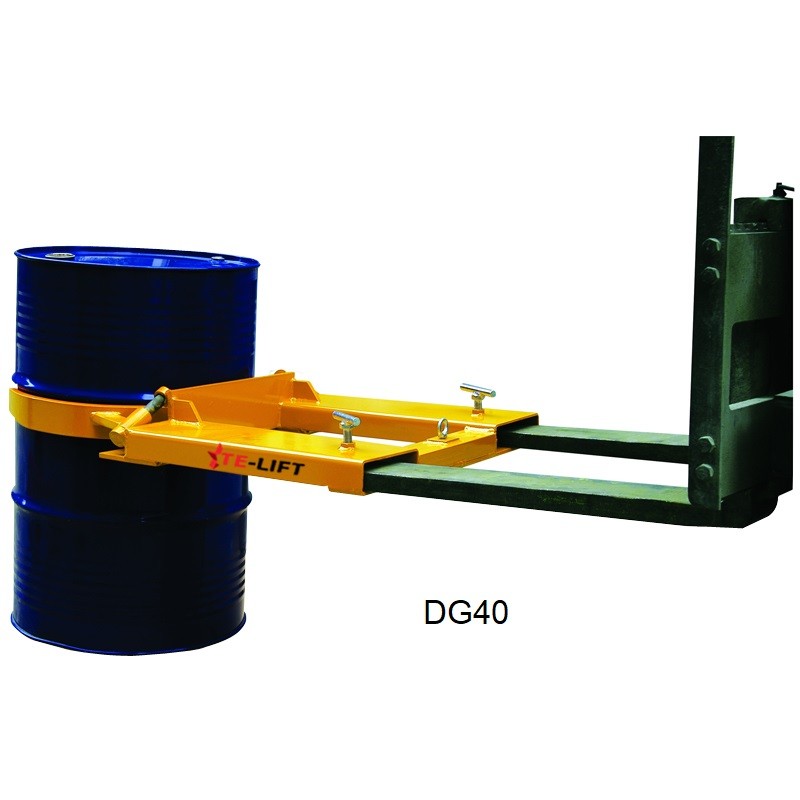

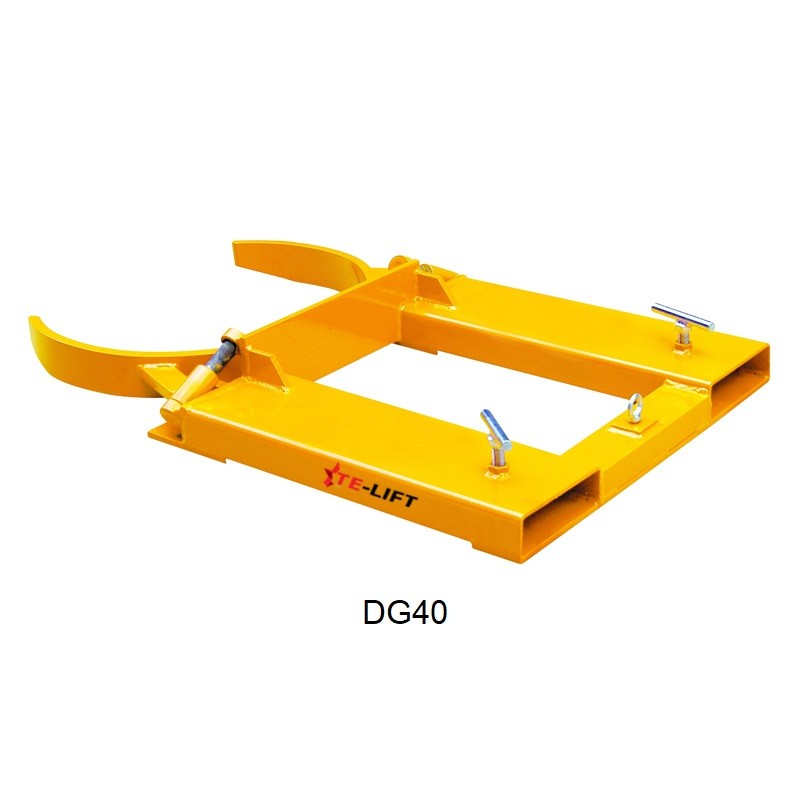

DG40	Adjustable, Steel/Plastic Drum	680	30 or 55	175×55	57
DG45	Adjustable, Double Steel Drum	680	30 or 55	175×55	88

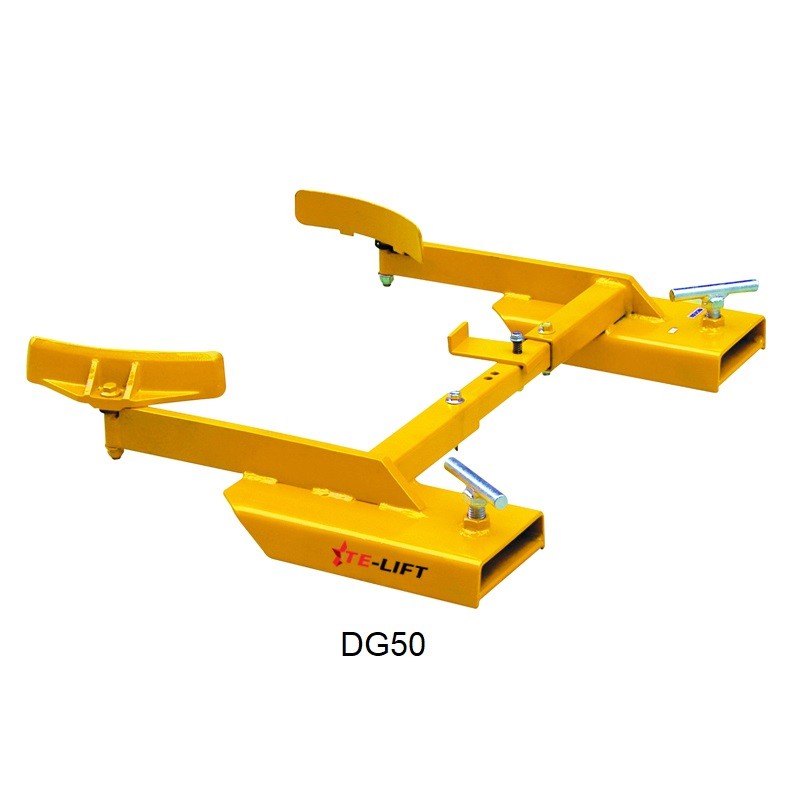

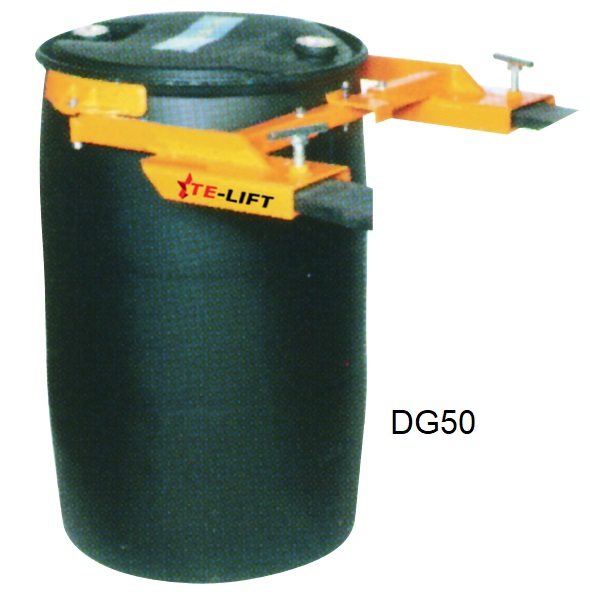

DG50	Adjustable, Single Poly Drum	450	30 or 55	135×40	19
DG60	Adjustable, Single Poly Drum	450	35 or 55	135×40	32
