Description

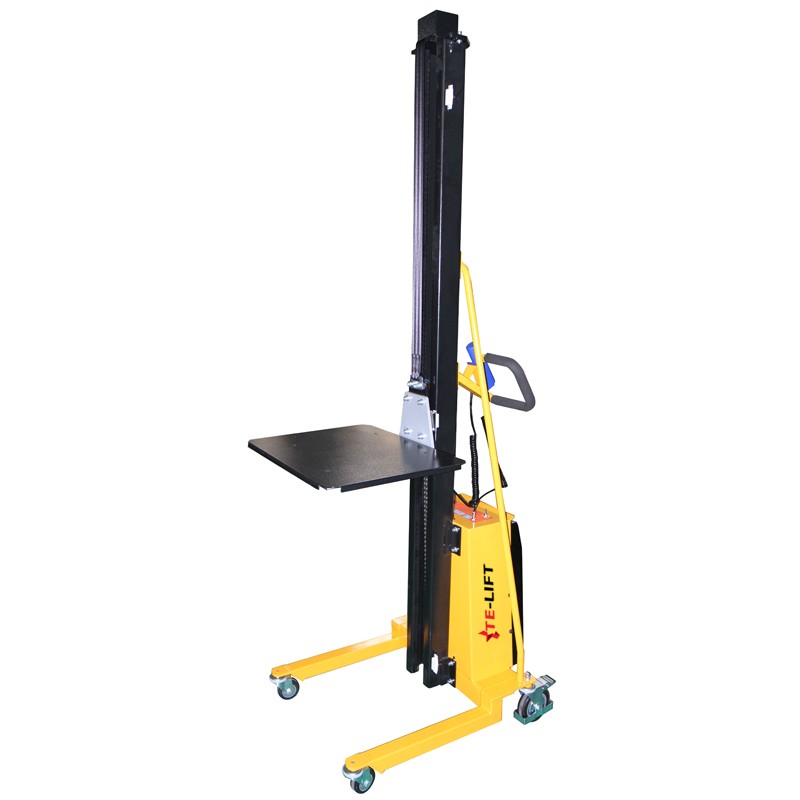

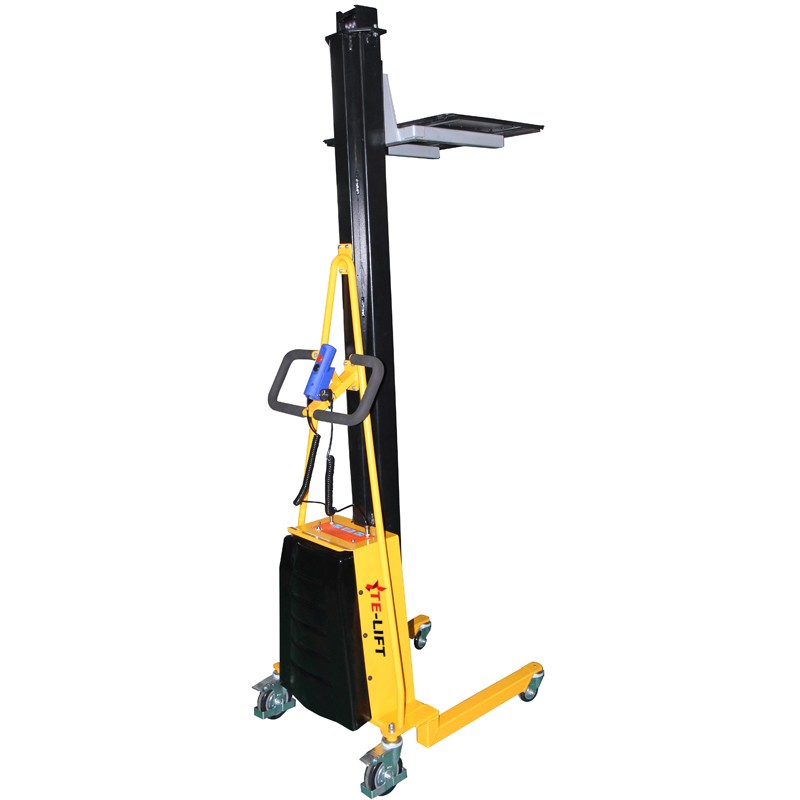

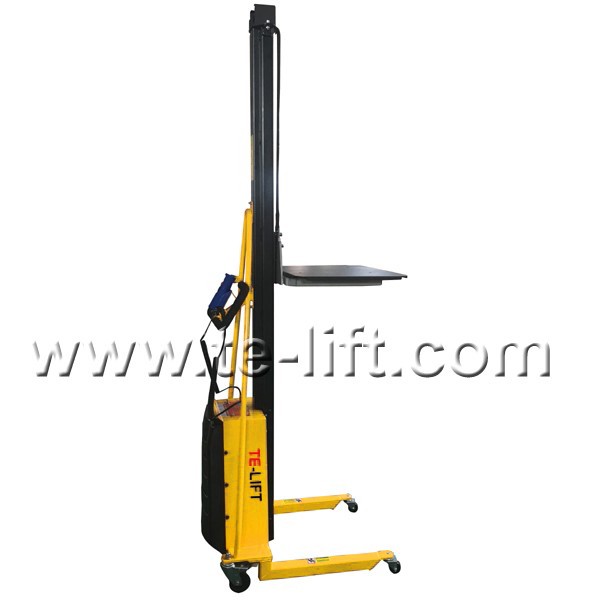

Electric Compact Work Positioners Power Platform Lifters
E200, E250 and E300
■ Steel structure mono-mast, offer a good operation view, and maximum 300kg capacity.
■ A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
■ Compact size with electric lifting, ideal for use in narrow aisles and confined spaces.
■ Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outless, etc...
■ Automatic electronic overload protection system ensures safety.
■ Maintenance free and sealed batteries, automatic charger.

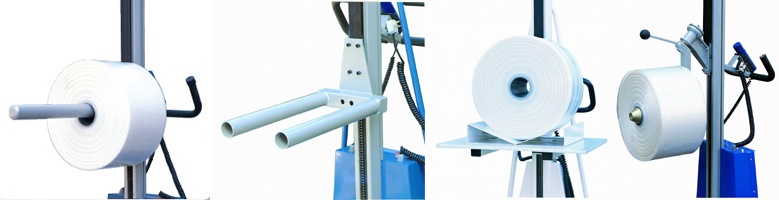

■ Quick change attachment options available, and customized attachment can be developed.
■ Conforms to EN1757 and EN 1175-1.
| Model | E200 | E250 | E300 | |
| Max. Capacity | (kg) | 200 | 250 | 300 |
| Load Centre | (mm) | 200 | ||
| Max. Platform Height | (mm) | 1500/1800 | ||
| Min. Platform Height | (mm) | 130 | ||
| Leg Height | (mm) | 115 | ||
| Platform Size D×W | (mm) | 475×605(Steel) | ||
| Overall Size L×W×H | (mm) | 870×740×1920/2220 | ||
| Front Wheel Diameter | (mm) | Φ75(PU) | ||
| Rear Wheel Diameter | (mm) | Φ125(PU) | ||
| Power Unit | (V/W) | 24/300 | 24/300 | 24/500 |
| Battery | (V/Ah) | 2×12/20 | ||
| Net Weight | (kg) | 85 | 90 | 105 |
