Description

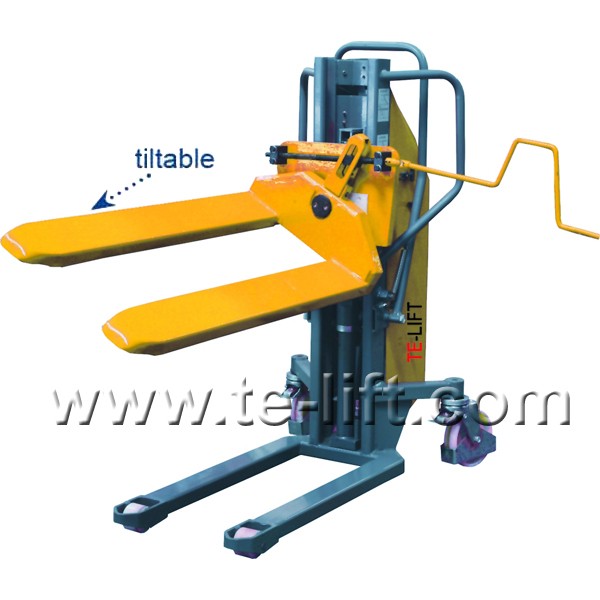

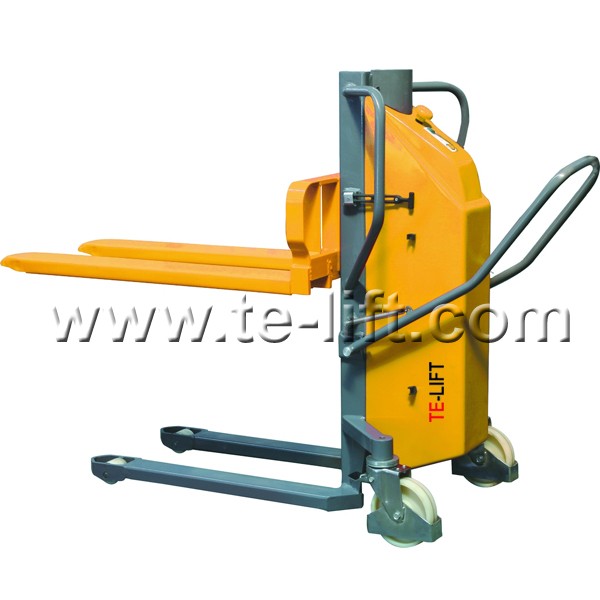

Semi-Electric Hydraulic Pallet Tilting Truck Lateral Pallet Tilter
Model ELT0809 and ESU0809
■ ELT0809 has tilting device.
■ Electric lifting, manual moving, manual tilting, very compact for operation.
■ Designed to give the user an ergonomically correct position to reach loads easily without the necessary of bending down or stretching up.
■ Combination of pallet lifting and pallet tilting.
■ Forks can be titled up to 20° both left and right sides by thread.
■ With big handles in mast, easy to push or pull.
■ Supplied as standard with packing brake and foot protectors.
■ Conforms to EN1757-1.

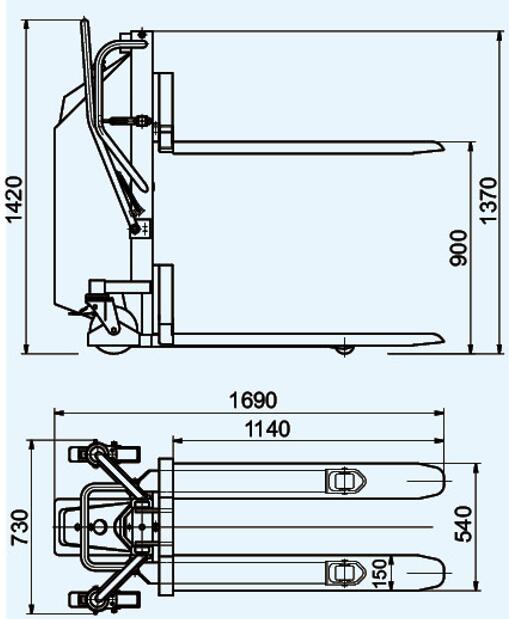

| Model | ELT0809 | ESU0809 | |
| Type | with tilting | without tilting | |
| Capacity | (kg) | 800 | |
| Lifting height | (mm) | 900 | |
| Min. Fork Height | (mm) | 87 | |
| Fork Length | (mm) | 1140 | |
| Overall Forks Width | (mm) | 540 | |
| Individual Fork Width | (mm) | 150 | |
| Forks Tilting Angle | (°) | 20 | / |
| Overall Length | (mm) | 1690 | |
| Overall Width | (mm) | 730 | |
| Overall Height | (mm) | 1420 | |
| Ground Clearance | (mm) | 30 | |
| Battery | (V/Ah) | 12/60 | |
| Power Pack | (kw) | 0.8 | |
| Net Weight | (kg) | 271 | |
