Description

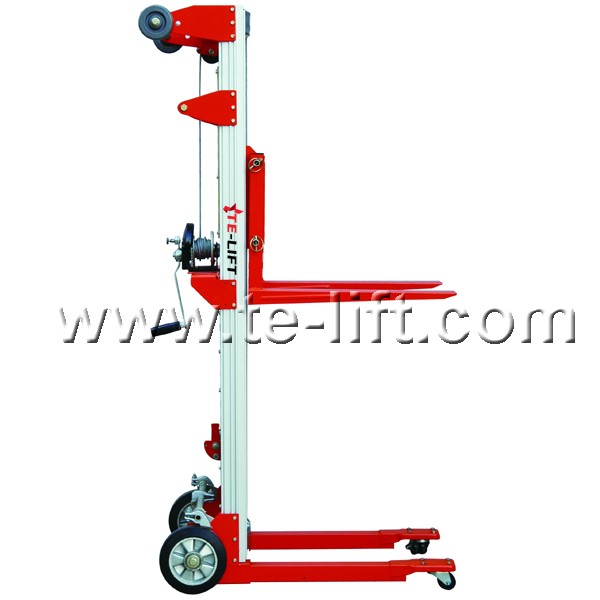

Aluminium Winch Fork Lifter Aluminum Hand Winch Stacker
STD series
■ Forks down for lifting goods, forks up for supporting.
■ Easy disassembling and assembling.
■ Can fit into smaller space when disassembled.

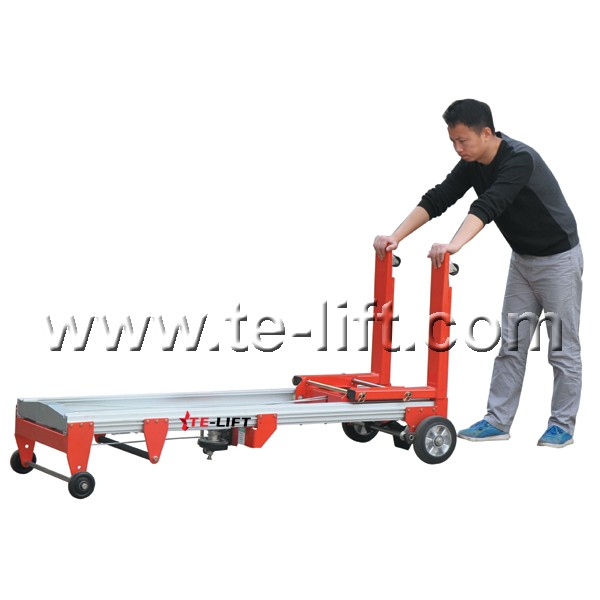

■ Equipped with wheels on the mast also allow it to be used as a trolley.
■ Light aluminium mast, easy for handling.
■ Lift by winch, no any oil leakage risk.
■ The best brake function with special design.
■ Option platform is available.
| Model | Load Cap. | Lifting Height(mm) | Overall Dim.(mm) | Load Center(mm) | Net Weight | ||||
| (kg) | (lb) | Forks Up(mm) | Forks Down(mm) | L(mm) | W(mm) | H(mm) | (kg) | ||
| STD-181 | 181 | 400 | 3000 | 2500 | 876 | 610 | 1700 | 254 | 60 |
| STD-227 | 227 | 500 | 1800 | 1200 | 876 | 610 | 1700 | 254 | 51 |
