Hydraulic Pallet Tilting Truck Pallet Tilter
LT10M and LT10E

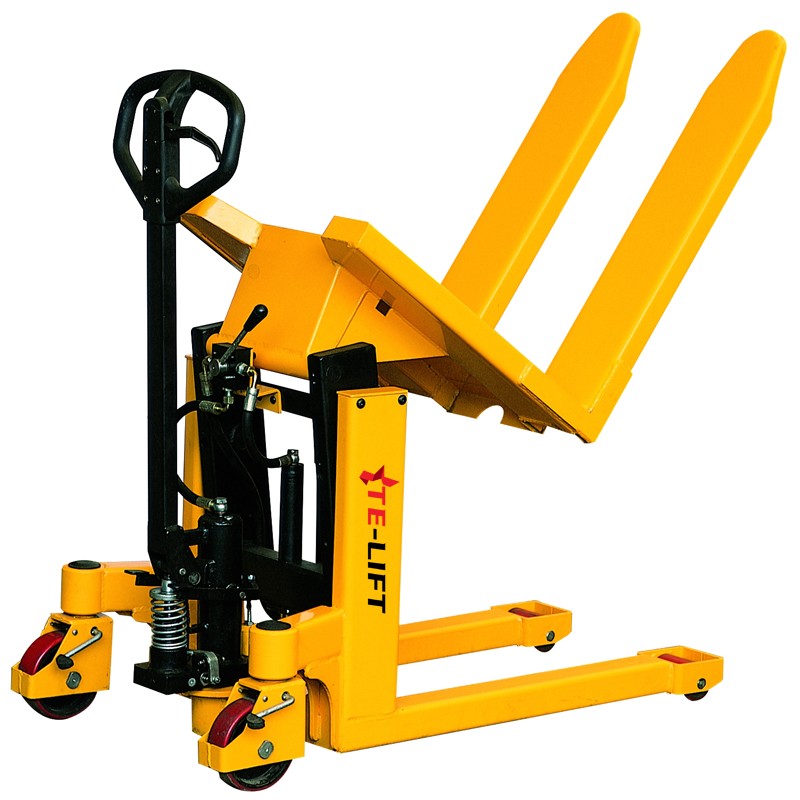

■ LT10M is manual moving, manual hydraulic lifting and manual hydraulic tilting.

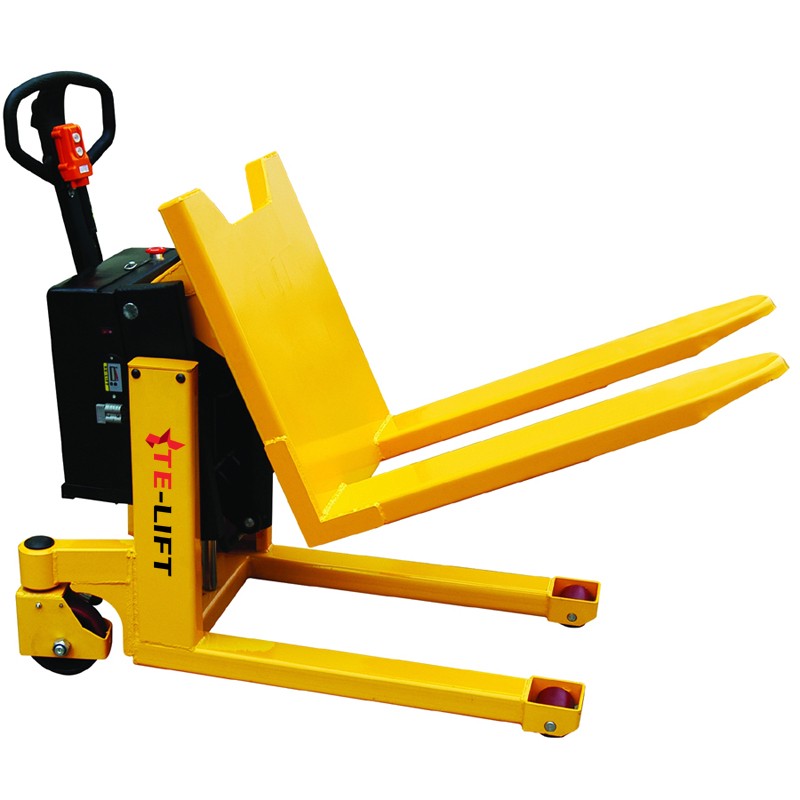

■ LT10E is manual moving, electric hydraulic lifting and electric hydraulic tilting.
■ Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up.
■ Handle of LT10E can be turned and locked in position away from the work area.
■ Applies to both sitting and standing positions.
■ Forks can be tilted up to 90degree.
■ Both are supplied as standard with parking brakes and foot protectors.
■ Conforms to EN1757-1 and EN1175.

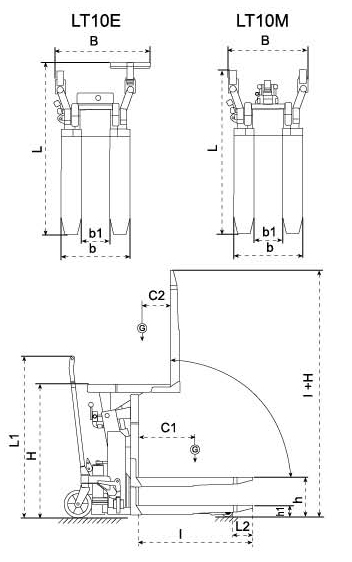

| Model | LT10M | LT10E | ||
| Type | Manual Lifting/Tilting | Electric Lifting/Tilting | ||
| Capacity | (kg) | 1000 | ||
| Lifting Height, Vertical | h | (mm) | 285 | |
| Min. Fork Height | h1 | (mm) | 85 | |
| Fork Length | l | (mm) | 800 | |
| Handle Height | L1 | (mm) | 1138 | |
| Overall Forks Width | b | (mm) | 560 | |
| Overall Width | B | (mm) | 638 | |
| Overall Length | L | (mm) | 1325 | 1410 |
| Overall Height, Raised | H | (mm) | 950 | |
| Overall Height, Lowered | H | (mm) | 750 | |
| Power Uint | (kw) | -- | 0.8 | |
| Net Weight | (kg) | 178 | 185 | |
