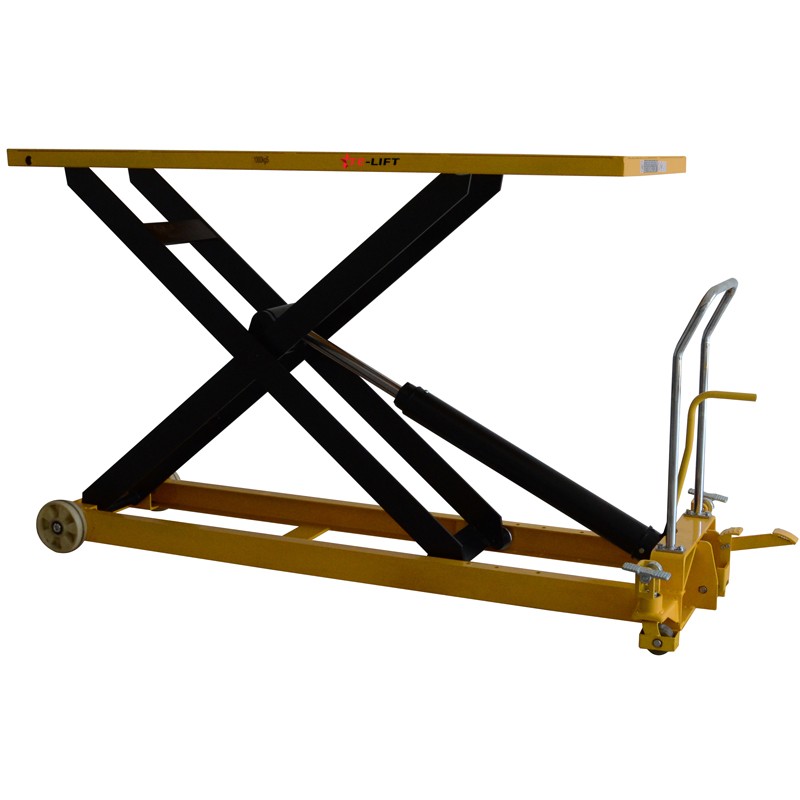

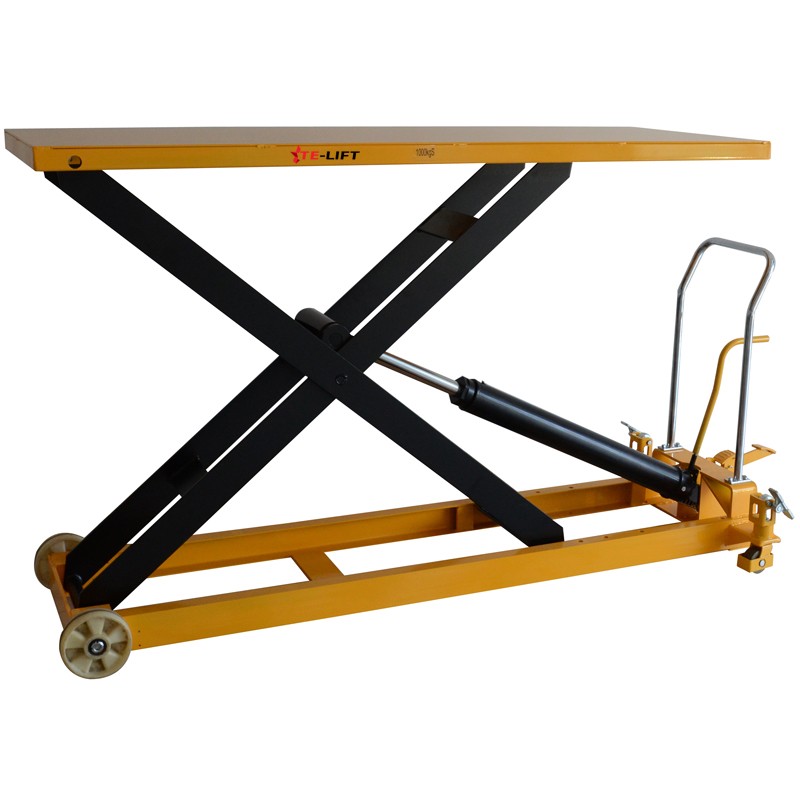

Big Size Lift Table Truck Large Platform Lift Scissor Cart

Product Item：TG50, TG100

Capacity 500kg, 1000kg

Table size 1600x810mm, 2035x750mm

Max. Lifting height 915mm, 1360mm

Foot pedal operated hydraulic lifting

Large Platform Lift Scissor Cart Big Size Lift Table Truck

TG series

■ Super big platform size for special application.

■ Foot pedal operated hydraulic lifting.

■ Provide a suitable working position or lifting height.

■ With chrome plated handle.

■ Special brake design for TG100.

■ Option protection board on handle.

Model		TG50	TG100
Capacity	(kg)	500	1000
Table Size	(mm)	1600x810	2035x750
Min. Table Height	(mm)	290	360
Max. Table Height	(mm)	915	1360
Handle Height from Ground	(mm)	975	1000
Fixed Wheel Size	(mm)	125x40	180x50
Swivel Wheel Size	(mm)	125x40	80x40
Foot Pedal Cycles to Max. Height	(times)	55	200
Net Weight	(kg)	154	198
