Description

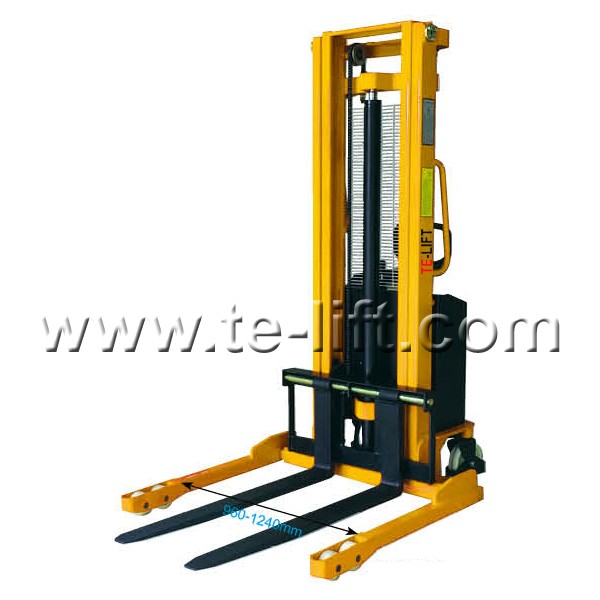

Semi-Electric Straddle Legs Hydraulic Pallet Stackers
EPM-W series
■ Electric lifting and manual moving, can be used as a economic forklift truck for stacking pallets.
■ Precise lifting and lowering via hand lever.
■ With high quality lift pump station.
■ Integrated 100AH maintenance free battery.
■ Forged adjustable width forks for more applications.
■ Conforms to EN1757-2.

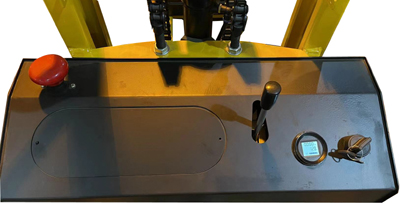

■ With key switch, emergency button, and coulombmeter in control panel.
| Model | EPM1016W | EPM1025W | EPM1030W | EPM1033W | |
| EPM1516W | EPM1525W | EPM1530W | EPM1533W | ||
| Capacity | (kg) | 1000 | |||
| 1500 | |||||
| Lowered Fork Height | (mm) | 75 | |||
| Max.Lifting Height | (mm) | 1600 | 2500 | 3000 | 3300 |
| Fork Length | (mm) | 1150 | |||
| Adjustable Overall Forks Width | (mm) | 210-800 | |||
| Load Center | (mm) | 600 | |||
| Overall Length | (mm) | 1770 | |||
| Overall Width | (mm) | 1080-1360 | |||
| Overall Height | (mm) | 2020 | 1770 | 2020 | 2170 |
| Front Wheel Diameter | (mm) | 100 | |||
| Rear Wheel Diameter | (mm) | 200 | |||
| Lift Motor | (kw) | 1.6 | |||
| Battery Capacity | (V/Ah) | 12/100 | |||
| Net Weight | (kg) | 366 | 448 | 468 | 480 |
| 390 | 472 | 493 | 513 | ||
