  5. Pedestrian Full Electric Pallet Truck 2T
  • Pedestrian Full Electric Pallet Truck 2Tonne Capacity
  • Pedestrian Full Electric Pallet Truck 2Tonne Capacity
Pedestrian Full Electric Pallet Truck 2Tonne Capacity Pedestrian Full Electric Pallet Truck 2Tonne Capacity

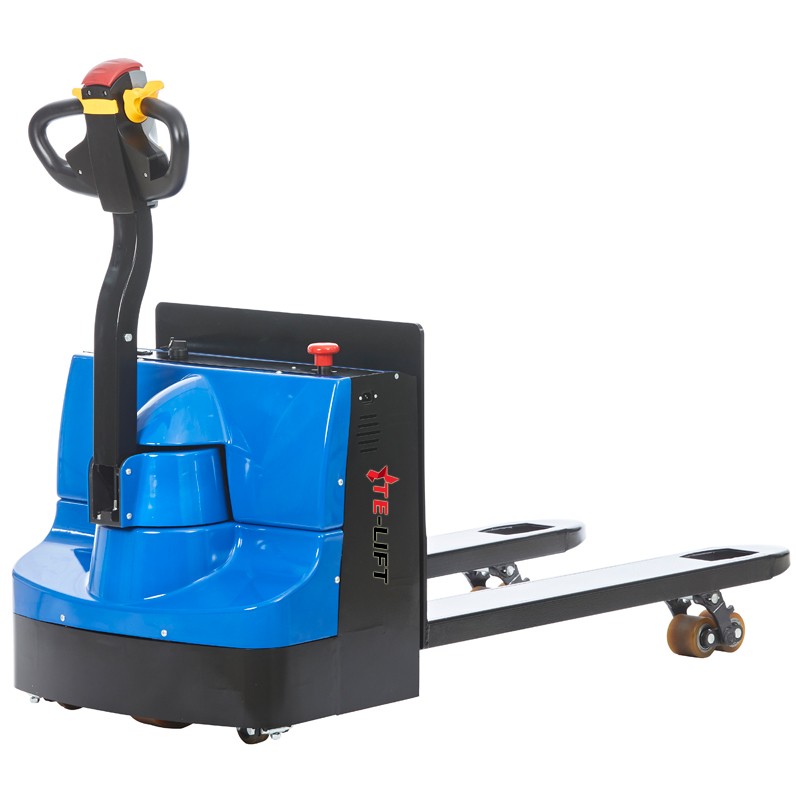

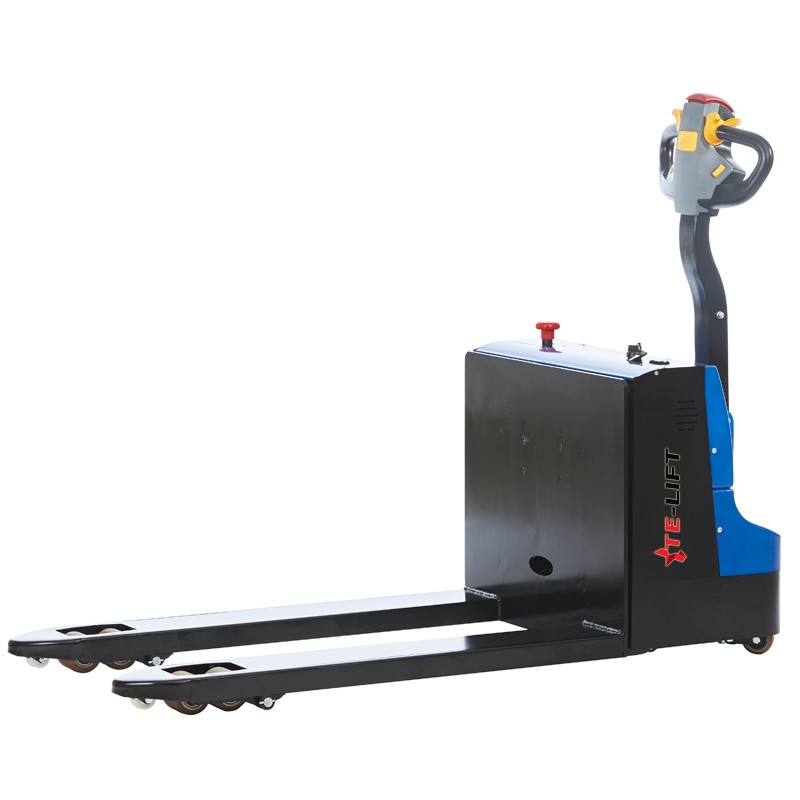

Pedestrian Full Electric Pallet Truck 2Tonne Capacity

  • Product Item:LPT20E
  • Capacity 2000kg
  • Full electric drive and lift
  • With Lithium Battery 48V/30AH
  • 3hours quick charge
  • Lithium battery 48V/30Ah and built-in quick charger  , fully charged needs only 3hours
    Inquiry Send Email

    Description

    Pedestrian Full Electric Pallet Jack 2Tonne Capacity

    Model LPT20E


    ■ Strong truck body, full electric drive and lift, increase productivity.

    ■ This functional approach minimizes manual labor and maximizes efficiency when moving products and goods.

    ■ Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle.

    ■ This truck is a full electric truck designed for horizontal pallet movement in medium intensity applications.

    ■ Lithium battery 48V/30Ah and built-in quick charger, fully charged needs only 3hours.

    ■ Multi-function draw bar, with acceleration swith, lift/descend buttons, horn button, reversing switch, and tortoise speed button.

    ■ Keyswitch, voltameter and emergency stop button easy to access.

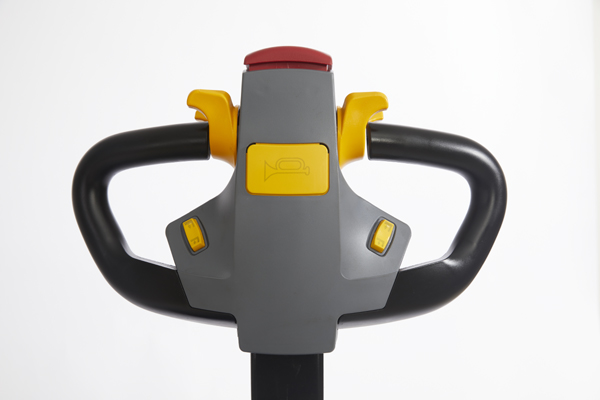

    ■ Multi-function draw bar, with acceleration swith, lift/descend buttons, and horn button

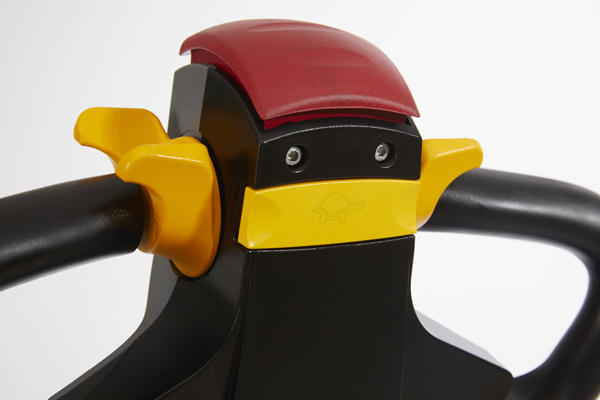

    ■ Multi-function draw bar, with reversing switch, and Tortoise speed button

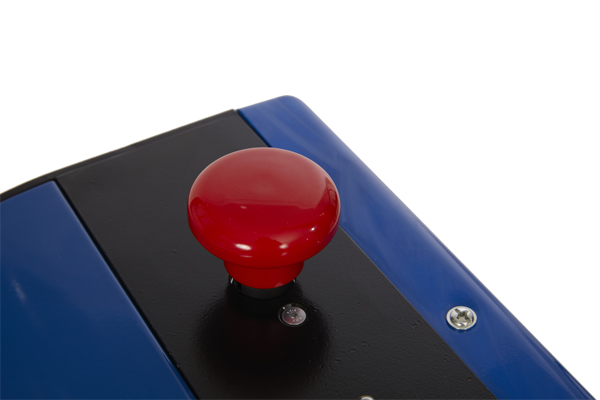

    ■ Emergency stop button

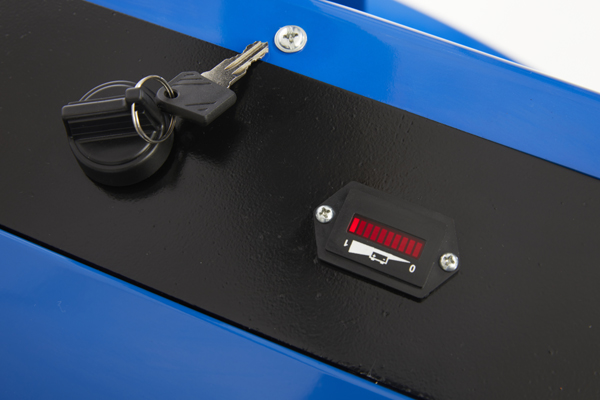

    ■ Keyswitch and Voltameter

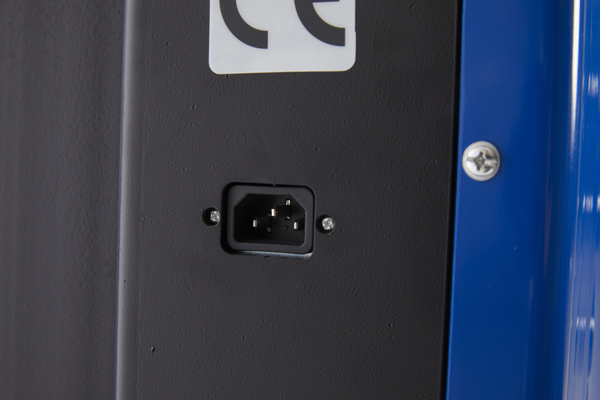

    ■ Built-in quick charger port


    Model   LPT20E
    Operate Type   Pedestrian
    Capacity (kg) 2000
    Load Centre (mm) 600
    Min. Fork Height (mm) 85
    Max. Fork Height (mm) 190
    Overall Forks Width (mm) 560/680
    Fork Length (mm) 1150/1220
    Fork Thinkness (mm) 54
    Individual Fork Width (mm) 160
    Overall Length (mm) 1630
    Overall Width (mm) 680
    Turning Radius (mm) 1440
    Max. Driving Speed with/without Loading (km/h) 2.5/3
    Gradeability (%) 0.7
    Wheel Material   Polyurethane
    Drive Wheel Diameter (mm) 210
    Load Roller Diameter (mm) 80
    Balance Wheel Diameter (mm) 70
    Drive Motor (kw) 0.75
    Lifting Motor (kw) 0.8
    Battery Capacity (V/Ah) 48/30
    Net Weight (kg) 335
