Description

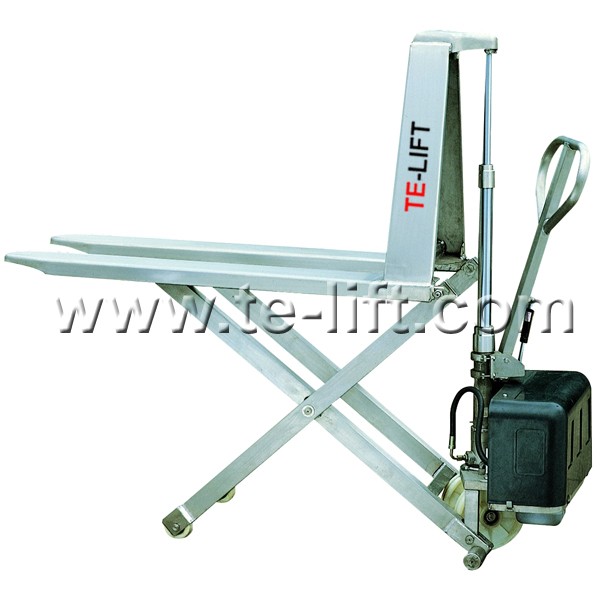

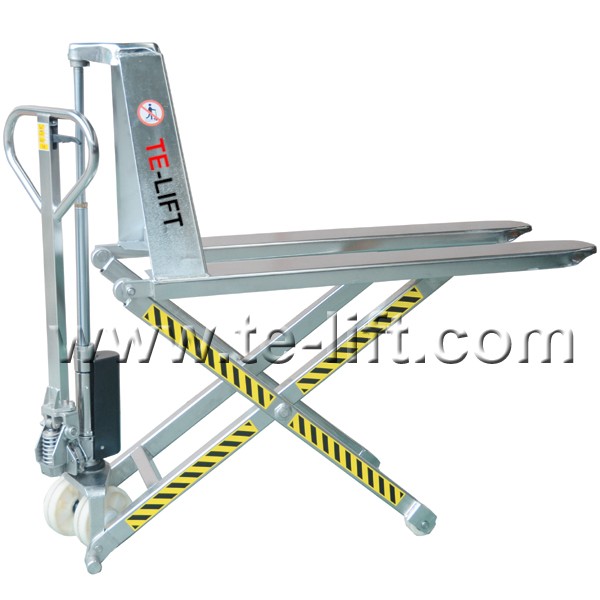

Stainless Steel Hydraulic High Lift Pallet Jacks
HS series
■ For using in meat and other food industry, dairy canning and all areas where corrosive acids and saline solutions are used.
■ Complete stainless steel for all parts, including hydraulic pump, handle, forks, scissors, all bearings etc.
■ Material: Grade 304 standard, Grade 316 forks as option.
■ Double-stage cylinder makes the lower peak, more compact.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ The truck will be braked automatically when lift to the maximum height.
■ Conforms to EN1757-4.
| Model | HS540M | HS680M | HS540E | HS680E | |
| Lifting Type | Manual | Electric | |||
| Capacity | (kg) | 1000 | |||
| Max. Fork Height | (mm) | 800 | |||
| Min. Fork Height | (mm) | 85 | |||
| Overall Forks Width | (mm) | 540 | 680 | 540 | 680 |
| Individual Fork Width | (mm) | 160 | |||
| Fork Length | (mm) | 1150 | |||
| Battery | (V/Ah) | \ | 12/54 | ||
| Net Weight | (kg) | 116 | 126 | 144 | 149 |
