Description

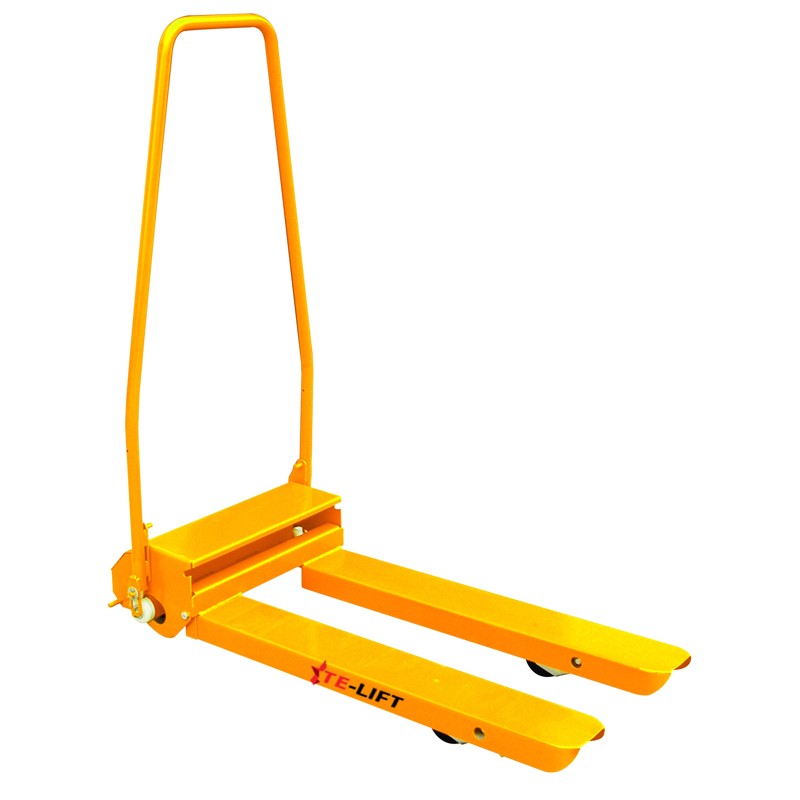

Mechanic Pallet Lifter Mechanic Pallet Truck
Model MX0608 and MX0610
■ Ideal for grocery stores, all kinds of small stores, pharmaceutical industry, drugstores, offices, schools and hospitals etc.
■ To substitute hydraulic pallet truck when under 300kg load.

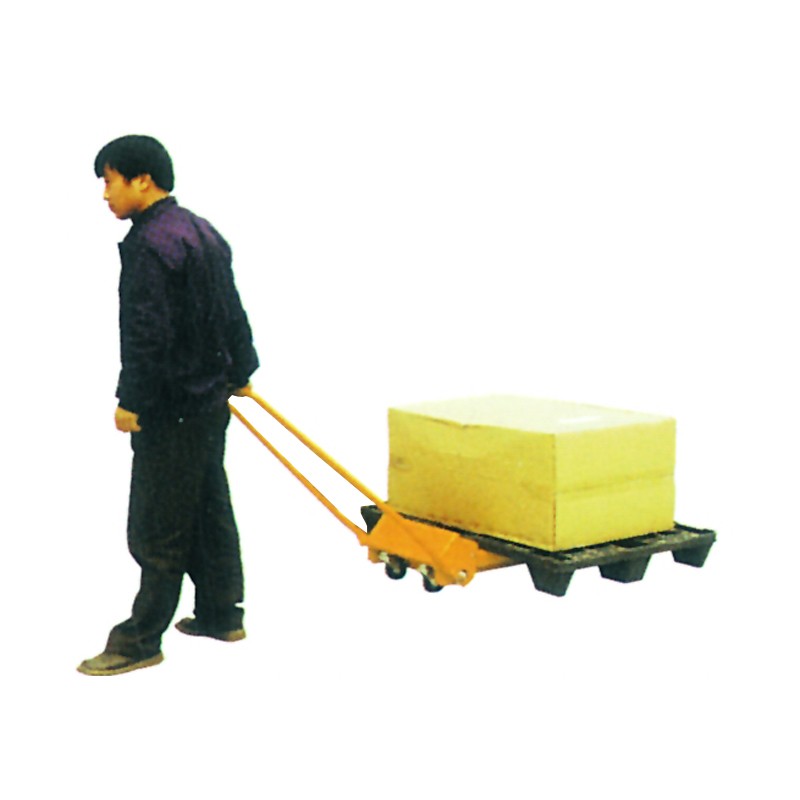

■ Pallet can be lifted by pulling the handle backwards, more efficient.

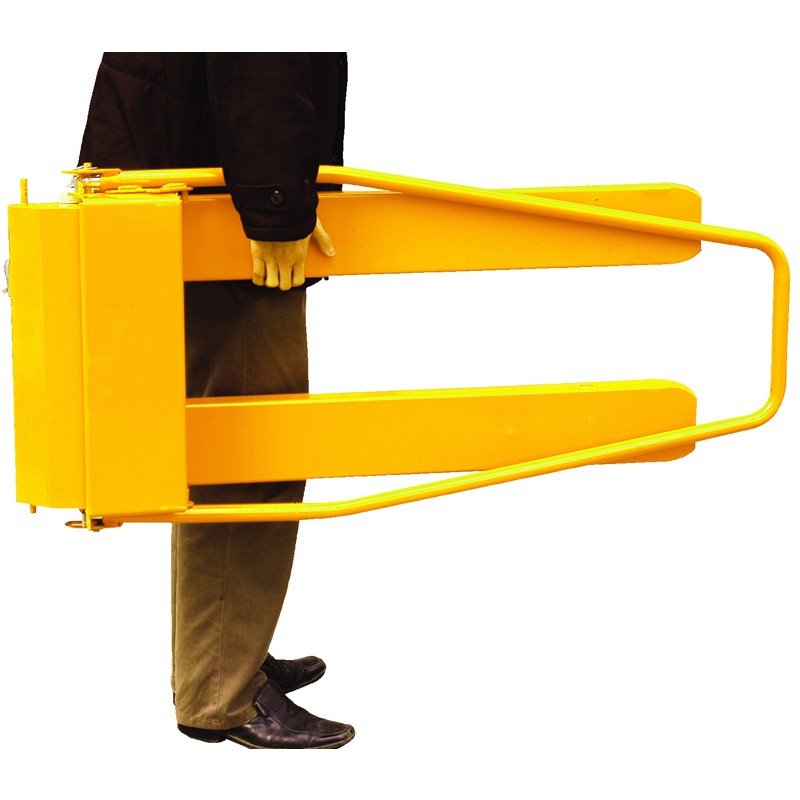

■ Extremely light weight, about 25kg. It can be carried by one person easily, and taken by vehicle.
■ It can be folded when not in use, and it can be hung up on a hook on the wall.
■ Without hydraulic system, so no leakage risk available.
| Model | MX0608 | MX0610 | |
| Capacity | (kg) | 300 | |
| Max. Lift Height | (mm) | 145 | |
| Lowered Height | (mm) | 85 | |
| Overall Fork Width | (mm) | 420 | |
| Fork Length | (mm) | 800 | 1100 |
| Individual Fork Width | (mm) | 120 | |
| Total Height | (mm) | 200/1160 | |
| Steer Wheel Size Dia.xWidth | (mm) | Ø80x40 | |
| Load Wheel Dia.xWidth | (mm) | Ø80x40 | |
| Overall Size LxW | (mm) | 1030x420 | 1330x420 |
| Net Weight | (kg) | 25 | 30 |
