Description

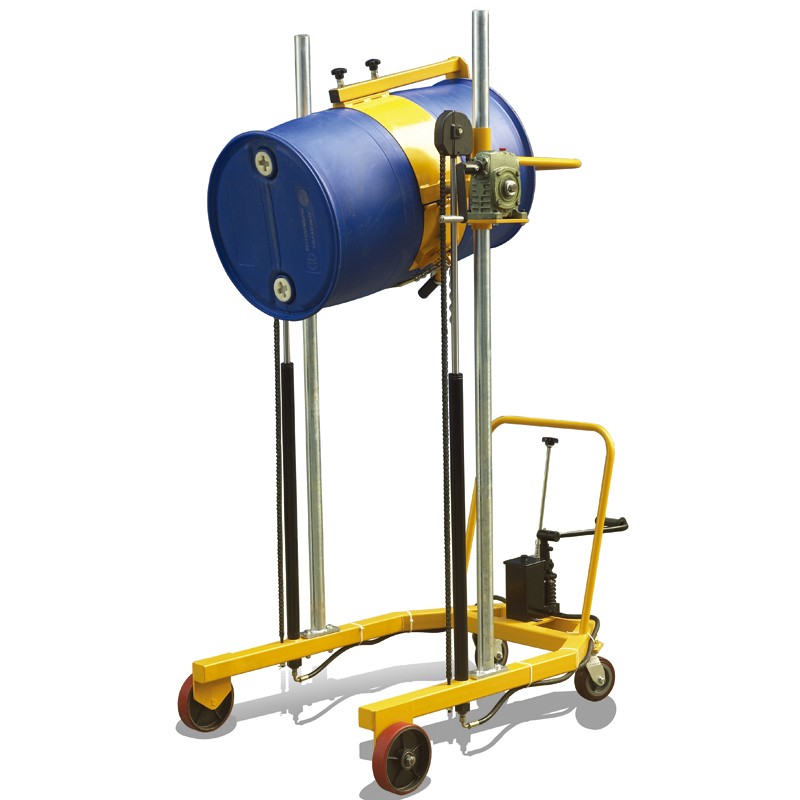

Hydraulic Oil Drum Lifting and Tilting Truck
Model WB30■ For lifting, turning, mixing, emptying and transporting drums.
■ Manual lifting by hydraulic foot pump, and manual rotary by reduction box.
■ Drums can be manually rotated to Max. 180 degree and kept at any angle.
■ For 200 litre steel oil drums, and plastic, fiber oil drums.
■ With anchor ear structure and support frame for different types oil drums.
■ Double poles lifting structure provides a good view during lifting.
| Model | WB30 | |
| Capacity | (kg) | 300 |
| Max. Lifting Height | (mm) | 1415 |
| Suitable for Drum Size | (mm) | Φ572x900 |
| Front Wheel Diameter | (mm) | Φ200 |
| Rear Wheel Diameter | (mm) | Φ150 |
| Strokes to Maximum Lifting Height | (times) | 82 |
| Net Weight | (kg) | 154 |
