Furniture Corner Mover Smart Tool for Moving Furniture
AR series■ The capacity is per each piece.

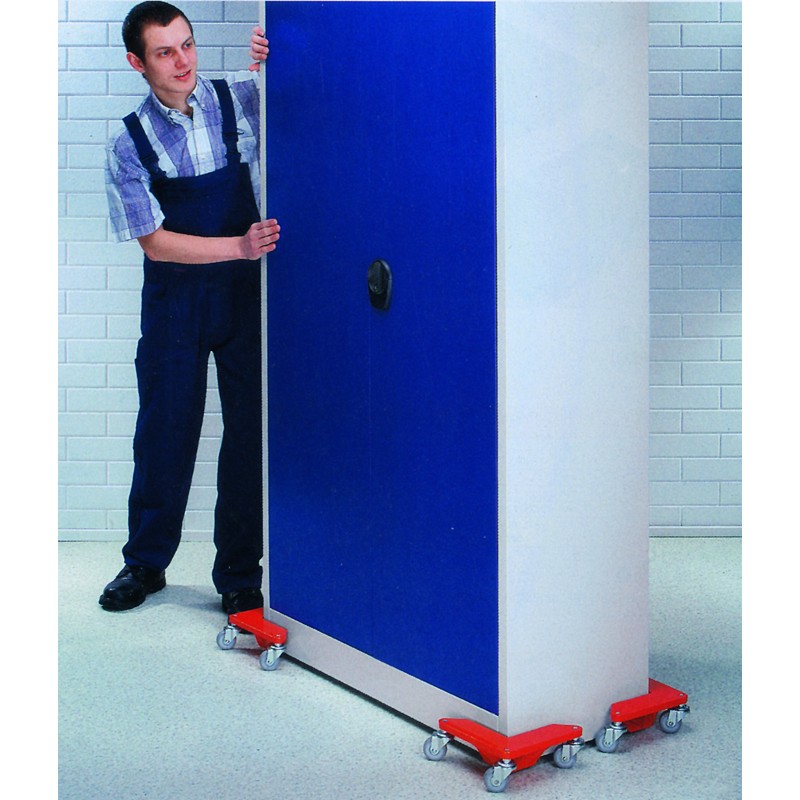

■ Low level corner bogies essentially used to move awkward rectangular loads.
■ Give mobility in locations where normal equipment for such handling cannot be used.
■ Easy to postion-lift one side of load by a transport jack and slide in corners, then repeat for other side.
■ Load platform coverd with ribbed rubber for load protection.

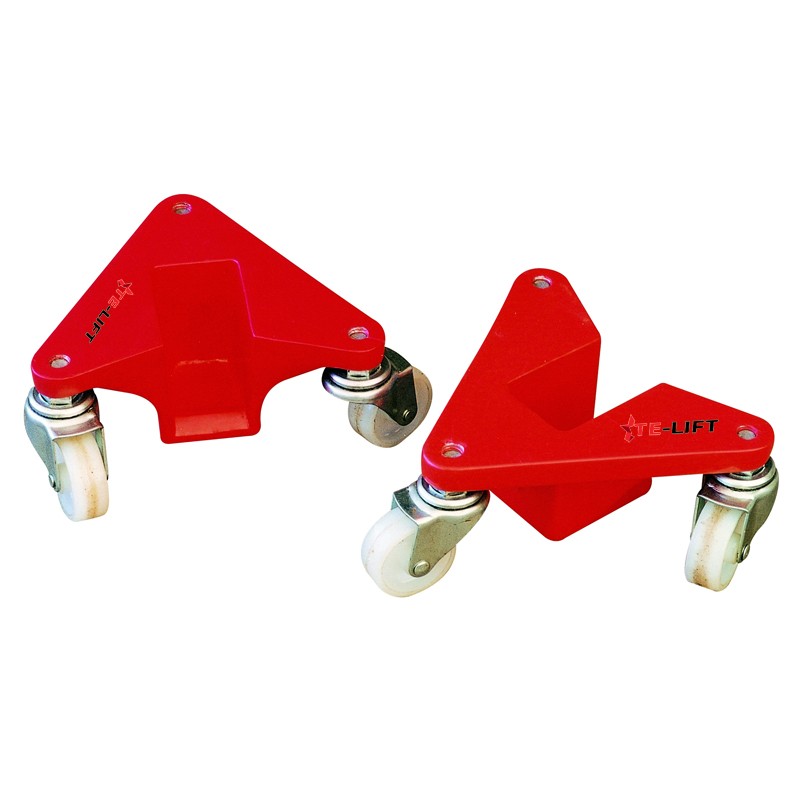

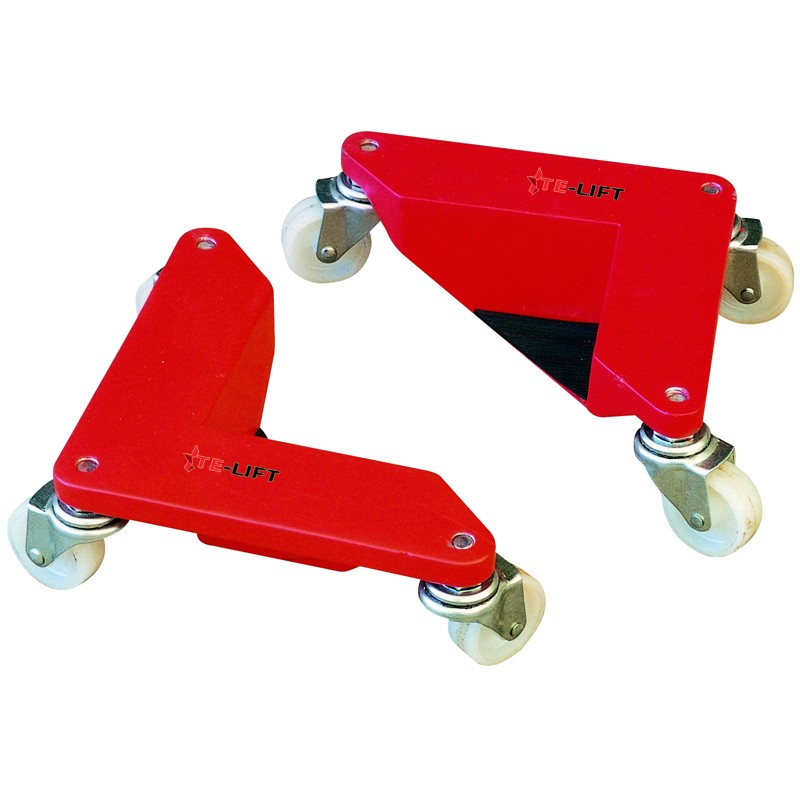

■ AR100A and AR100B are made of casting aluminum.

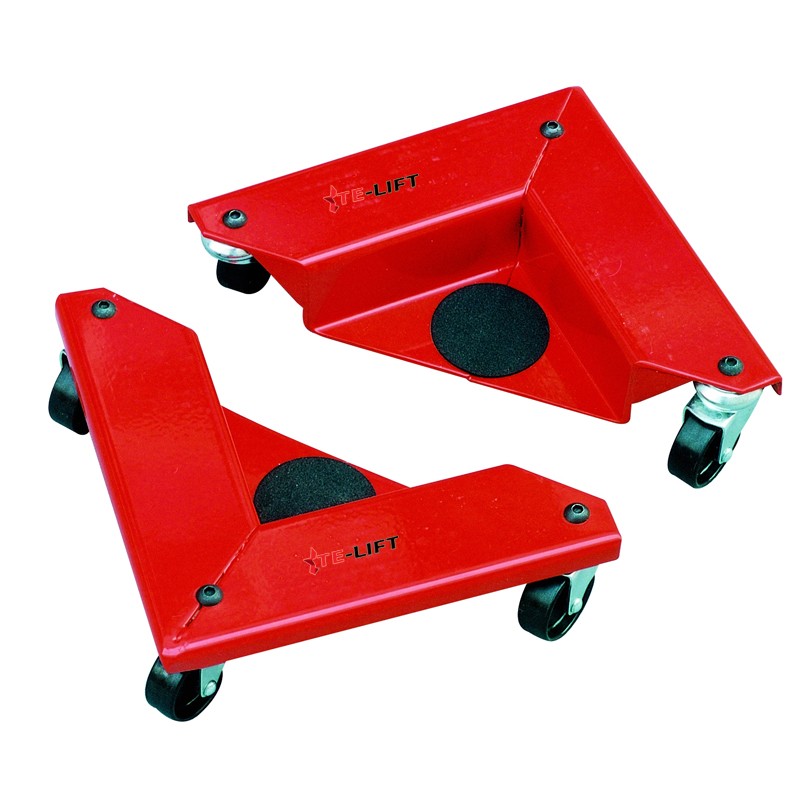

■ AR150 frame is made of press steel.
■ 3pcs ball bearing castors in each corner mover.
■ Sold in one set(4pcs) only.
| Model | AR100A | AR100B | AR150 | |
| Frame Material | Aluminium | Aluminium | Steel | |
| Capacity per One PC | (kg) | 100 | 100 | 150 |
| Wheel Size Dia.xW | (mm) | Φ50×20 | ||
| Load Height | (mm) | 15 | ||
| Overall Size One PC | (mm) | 305×165×85 | 195×165×85 | 366×204×85 |
| Net Weight per Set | (kg) | 5.6 | 4.8 | 8 |
