Low Profile Auto-Shift Hydraulic Scissor Lift Carts - 副本

Product Item：PA100, PA200, PA400

Capacity 100KG, 200KG, 400KG

Table height 85mm to 600mm

Table Size 750x400mm, 830x500mm, 900x600mm

Lifting by pedal

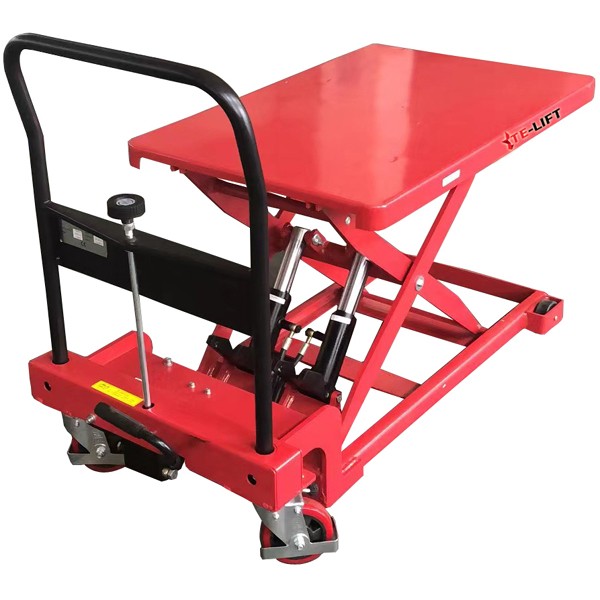

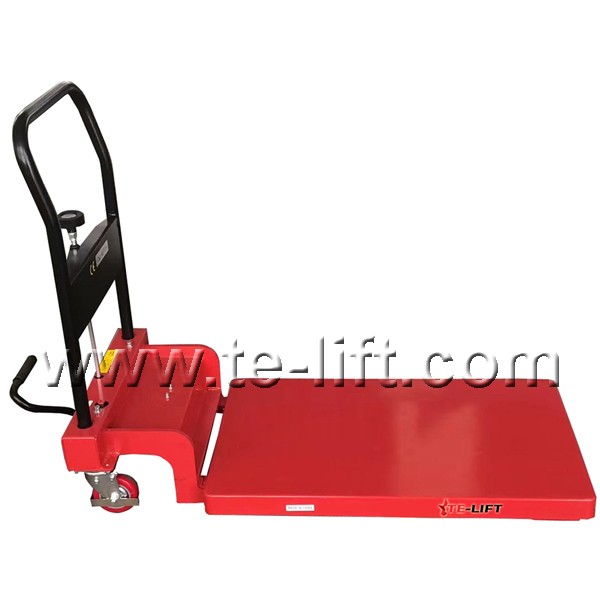

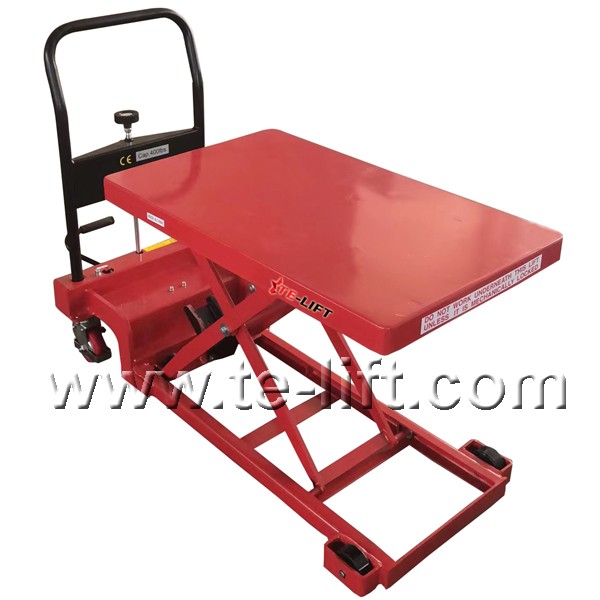

Low Profile Auto-Shift Hydraulic Scissor Lift Table Trucks

PA series

■ Min. table height is only 85mm, it is very easy for operator to take the load onto the table.

■ With the double speed foot pump, the platform is easily raised/descended to the desired position.

■ With a raised steering handle the user can maintain a proper working posture during transit.

■ The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions.

■ Mold on polyurethane casters with brakes roll easily over a variety of surfaces.

■ Foot pedal operated hydraulic lifting, provide a suitable working position or lifting height.

■ With screw type pressure release rod, made it easy to descend.

Model		PA100	PA200	PA400
Capacity	(kg)	100	200	400
Table Size LxW	(mm)	750x400	830x500	900x600
Min. Table Height	(mm)	85	85	87
Max. Table Height	(mm)	600	600	600
Handle Height from Ground	(mm)	875	875	905
Front Load Roller Diameter	(mm)	Φ75	Φ75	Φ75
Steering Wheel Diameter	(mm)	Φ100	Φ100	Φ125
Overall Size LxW	(mm)	1190x470	1260x520	1320x620
Pedal Cycles to Max. Height (w/o load)	(times)	7	14	21
Pedal Cycles to Max. Height (w/ rated load)	(times)	25	45	68
Net Weight	(kg)	58	74	108
