Carrier Rollers Heavy Object Transport Aid

Product Item：SF10, SF20, SF25, SF30, SF60

Capacity 1T~6T

Platform height 105mm, 120mm

Roller Size Φ100x35mm, Φ85x85mm

Number of Axle 2pcs, 3pcs

Carrier Rollers Heavy Object Transport Aid

SF series

■ For the easy and safe transport of heavy objects.

■ With large ball-bearing nylon rollers.

■ With hardened steel shafts.

■ With strong steel structure.

■ With non-slip rubber pad on the top platform.

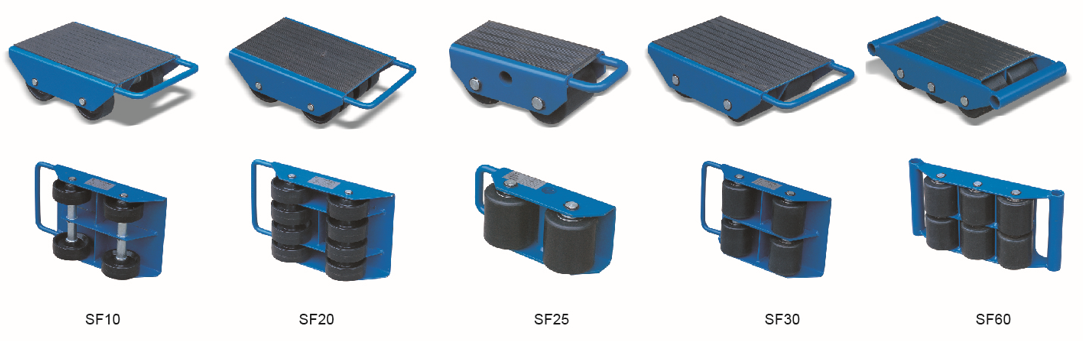

Model		SF10	SF20	SF25	SF30	SF60
Capacity	(tonne)	1	2	2.2	3	6
Number of Rollers	(pcs)	4	8	2	4	6
Number of Axle	(pcs)	2	2	2	2	3
Roller Size Dia.xW	(mm)	Φ100x35	Φ100x35	Φ85x90	Φ85x85	Φ85x85
Dimensions LxWxH	(mm)	330x220x120	330x220x120	210x100x105	330x300x120	260x230x105
Net Weight	(kg)	7	8	4	9.5	12
