Description

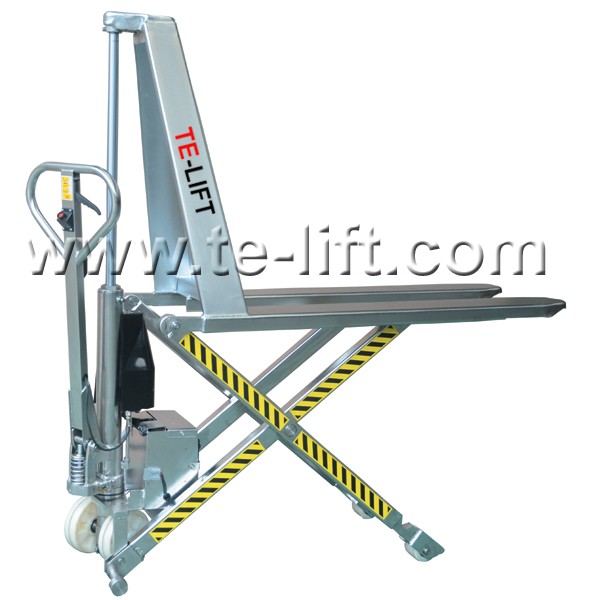

Stainless Steel Hydraulic Electric High Lift Scissor Jacks
ACS-E series
■ Electric lifting and manual moving.
■ Complete stainless steel for the most of parts, excluding electric components.
■ Material: Grade 304 standard, Grade 316 forks as option.
■ For using in meat and other food industry, dairy canning and all areas where corrosive acids and saline solutions are used.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ The truck will be braked automatically when lift to the maximum height.
■ With maintenance-free lead-acid battery.
■ Conforms to EN1757-4.
| Model | ACS1054E | ACS1068E | ACS1554E | ACS1568E | |
| Capacity | (kg) | 1000 | 1500 | ||
| Max. Fork Height | (mm) | 800 | |||
| Min. Fork Height | (mm) | 85 | |||
| Size of Fork | (mm) | 160x50 | 160x50 | ||
| Overall Forks Width | (mm) | 540 | 680 | 540 | 680 |
| Length of Fork | (mm) | 1150 | 1130 | ||
| Fork Roller | (mm) | 80x70 | |||
| Steering wheel | (mm) | 180x50 | |||
| Battery | (V/AH) | 12/60 | |||
| Lifting Motor | (KW) | 0.8 | |||
| Net Weight | (kg) | 155 | 160 | 160 | 165 |
