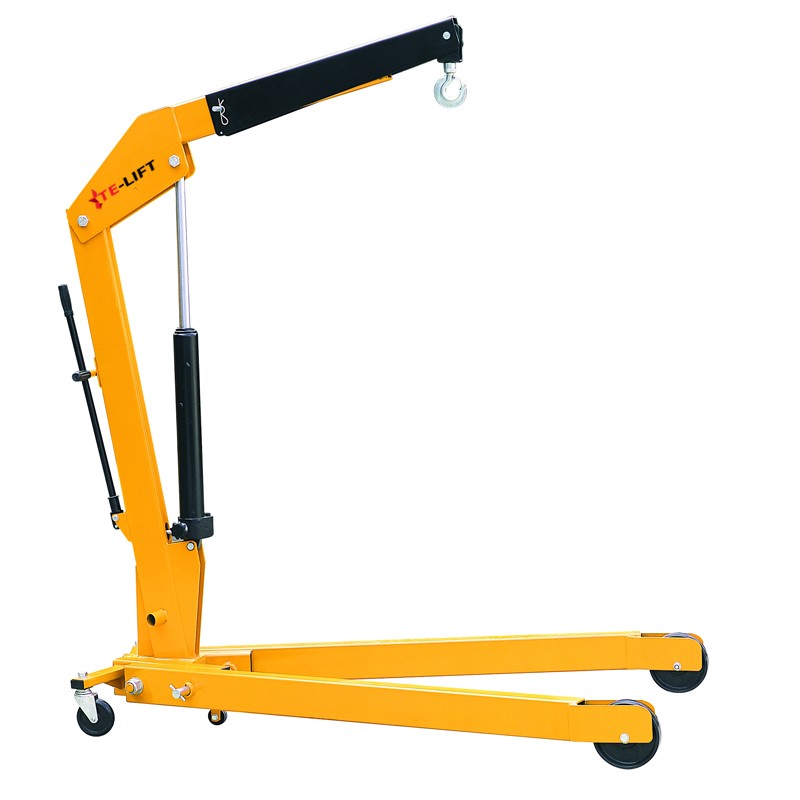

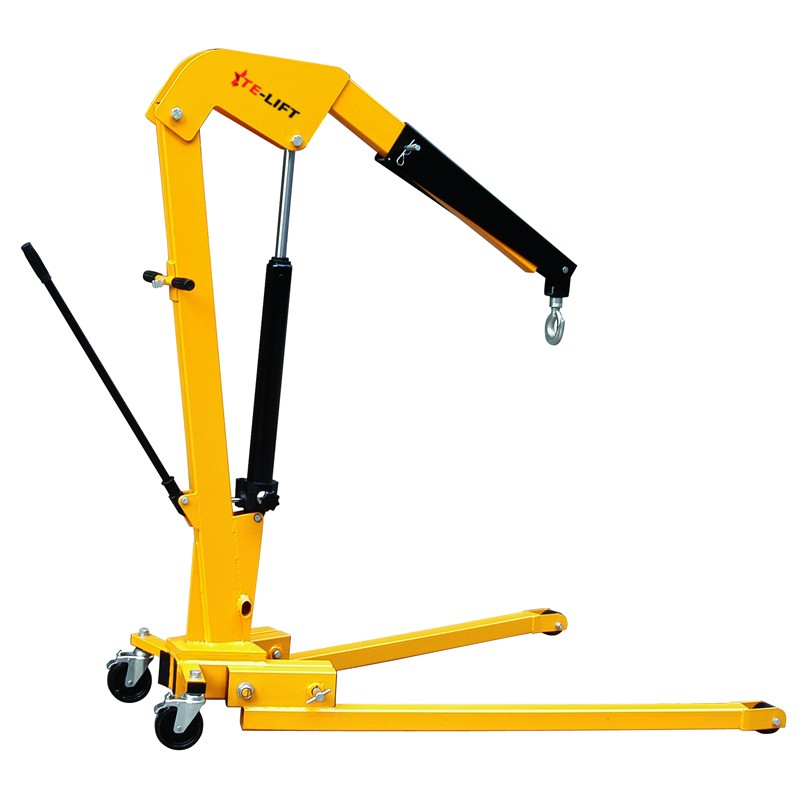

Foldable Shop Crane Euro Type Shop Crane

Description

Foldable Shop Crane Euro Type Shop Crane
SC-A series

■ Larger capacity than normal shop cranes at 3 position.

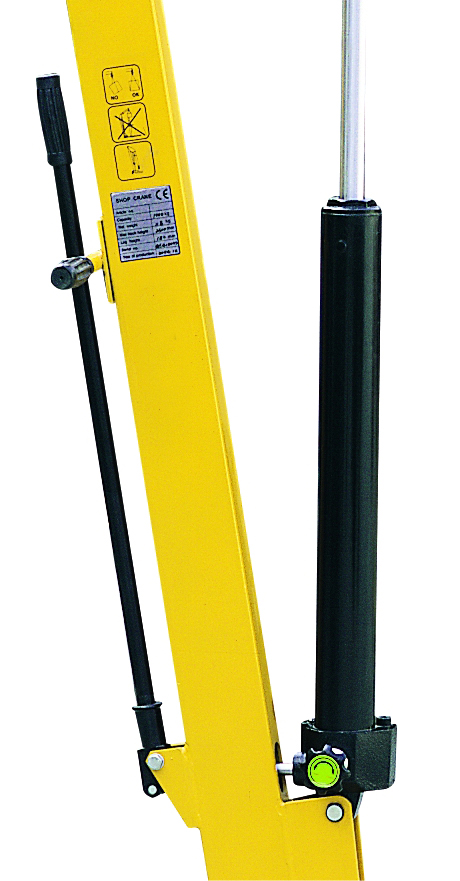

■ Chrome plated lifting piston and pump piston.

■ Relief valve to prevent overload.

■ Forged heavy duty swivel hook.

■ 125% overload testing before delivery.

■ Conforms to CE safety standard.

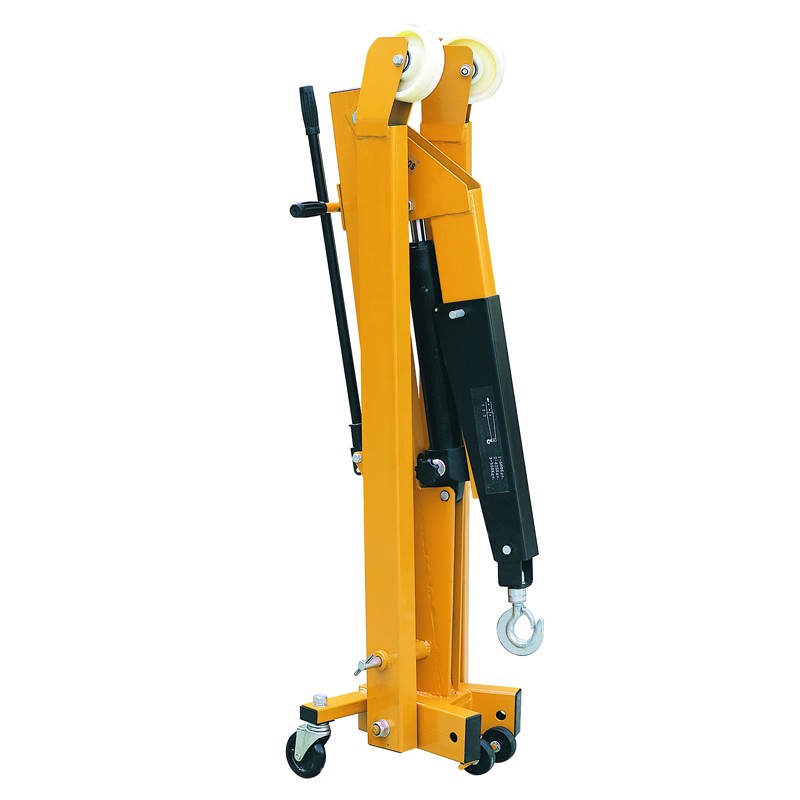

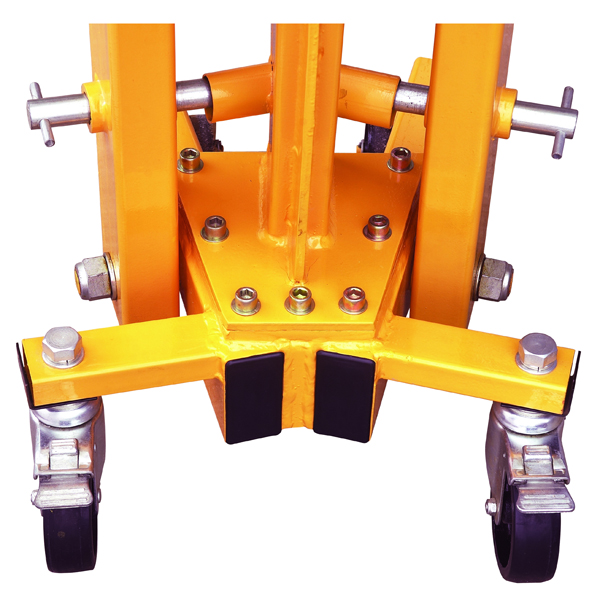

■ Optional disassembled frame for smaller packing size, SC-B series

■ Optional double action pump for faster lifting, SC-C series

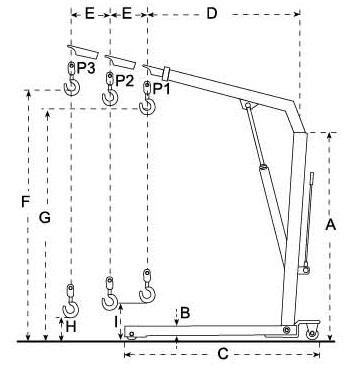

Model	Capacity at position			Dimensions									Overall Width	Net Weight
	(kg)			(mm)									(mm)	(kg)
	P1	P2	P3	A	B	C	D	E	F	G	H	I
SC500A	500	425	350	1354	165	1582	897	102	2080	1920	130	330	960	75
SC1000A	1000	800	700	1597	90	1749	1231	150	2450	2320		280	1100	115
SC2000A	2000	1700	1500	1626	208	1911	1293	150	2490	2330		250	1170	165
