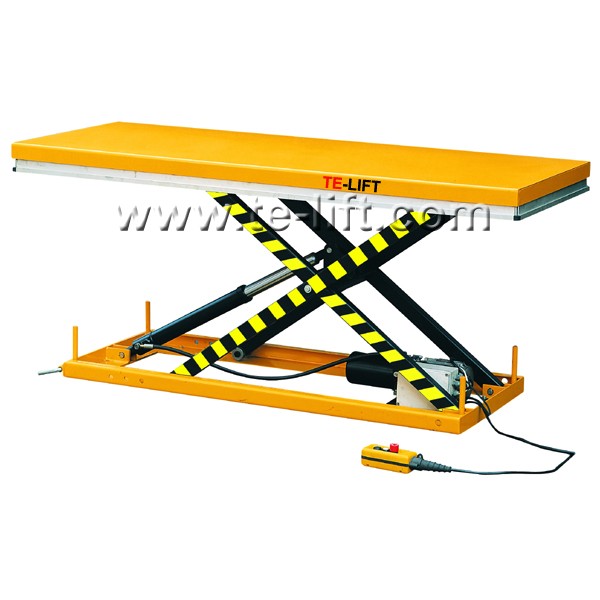

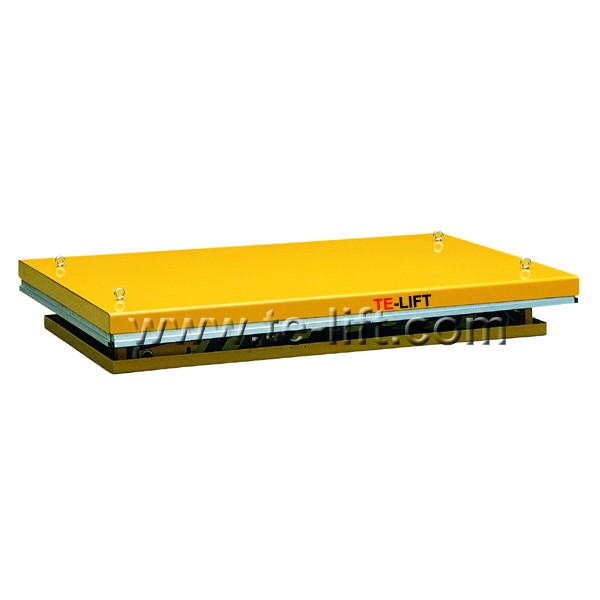

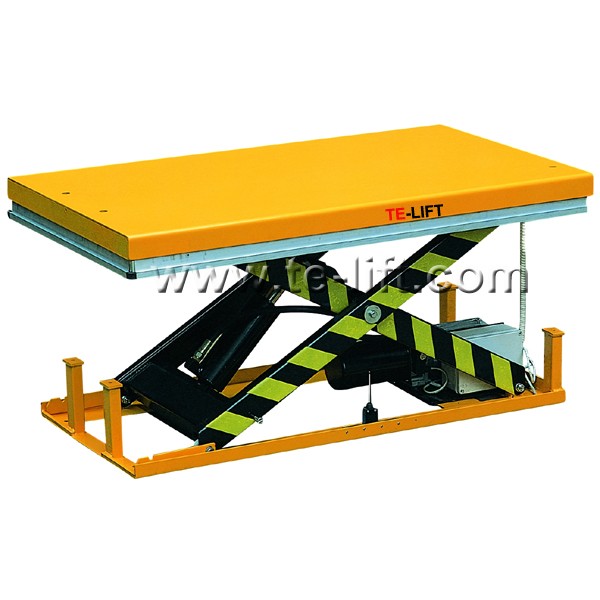

500KG Capacity Electric Hydraulic Scissor Goods Lift Platforms

Product Item：HW500L, HW501, HW502

Capacity 500KG

Single scissor

380V/50HZ-3Phase or 220V/50HZ-Single phase

AC power

500KG Capacity Electric Hydraulic Scissor Goods Lift Tables

HW series

■ HW500L Large platform 2000x800mm for special size materials.

■ Lifting height from 200mm to 1000mm.

■ These models can be used in above-floor or in-floor pit applications.

■ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

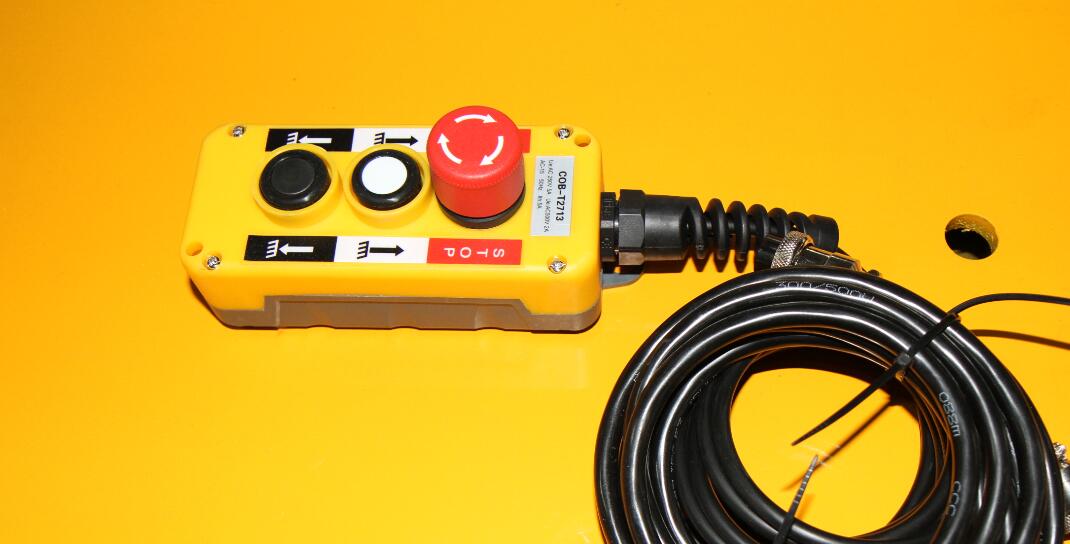

■ Low-tention(24V) control box with up-down buttons.

■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

■ Safety clearance between scissors to prevent trapping during operation.

■ Self lubricating bushings on pivot points.

■ Removable lifting eye to facilitable handling and lift table installation.

■ High quality AC power packs.

■ Meet EN1570 norm and ANSI/ASME safety standard.
