Description

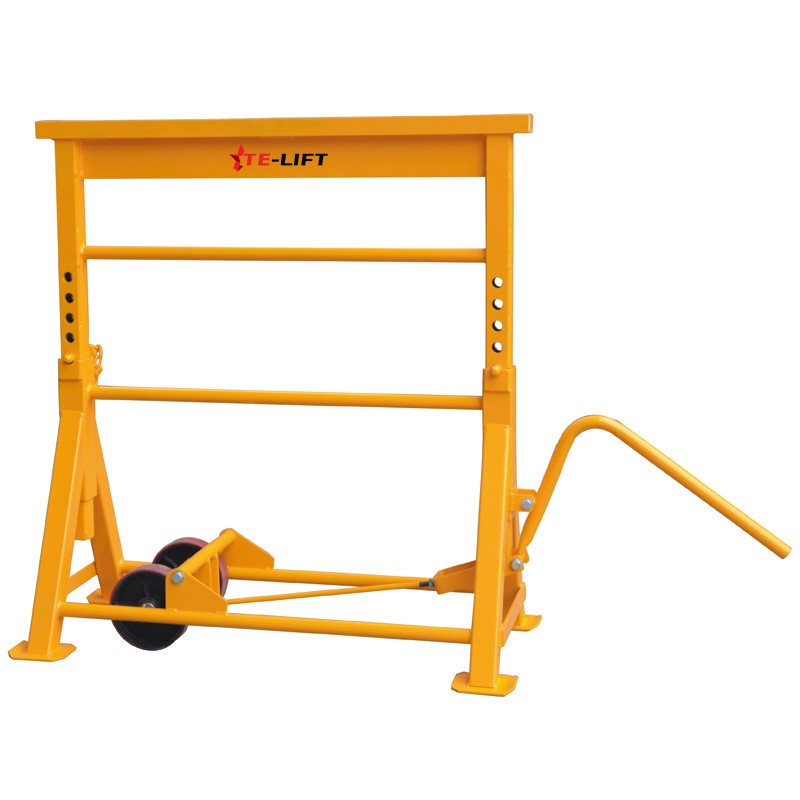

Trailer Stabilizer Jack Container Support
Model JK15■ This jack will keep a trailer level when disconnected from tractor, or when it is parked on sloping ground.

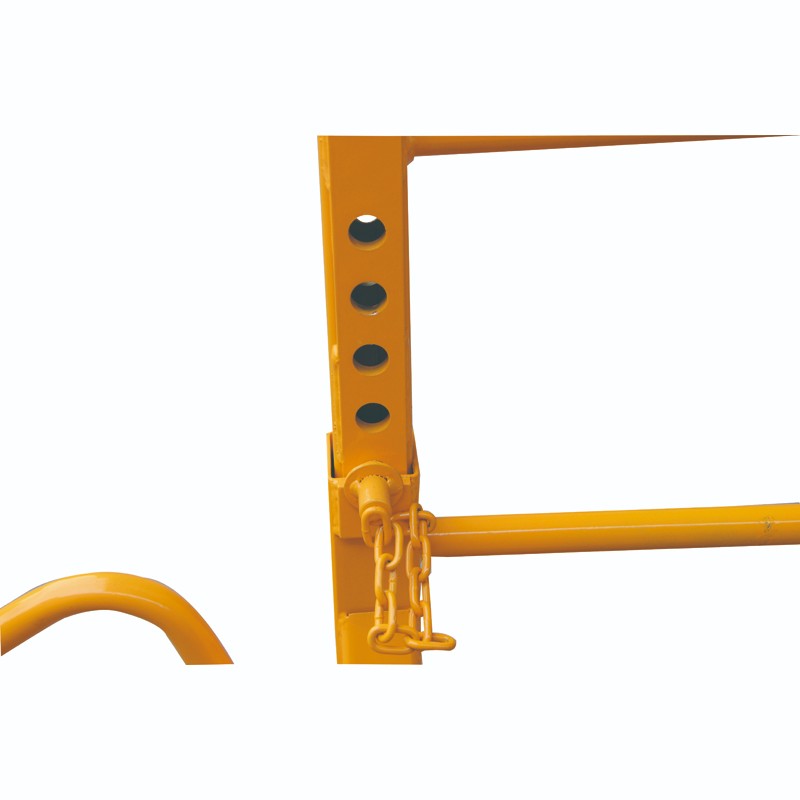

■ 5 positions height adjustment, 50mm per position.

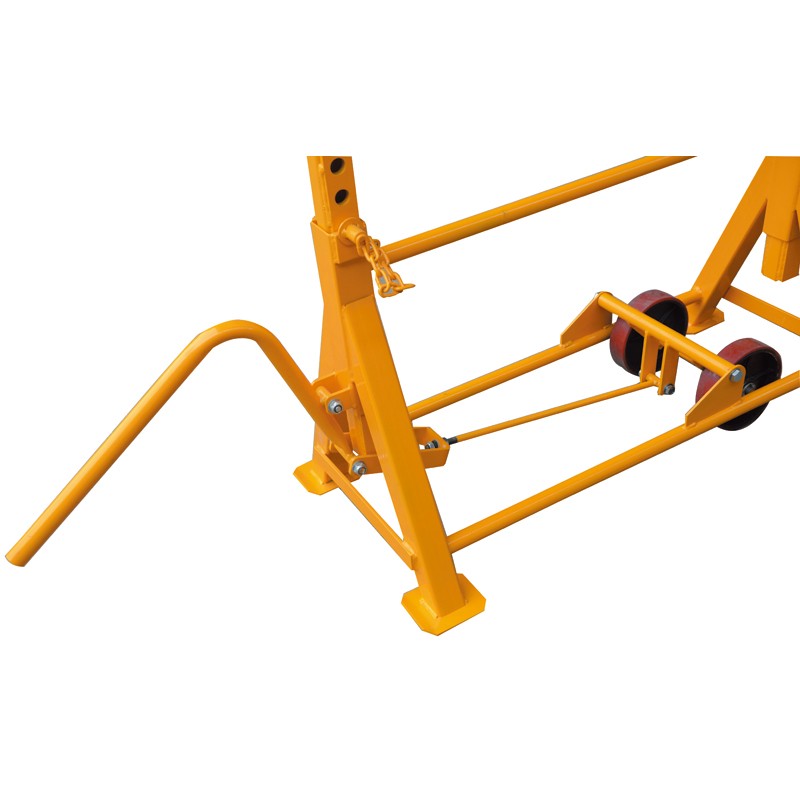

■ It’s easy to handle the jack by two wheels system.
■ The maximum capacity is 15tonne.
■ Wooden bar on the top to increase the friction.
| Model | JK15 | |
| Capacity | (tonne) | 15 |
| Min. Lifting Height | (mm) | 1070 |
| Max. Lifting Height | (mm) | 1270 |
| Adjustable Range | (mm) | 200 |
| Wheel Size Dia.xW | (mm) | Φ200x50 |
| Support Length | (mm) | 1200 |
| Net Weight | (kg) | 86 |
