Description
Aluminium Mono Mast Ball Screw Structure Electric Lifter
Model ESG150
■ Adjustable lifting and descending speed from 0.5~50mm/s, and the speed can be adjusted easily in control panel.
■ Ball screw structure offers a very stable and very precise lifting and descending, and low noise transmission system.
■ Aluminium mono mast offers a good view and light weight to operate.
■ Max. lifting capacity is 150kg, maximuim lifting height is 1620mm.
■ Desiged with 4 castors and rear steering castors with brake.
■ Double handles for easy operation.

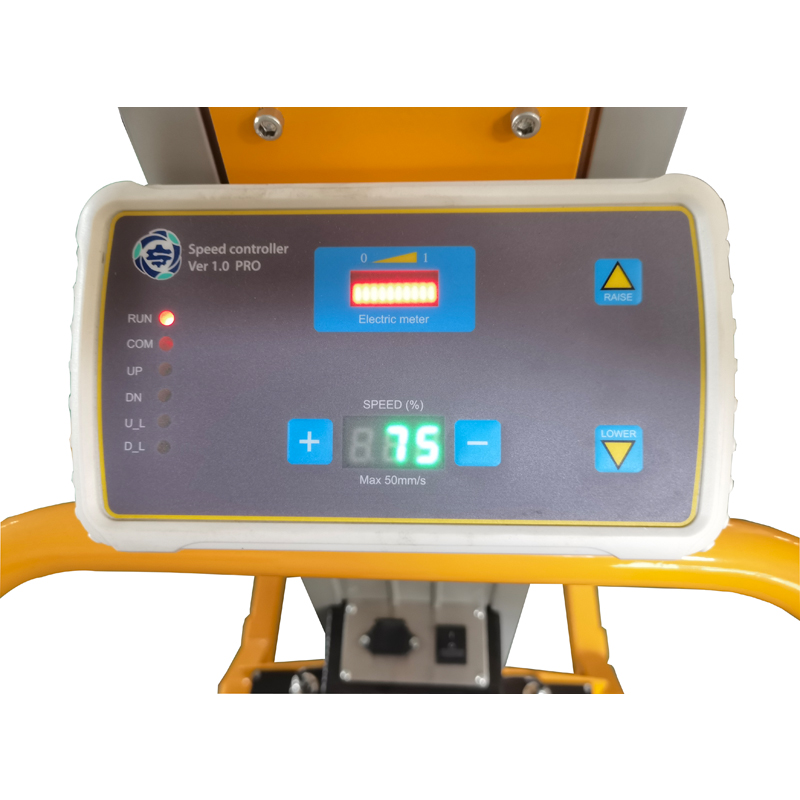

■ Pendant type controller for easy operation.

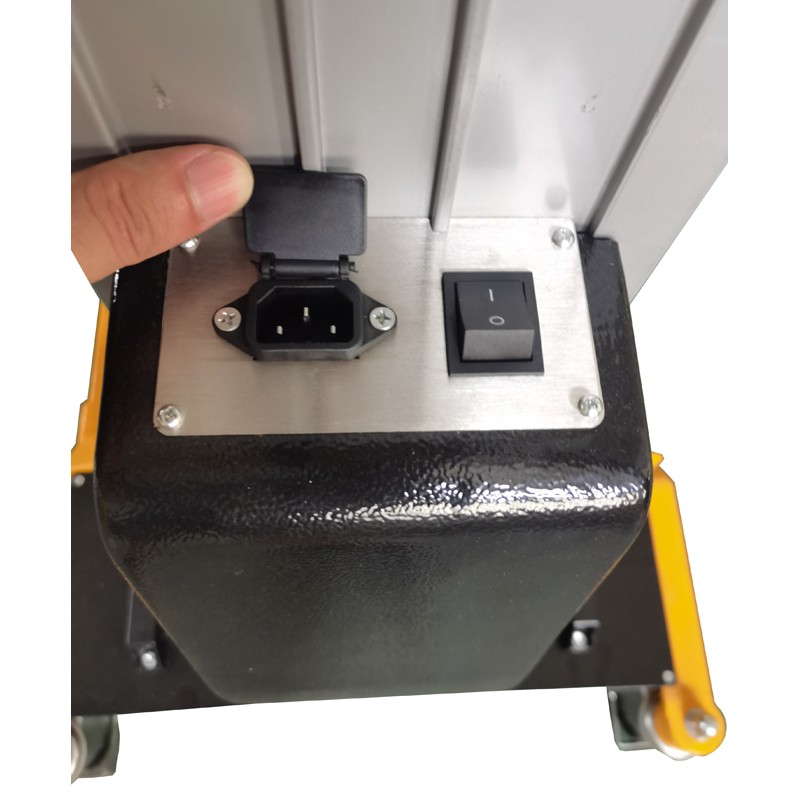

■ Battery inside and external charger.
■ PVC platform as standard, and quick change attachment options available.
■ Conforms to EN1757 and EN 1175-1.
| Model | ESG150 | |
| Load Capacity | (kg) | 150 |
| Load Centre | (mm) | 235 |
| Maximum Platform Height | (mm) | 1620 |
| Minimum Platform Height | (mm) | 130 |
| Platform Size DxW | (mm) | 475x605(PVC) |
| Load Roller Size Dia.xW | (mm) | Φ75x20(PU) |
| Steering Wheel Size Dia.xW | (mm) | Φ125x32(PU) |
| Lifting Motor | (V/W) | 48/400 |
| Lifting/Descending Speed | (mm/s) | 0.5~50(Adjustable) |
| Battery | (V/Ah) | 4x12/7 |
| Charger | (V/A) | 54/2 |
| Overall Dimensions LxWxH | (mm) | 926x605x1815 |
| Net Weight | (kg) | 91 |
