Complete Set of Skates Steerable Skates Kit

Complete Set of Skates Steerable Skates Kit

Product Item：X4+Y4, X8+Y8, X12+Y12, X16+Y16, X18+Y18, X24+Y24,

Max. capacity 64tonne

Max. roller numbers 64pcs

Platform height 110mm

Roller material polyurthane and nylon

Description

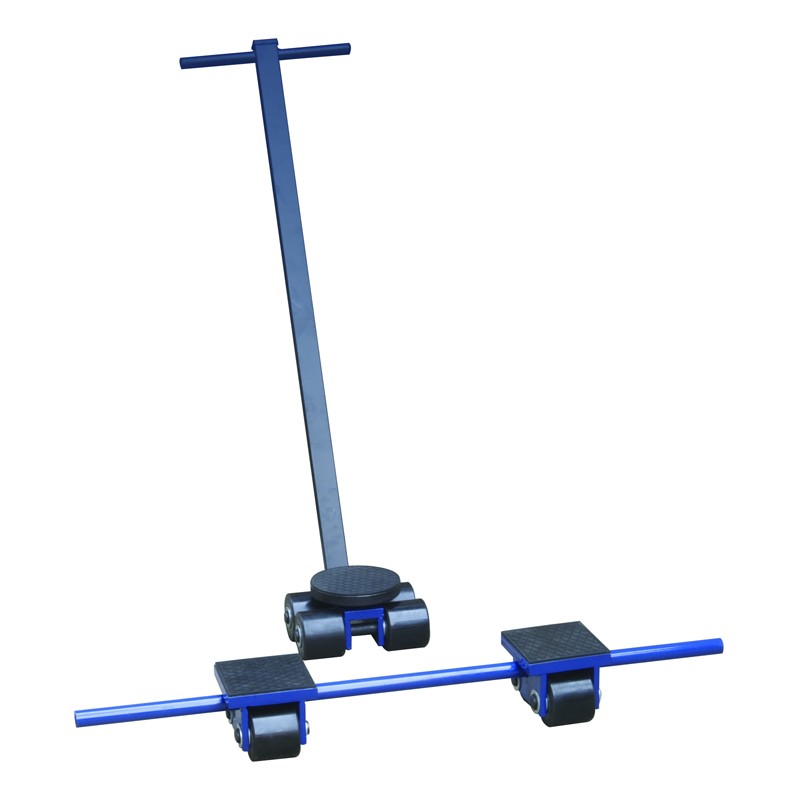

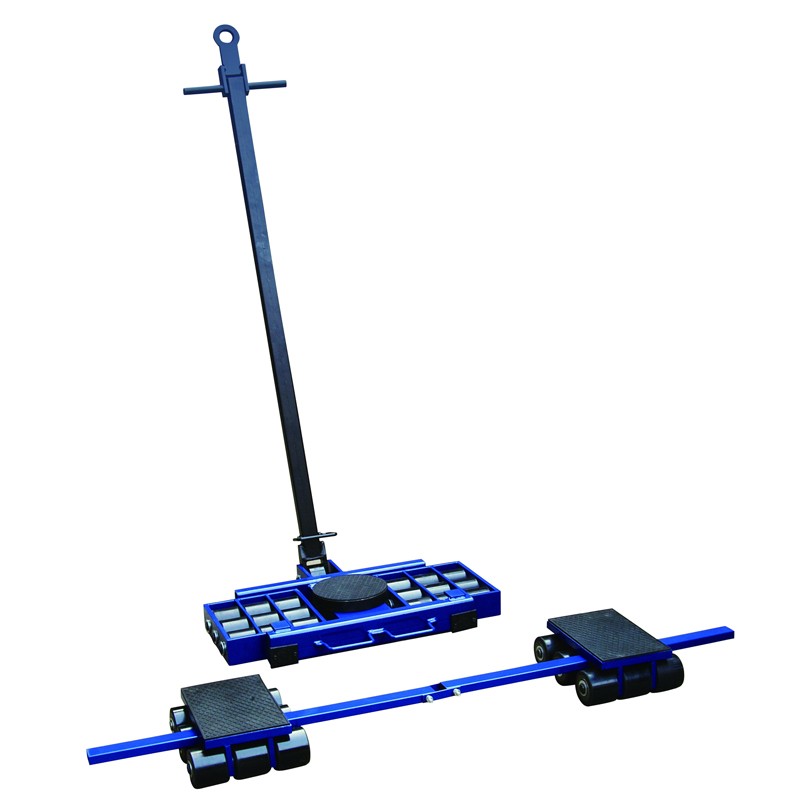

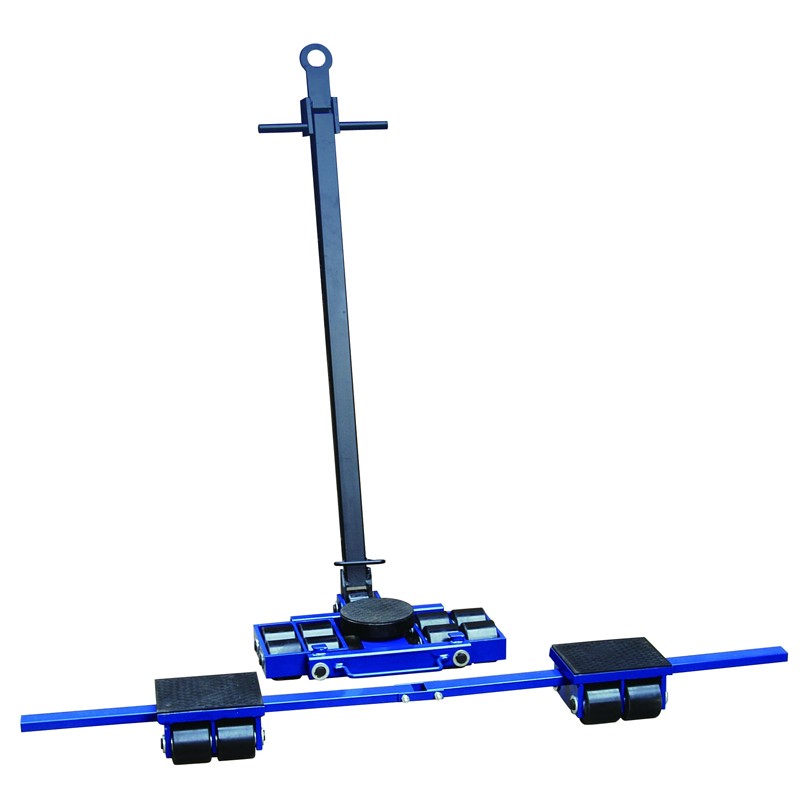

Complete Set of Skates Steerable Skates Kit

X+Y series

■ X model and Y model can be used as a kit, or they can also be used separately.

■ With turntable for X model.

■ With connection bar for Y model.

■ Max. load capacity 64tonne for model X32+Y32.

■ Polyurthane rollers as standard, nylon rollers as optional.

■ For short, variable transportation distances.

■ For the easy and safe transport of heavy objects.

■ The steering handle give you precise control making it easy to manoeuvre large machinery or into tight areas.

■ Moving speed no exceeding 5m/min.

■ With non-slip rubber pad on the top platform.

■ The track surface is important for the safe transportation of the load, not the carrying capacity of the Roller Skate.

■ Due to the little effort required to overcome the rolling resistance(4-7% of the total load) precautionary measures must be taken for use on inclined surfaces.

Combination Model	Individual Model	Capacity of Combination Model	Capacity of Individual Model	Number of Rollers	Dimensions of Turnplate	Overall Size	Net Weight
		（Tonne)	（Tonne)	(pcs)	(mm)	(mm)	(kg)
X4+Y4	X4	8	4	4	150	230x230x110	28
X4+Y4	Y4	8	4	4	130x130	170x140x110	28
X8+Y8	X8	16	8	8	160	560x420x110	72
X8+Y8	Y8	16	8	8	200x160	200x200x110	72
X12+Y12	X12	24	12	12	180	750x450x110	100
X12+Y12	Y12	24	12	12	220x180	256x200x110	100
X16+Y16	X16	32	16	16	200	936x500x110	124
X16+Y16	Y16	32	16	16	240x180	310x220x110	124
X18+Y18	X18	36	18	18	200	1180x550x110	138
X18+Y18	Y18	36	18	18	280x200	380x250x110	138
X24+Y24	X24	48	24	24	220	1380x570x110	169
X24+Y24	Y24	48	24	24	300x220	420x280x110	169
X32+Y32	X32	64	32	32	240	1580x590x110	203
X32+Y32	Y32	64	32	32	320x240	450x320x110	203
