Description

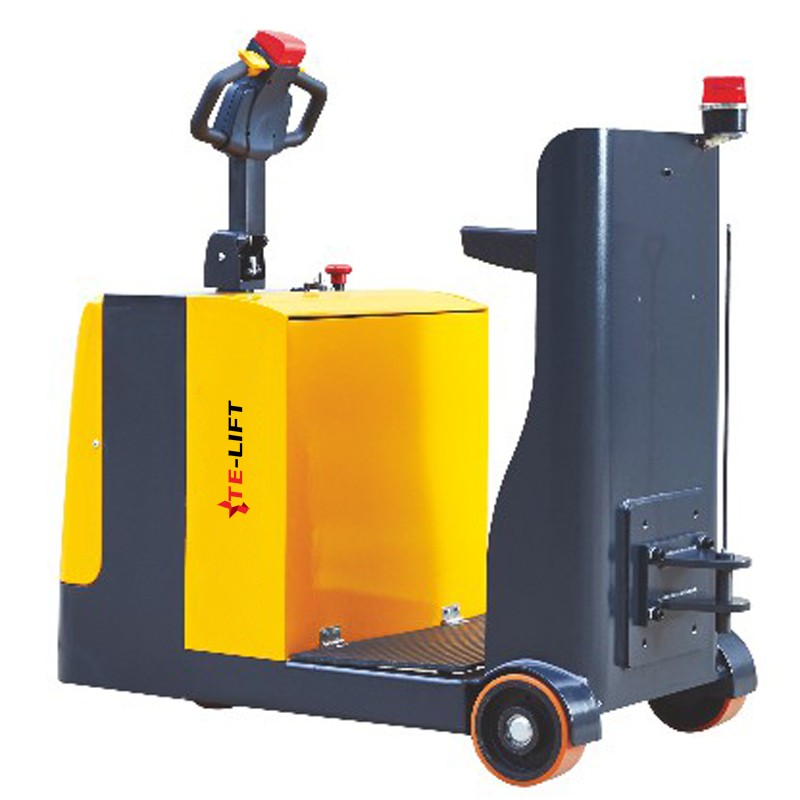

Standing Type Electric Tow Tractor
Model QD20 and QD30A
■ Top quality AC controller system from Curtis, high reliablility, ensures best performance in different states.
■ Optional EPS electric power steering system, light and nimble operation.
■ AC traveling motor, maintenance-free, provides stronger power and climbing capability.
■ With the function of automatic deceleration when turning.
■ Large, comfortable operation space, can adjust the backrest according the height of operator.
■ Humanized design of handrail, protect the operator when operating.
■ Vertical motor designing, ensures inspection and maintenance of motor and brake system conveniently.
■ Configure with 210Ah large capacity battery, intelligent charger, REMA plug from Germany.
■ If the operator get off the truck, the truck will cut off the power automatically.

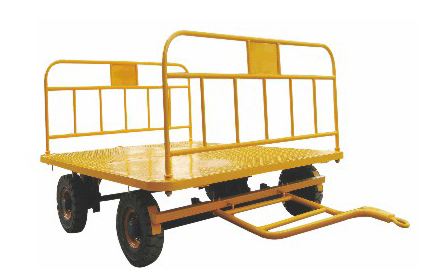

■ Optional QD-G platform tralier, capacity 2000kg, dimension 2400x1200mm.
| Model | QD20 | QD30A | |
| Operation Type | Standing | Standing | |
| Traction Weight | (kg) | 2000 | 3000 |
| Overall Length | (mm) | 1400 | |
| Overall Width | (mm) | 730 | |
| Overall Height | (mm) | 1660 | |
| Standing Space Size | (mm) | 500x680 | |
| Standing Backboard Size | (mm) | 1080x730 | |
| Minimum Ground Clearance | (mm) | 80 | |
| Turning Radius | (mm) | 1180 | |
| Drive Motor Power | (kw) | AC 1.5 | AC 2.2 |
| Steering Motor(EPS) | (kw) | 0.2 | |
| Battery | (V/Ah) | 24/210 | |
| Net Weight | (kg) | 720 | |
