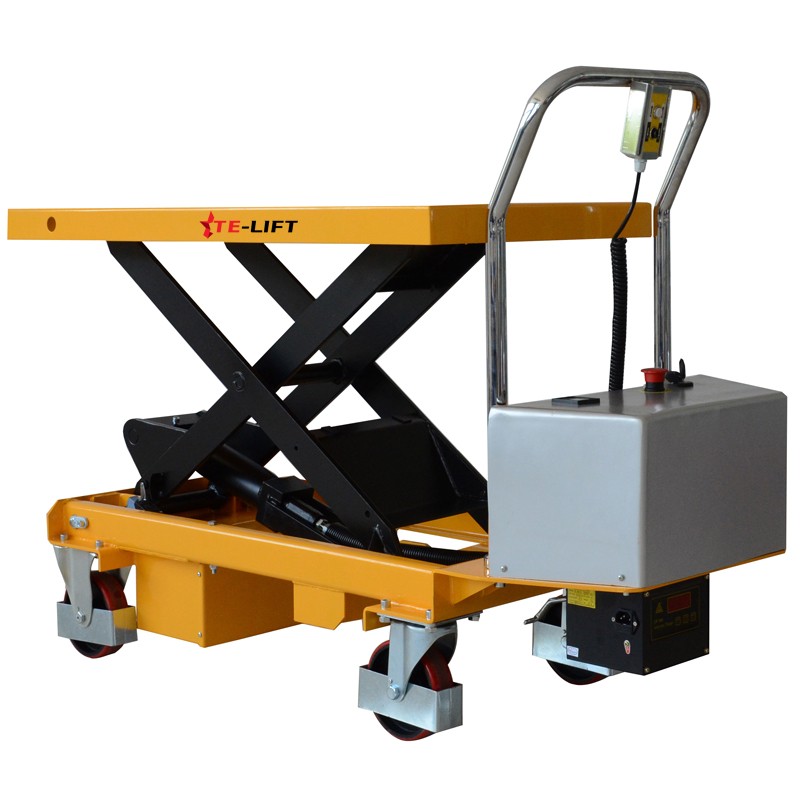

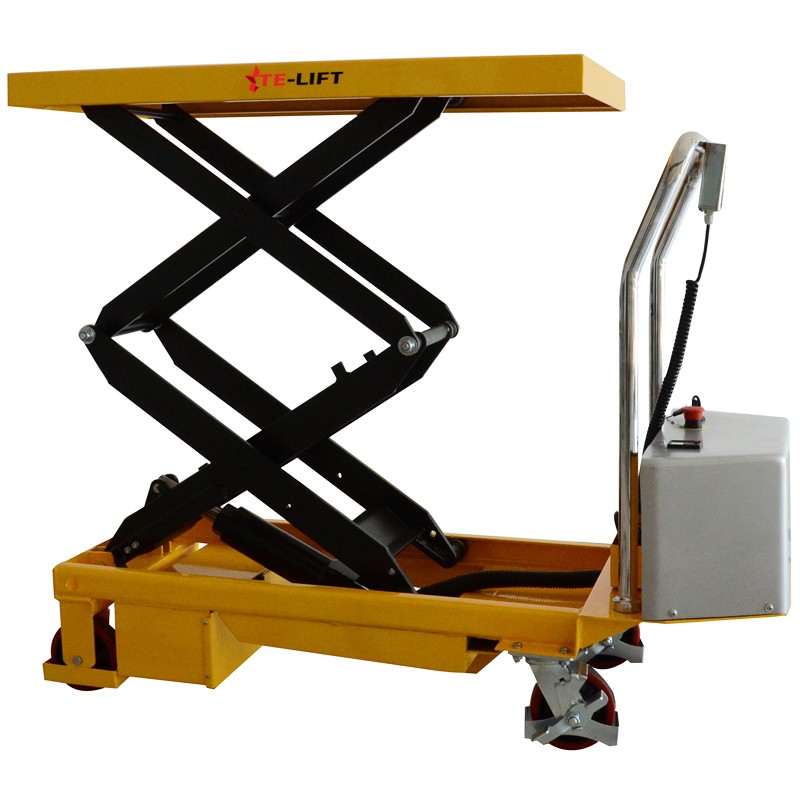

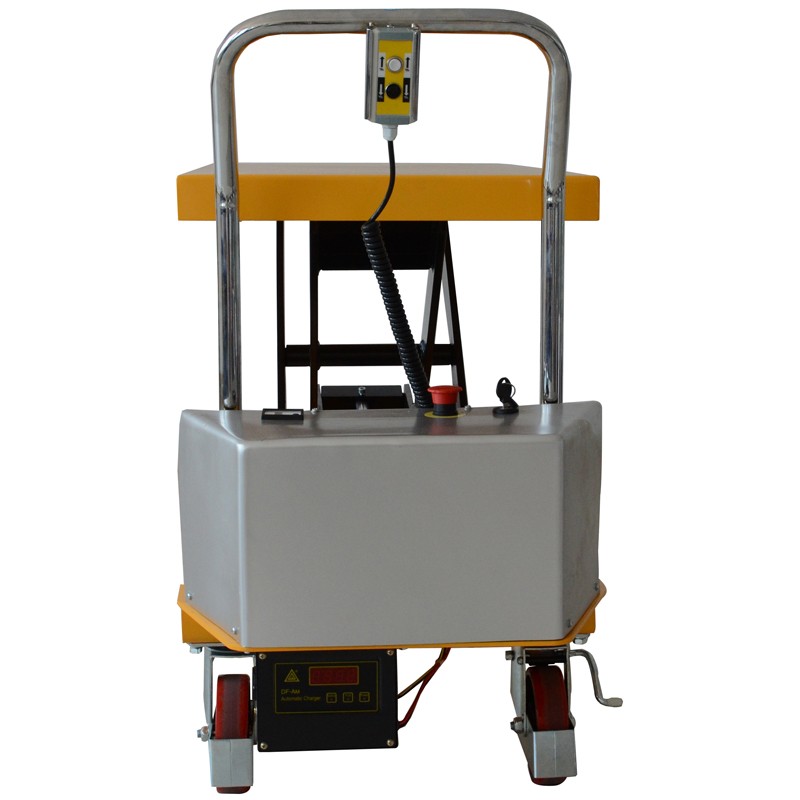

Battery Operated Semi-electric Lift Table Truck

Product Item：ETF30, ETF50, ETF75, ETF35D

Capacity 300kg, 500kg, 750kg, 350kg

Table size 850x500mm, 1010x520mm, 1000x510mm, 910x500mm

Max. Table height 880mm, 1025mm, 970mm, 1300mm

Electric lifting and manual moving

Battery Operated Semi-electric Lift Table Truck

ETF series

■ Ideally suit for using as a feeding table on an assembly line.

■ Electric Lifting with power supplied by battery, high efficiency.

■ Excellent hydraulic unit for raising table top to desired height.

■ Pendant controller for lifting and descending control.

■ Coulombmeter to show the remaining battery level.

■ With emergency stop button and key switch to make sure the safety use.

■ With chrome plated handle.

Model		ETF30	ETF50	ETF75	ETF35D
Capacity	(kg)	300	500	750	350
Table Size LxW	(mm)	850x500	1010x520	1000x510	910x500
Max. Table Height	(mm)	880	1025	970	1300
Min. Table Height	(mm)	290	440	420	370
Wheel Size Dia.xW	(mm)	125x40	150x48	147x50	125x40
Overall Length	(mm)	1145	1305	1345	1210
Handle Height from the Ground	(mm)	920	970	935	920
Lifting Speed with Load	(mm/s)	65	65	70	90
Lifting Speed without Load	(mm/s)	94	94	80	110
Lowering Speed with Load	(mm/s)	98	98	50	100
Lowering Speed without Load	(mm/s)	74	74	35	90
Lifting Cycle(fully charged)	(times)	120	100	100	100
Battery Capacity	(V/Ah)	4x12/10	2x12/15	4x12/10	4x12/10
Motor	(V/kw)	24/0.8
Net Weight	(kg)	115	157	160	142
