Description

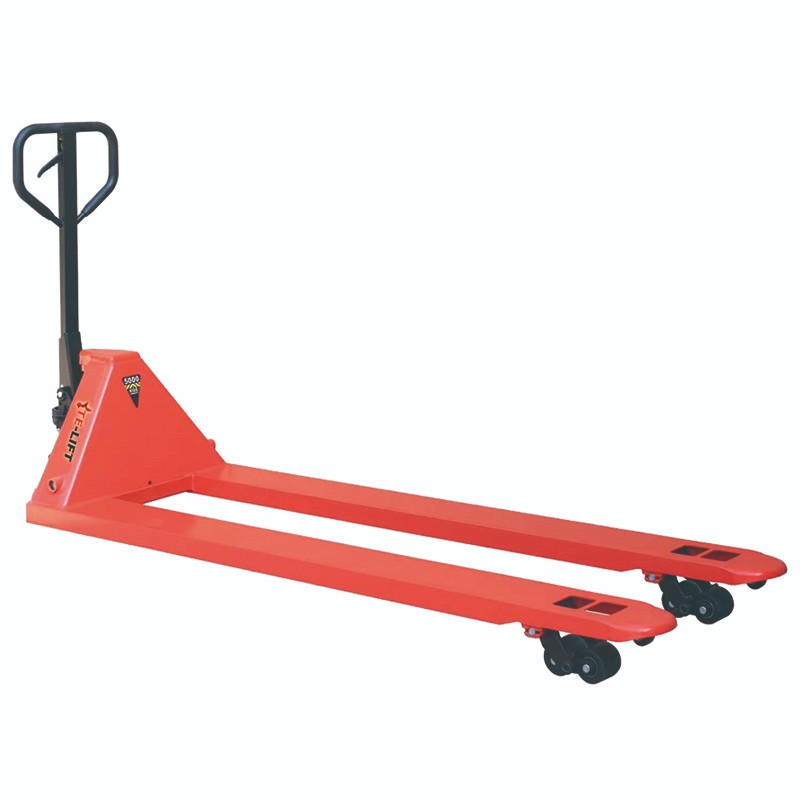

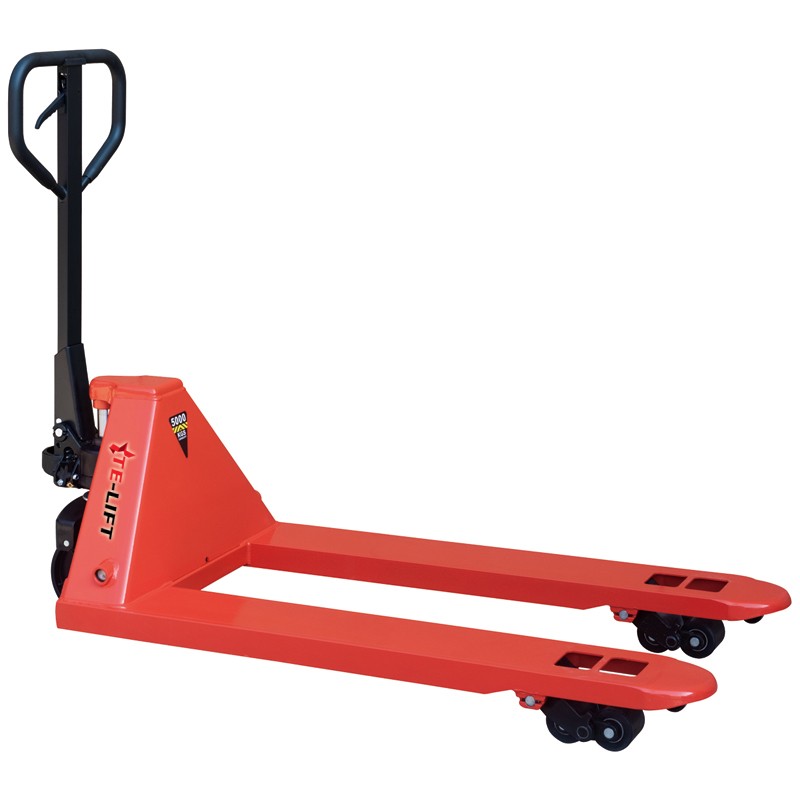

5Tonne Load Capacity Hand Pallet Jack
AC50 series■ One piece casting hydraulic pump, more durable.
■ Manganese steel for truck frame, and welded by robot.
■ With guide roller at the tip of forks, more easy to take the double face pallets.
■ With black nylon wheels or steel wheels.
■ Customized fork sizes are acceptable.
| Model | AC50S TNN | AC50L TNN | AC50S TSS | AC50L TSS | |
| Wheels Type | Nylon Wheels | Steel Wheels | |||
| Capacity | (kg) | 5000 | |||
| Min. Fork Height | (mm) | 85 | |||
| Max. Fork Height | (mm) | 195 | |||
| Fork Length | (mm) | 1150 | 1220 | 1150 | 1220 |
| Overall Forks Width | (mm) | 550 | 685 | 550 | 685 |
| Individual Fork Wdith | (mm) | 176 | |||
| Individual Fork Thickness | (mm) | 60 | |||
| Loading Roller Size Dia.xW | (mm) | Φ80x75 | |||
| Steering Wheel Size Dia.xW | (mm) | Φ195x50 | |||
| Net Weight | (mm) | 128 | 134 | 135 | 141 |
