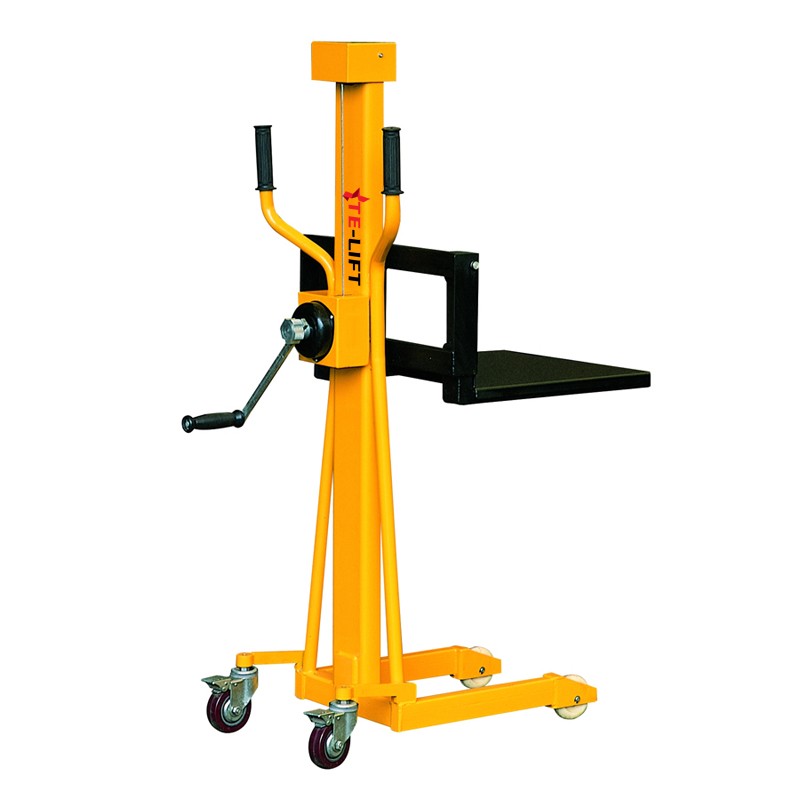

Mini Hand Winch Stacker Manual Winch Platform Lifter

Product Item：LS80, LS150

Capacity 80kg, 150kg

Adjustable Overall Forks Width 160-690mm

Max. Fork Height 1100mm

Fork Length 500mm

Manual Winch Platform Lifter Mini Hand Winch Stacker

LS series

■ Compact and service free design.

■ Manoeuvrable with two hand grips, extemely easy to operate.

■ Cable winch lifting system with fully cable housing, it can be self-lock at any height automatically.

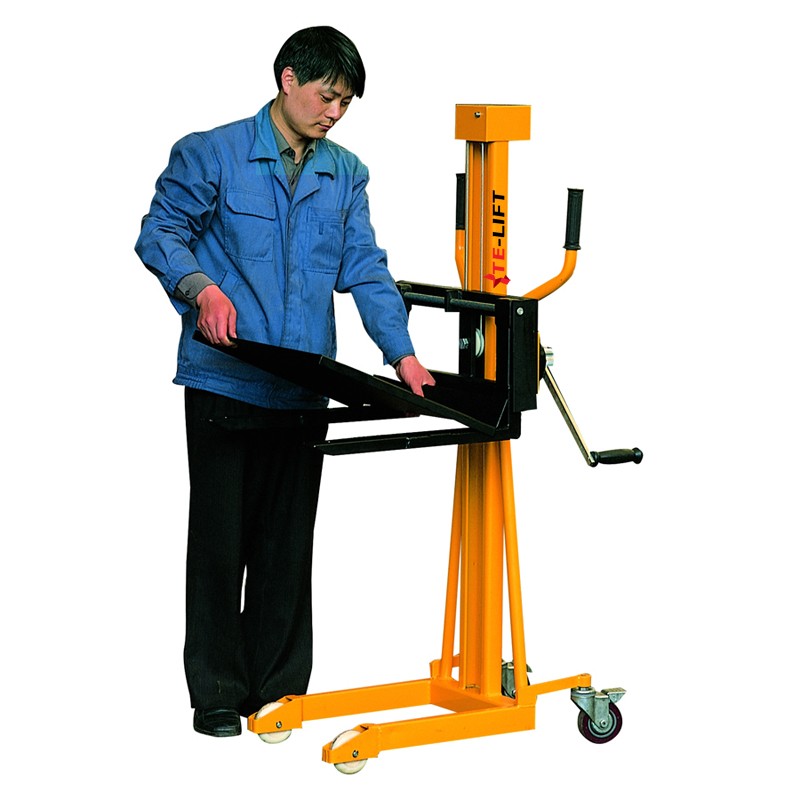

■ Adjustable fork from 132mm to 520mm, also with removable platform 500x530mm.

Model		LS80	LS150
Capacity	(Kg)	80	150
Load Centre	(mm)	250
Max. Fork Height	(mm)	1100
Min. Fork Height	(mm)	70
Fork Length	(mm)	500
Individual Fork Width	(mm)	50
Adjustable Overall Fork Width	(mm)	132-520
Platform Size DxW	(mm)	500x530
Front Load Roller Size Dia.xWidth	(mm)	Φ100x30
Steering Wheel Size Dia.xWidth	(mm)	Φ100x30
Leg Height	(mm)	100
Overall Size LxWxH	(mm)	865x550x1470	830x580x1475
Net Weight	(Kg)	52	62
