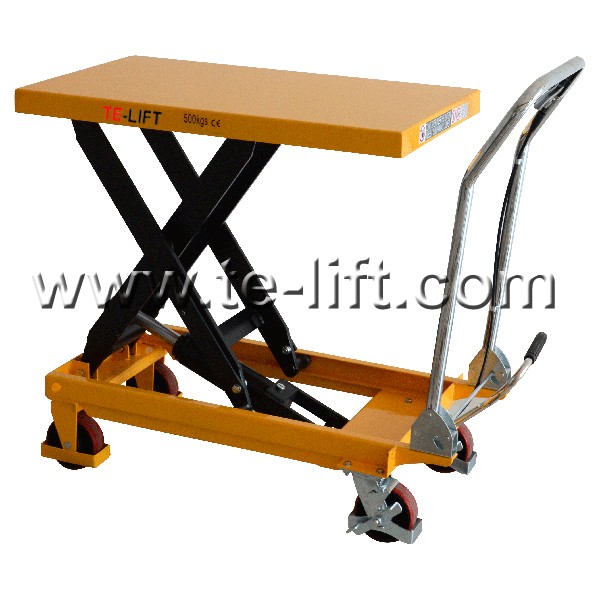

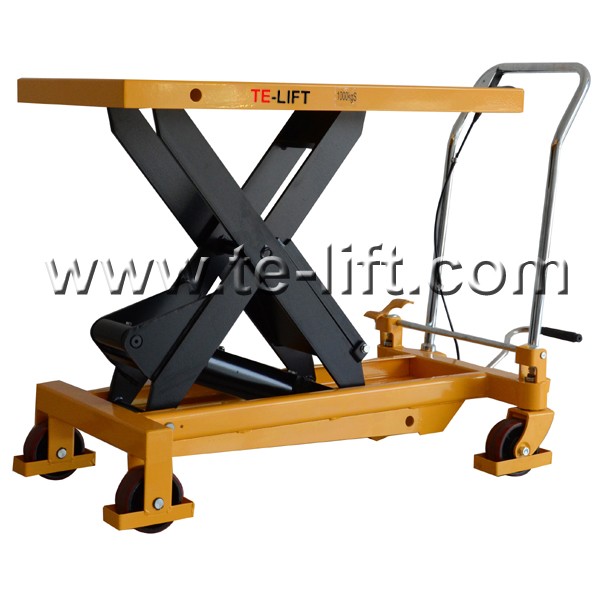

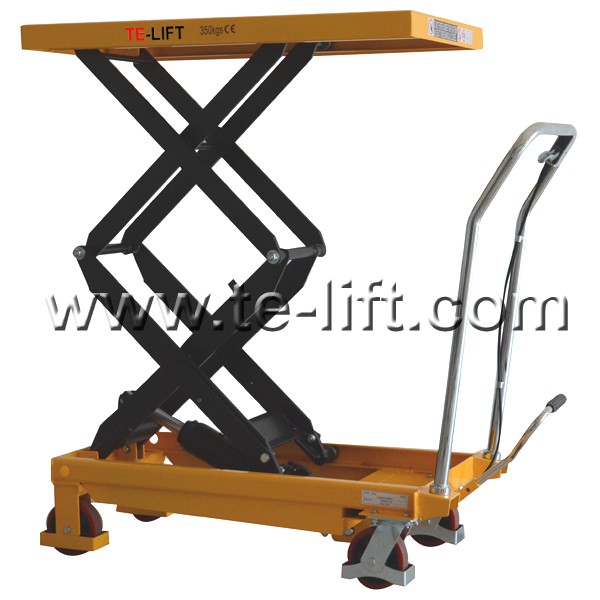

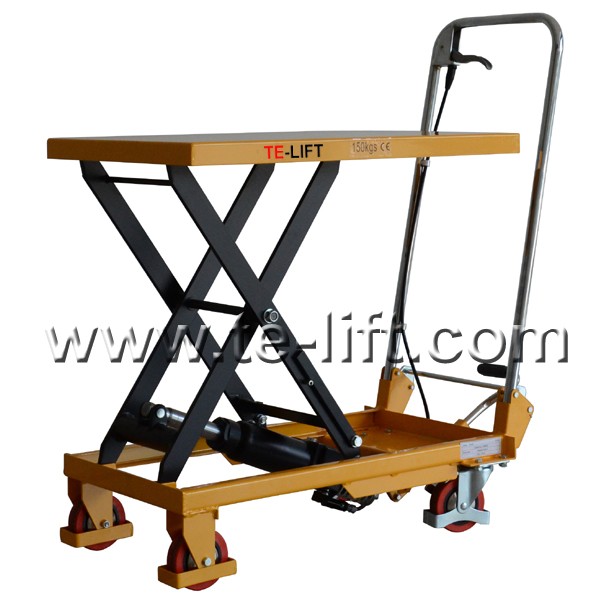

Manual Hydraulic Lift Table Trucks Foot Pedal Hydraulic Platform Carts

Product Item：TF15, TF30, TF50, TF75, TF100, TFD35, TFD70

Capacity 150KG, 300KG, 500KG, 750KG, 1000KG

Max. Table height 720mm - 1500mm

Different table sizes

Lifting by pedal

Foot Pedal Hydraulic Platform Carts Manual Hydraulic Lift Table Trucks

TF series

■ Foot pedal operated hydraulic lifting.

■ Pressure release finger handle, made it easy to descend.

■ Provide a suitable working position or lifting height.

■ With 2 fixed wheels and 2 swivel wheels with brake and foot protection.

■ Different table sizes, capacities and lifting heights for different applications.

■ With chrome plated handle.

■ With foldable handle for TF15, TF30 and TF50.

■ With safety supporting for maintenance.

■ Option protection board on handle.

■ Option screw type pressure release rod.

Model		TF15	TF30	TF50	TF75	TF100	TF15D	TF35D	TF70D
Capacity	(kg)	150	300	500	750	1000	150	350	700
Table Size LxW	(mm)	700x450	850x500	850x500	1000x510	1016x510	700x450	910x500	1220x610
Min. Table Height	(mm)	220	285	285	420	380	310	355	445
Max. Table Height	(mm)	720	880	880	990	990	1220	1300	1500
Handle Height from Ground	(mm)	950	990	990	990	980	950	975	1015
Handle Type		Foldable			Fixed
Wheel Size Dia.xWidth	(mm)	100x25	125x40	125x40	147x50	125x50	100x25	125x40	125x40
Foot Pedal Cycles to Max. Height	(times)	28	27	27	45	82	50	53	97
Net Weight	(kg)	46	77	81	125	140	56	105	195
