Straddle Legs Type Hydraulic Manual Pallet Forklift Stackers

Product Item：GT1016, GT1025, GT1030, GT1516, GT1525, GT1530

Capacity 1000KG, 1500KG

Forged adjustable overall forks width 210-800mm

Max. Lifting height 1600mm, 2500mm, 3000mm

Conforms to EN1757-2

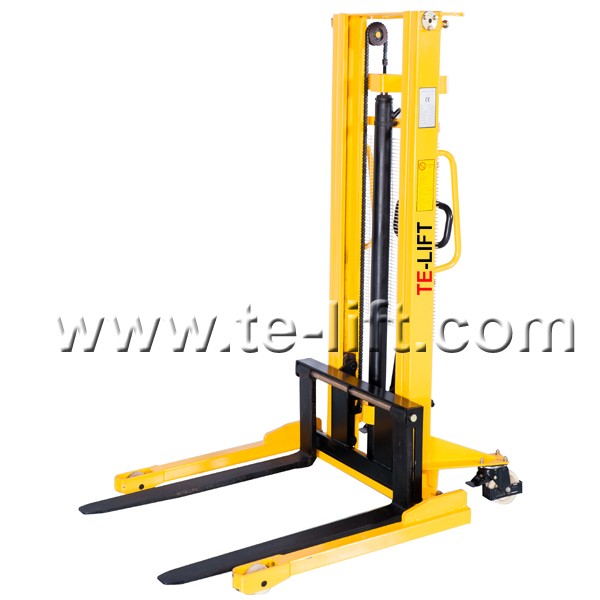

Hydraulic Manual Pallet Forklift Stackers with Straddle Legs

GT series

■Latest technology of hydraulic pump with less effort force.

■Heavy duty one piece 'C' section forks for greatest strength.

■Forged adjustable forks for wider applications.

■Optional wheel types, nylon or polyurethane.

■Conforms to EN1757-1.

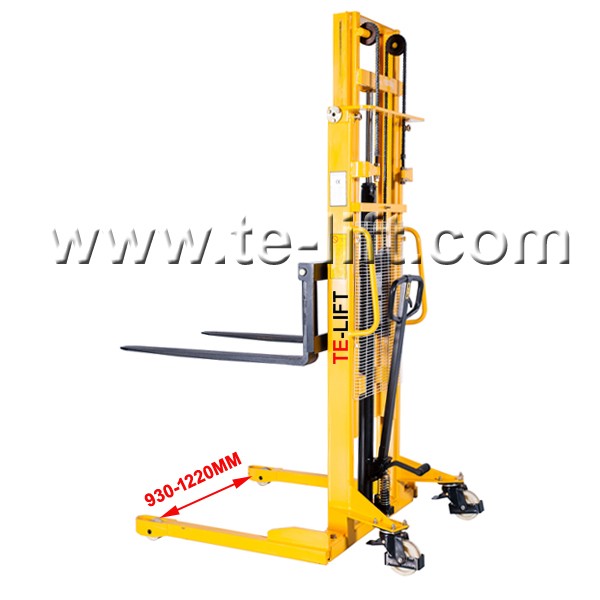

■Adjustable legs width to suit the different pallets, inner width from 930mm to 1220mm.

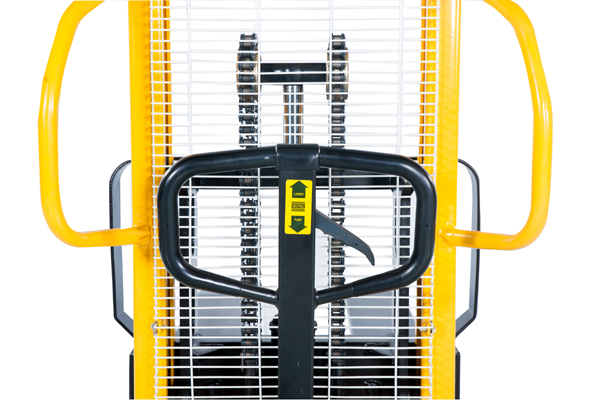

■Rubber protection handle, with neutral position

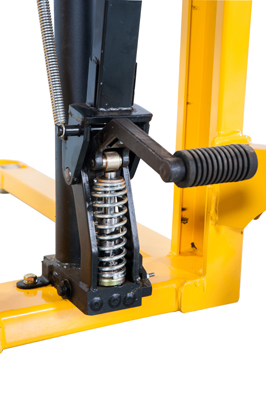

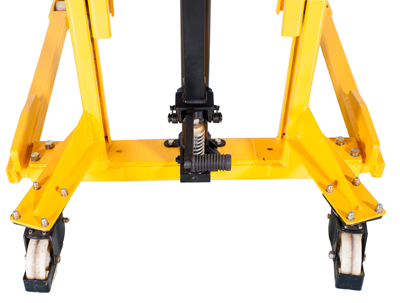

■Easily lift with foot pedal, when w/o load

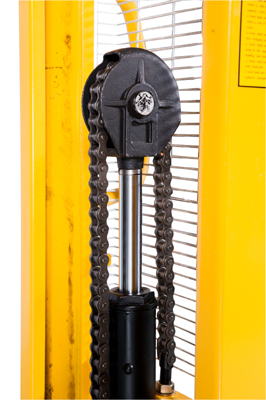

■With steel chain wheel cover, for more protection

Model		GT1016	GT1025	GT1030	GT1516	GT1525	GT1530
Capacity	(kg)	1000			1500
Min. Fork Height	(mm)	75
Max. Fork Height	(mm)	1600	2500	3000	1600	2500	3000
Fork Length	(mm)	1150
Adjustable Overall Fork Width	(mm)	210-800
Load Center	(mm)	600
Turning Radius	(mm)	1590
Inside Width Between Legs	(mm)	930-1220
Overall Length	(mm)	1510
Overall Width	(mm)	1090-1380
Overall Height	(mm)	2050	1820	2070	2070	1820	2070
Front Wheel Diameter	(mm)	100
Rear Wheel Diameter	(mm)	150
Net Weight	(kg)	282	358	377	296	367	386
