Description

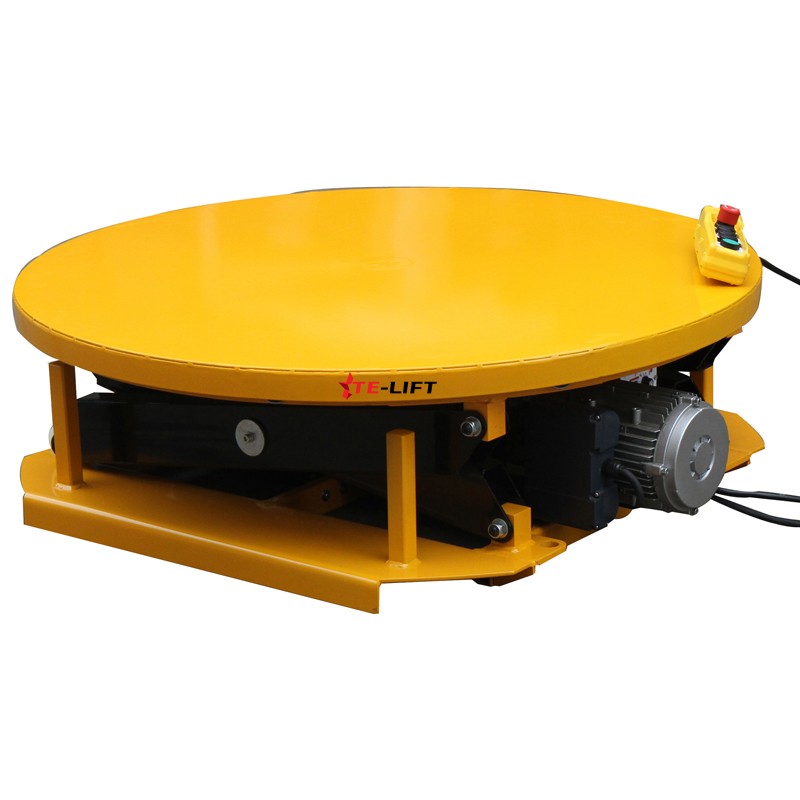

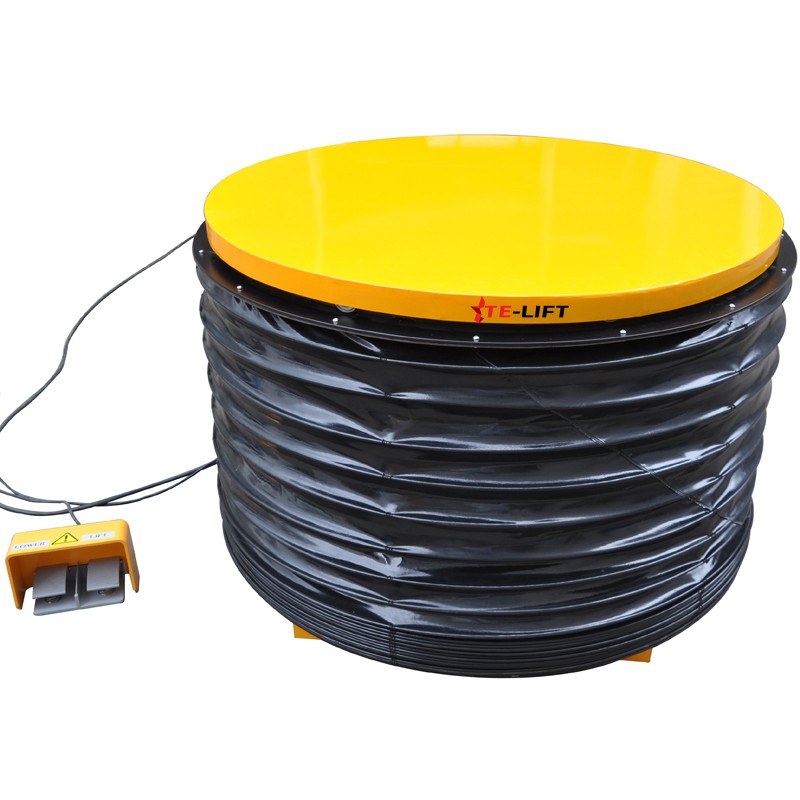

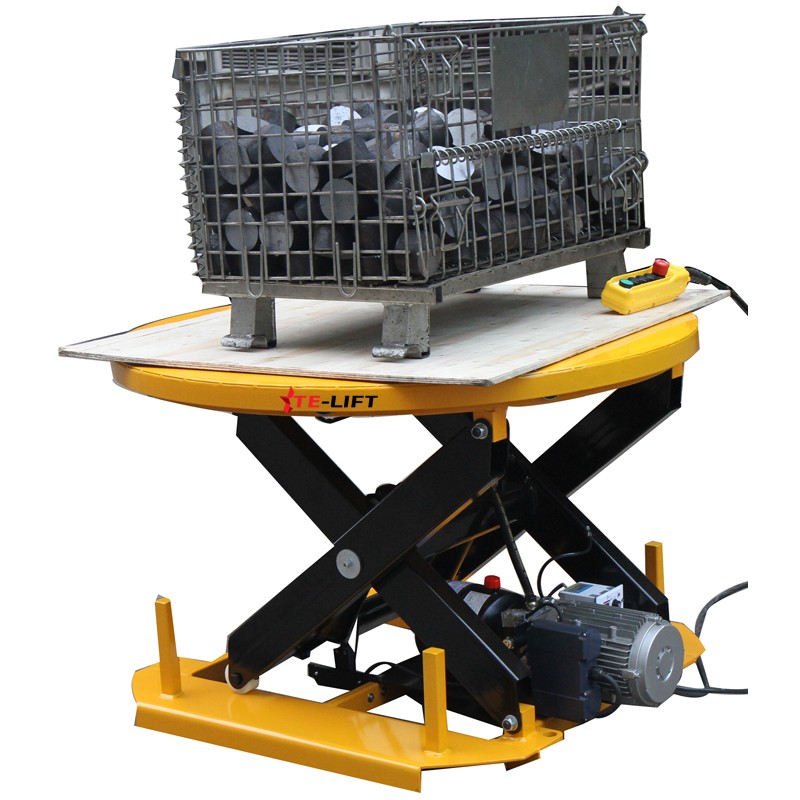

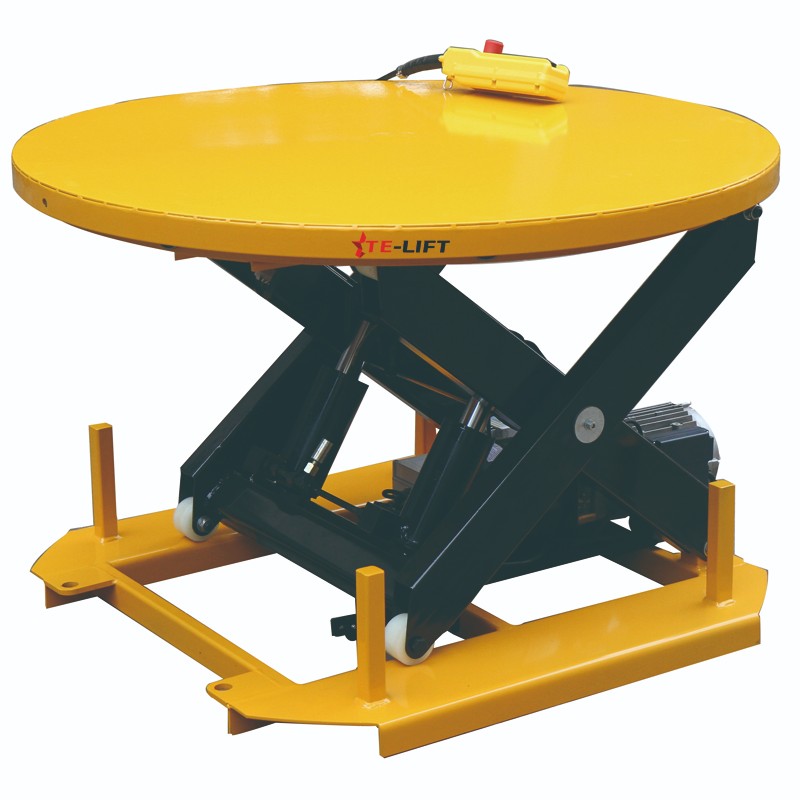

Electric Hydraulic Rotary Lift Table Rotary Lift Platform
SPP360-E and FSPP360-E
■ Power lifting and power rotation to improve the working efficiency.

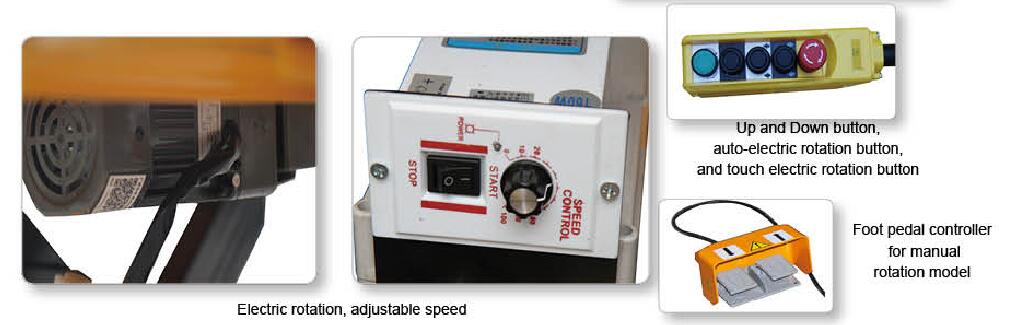

■ 360 degree rotary circular platform, manual rotary or electric rotary, and electric rotary speed is adjustable.
■ Manual rotary type is with foot pedal controller and hand controller as optional, electric rotary type is with hand controller.
■ Easy to be moved by the forklift truck.
■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
■ Single phase power supply as optional.
■ Built-out power unit as optional.
| Model | SPP360-1000E | SPP360-2000E | FSPP360-1000E | FSPP360-2000E | |
| Type | Electric Lifting & Manual Rotation | Electric Lifting & Electric Rotation | |||
| Controller | Foot pedal controller(Hand controller as optional) | Hand controller | |||
| Capacity | (kg) | 1000 | 2000 | 1000 | 2000 |
| Platform Diameter | (mm) | 1110 | 1200 | ||
| Min. Platform Height | (mm) | 300 | 300 | 325 | 340 |
| Max. Platform Height | (mm) | 710 | |||
| Basement Size LxW | (mm) | 1150x930 | |||
| Lift Time | (sec) | 15-20 | 20-25 | 15-20 | 20-25 |
| Rotating Motor | (kw) | \ | \ | 0.16 | 0.3 |
| Net Weight | (kg) | 163 | 175 | 178 | 190 |
