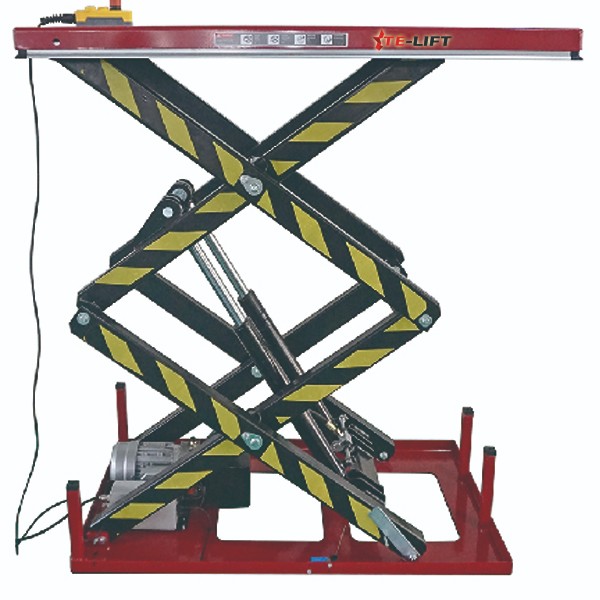

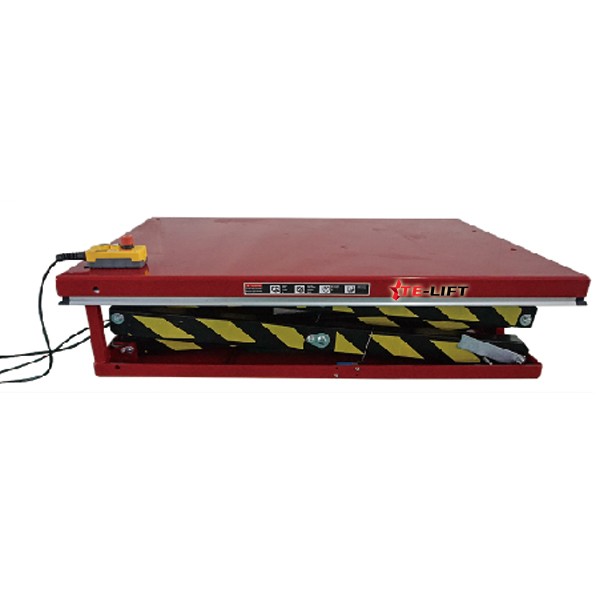

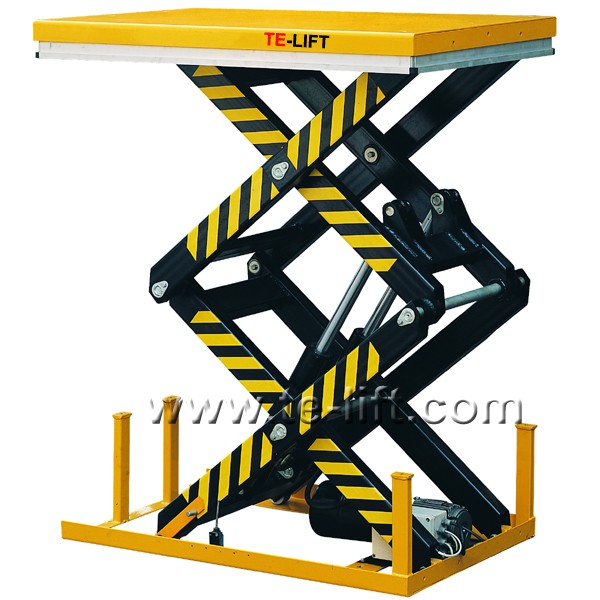

Hydraulic Electric Double Scissors Lift Platform Goods Lift Tables
HD series
■ Heavy duty design.
■ Meet EN1570 norm and ANSI/ASME safety standard.
■ These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
■ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
■ Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
■ Self lubricating bushings on pivot points.
■ Removable lifting eye to facilitable handling and lift table installation.
| Model | HD1000 | HD2000 | HD4000 | |
| Capacity | (kg) | 1000 | 2000 | 4000 |
| Platform Size L×W | (mm) | 1300×820 | 1300×850 | 1700×1200 |
| Lowered Platform Height | (mm) | 305 | 360 | 400 |
| Raised Platform Height | (mm) | 1780 | 1780 | 2050 |
| Base Frame Size L×W | (mm) | 1240×640 | 1220×785 | 1600×900 |
| Lift Time | (sec) | 35-45 | 40-50 | 55-65 |
| Power Pack | 380V/50HZ, AC 1.1kw | 380V/50HZ, AC 1.5kw | 380V/50HZ, AC 2.2kw | |
| Net Weight | (kg) | 255 | 282 | 630 |
