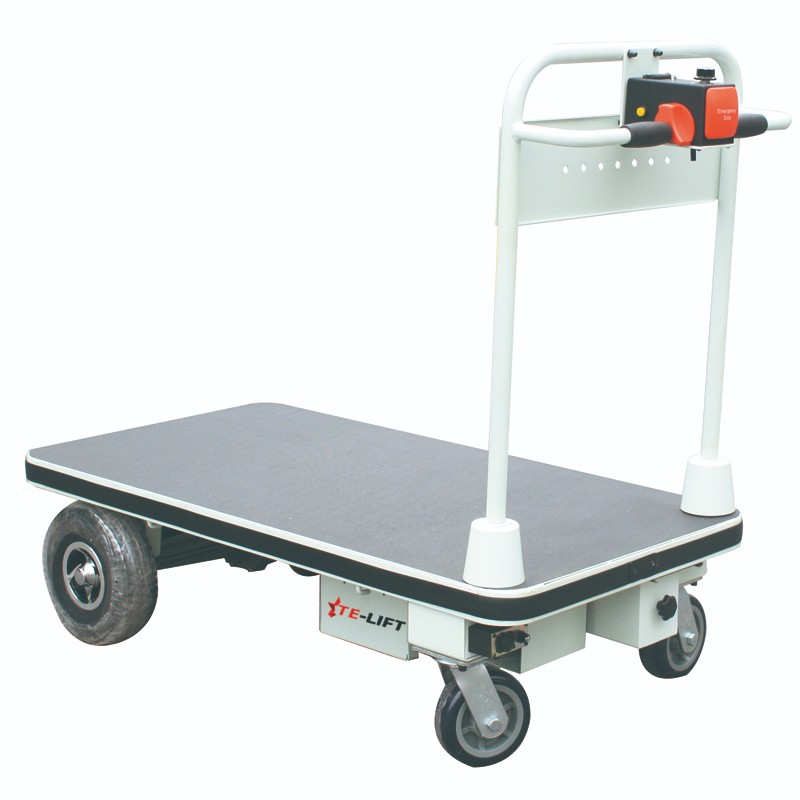

Battery Power Platform Truck Electric Trolley

Product Item：HG-103, HG-105, HG-108, HG-110

Capacity 400kg

Platform Size 1280x630mm, 1280x920mm

Platform Height 320mm

Battery 2x12V/33AH

Battery Electric Trolley Power Platform Truck

HG series

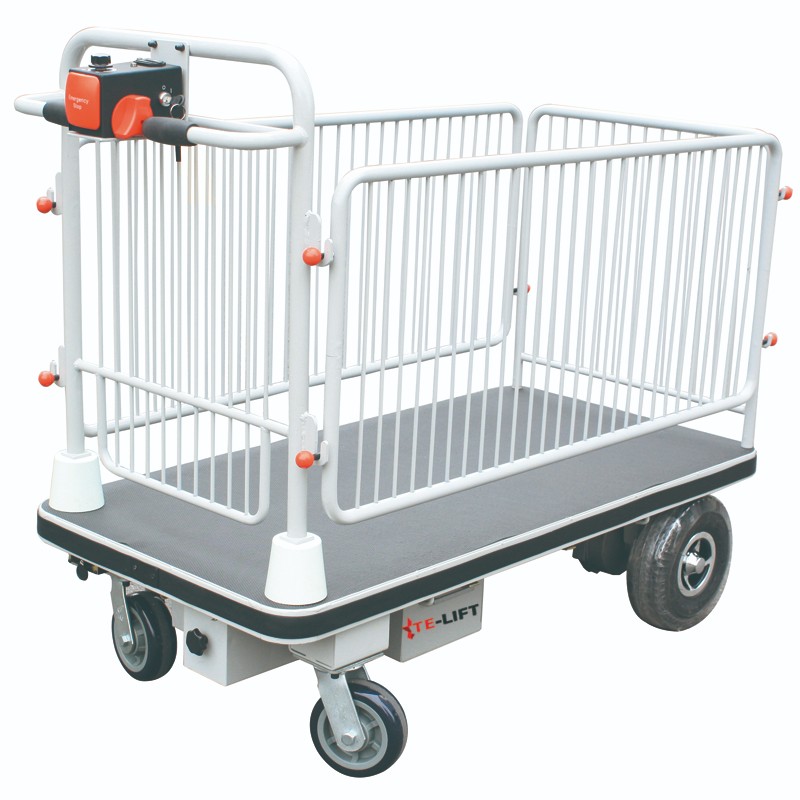

■ HG-105 and HG-110 are with removable guardrail.

■ Saves time by reducing labour cost and increasing efficiency.

■ Drive axle design makes the truck more compact.

■ CURTIS speed controller makes the comfortable operation.

■ Rubber pad on the platform protects the goods well.

■ Rubber bumper around the truck provides more safety.

Model		HG-103	HG-105	HG-108	HG-110
Capacity	(kg)	400
Type		without guardrail	with guardrail	without guardrail	with guardrail
Platform Size	(mm)	1280x630		1280x920
Platform Height	(mm)	320
Motor	(w)	400
Battery	(V/Ah)	2x12/33
Controller	(A)	70
Moving Speed	(km/h)	5~8
Caster Diameter	(mm)	150
Tyre Diameter	(mm)	250
Clearance from Battery Box to Ground	(mm)	65
Handle Height from Ground	(mm)	1080
Overall Size	(mm)	1455x630x1080	1455x630x1080	1455x920x1080	1455x920x1080
Net Weight	(kg)	98	113	110	128
