Battery Electric Platfrom Work Positioners Compact Power Lifters

Product Item：E100, E100H, E150

Capacity 100kg, 150kg

Lifting Height 1500mm, 1700mm, 2000mm

Platform Size 475×605mm

Electric lifting and manual moving

Description

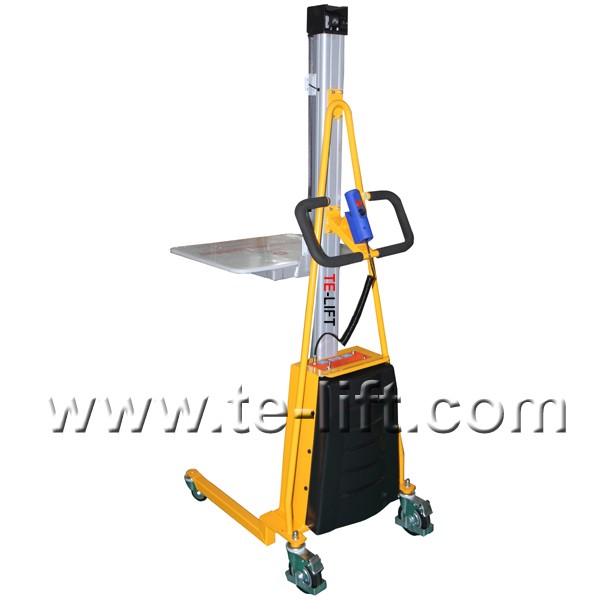

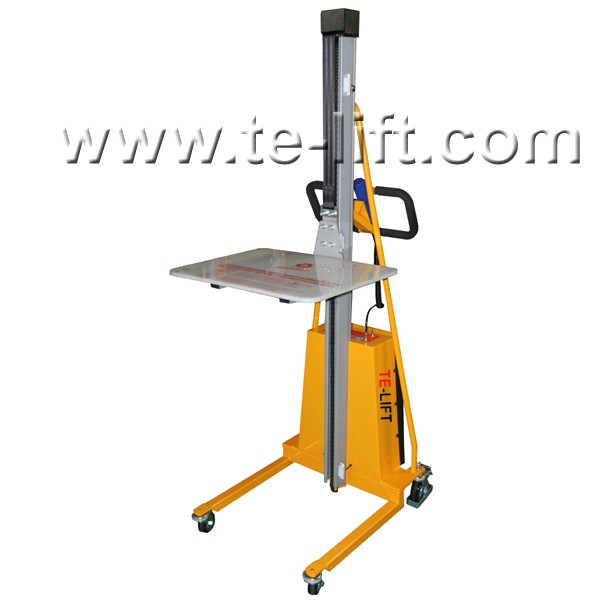

Battery Compact Power Lifters Electric Platfrom Work Positioners

E100 and E150

■ A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.

■ Compact size with electric lifting, ideal for use in narrow aisles and confined spaces.

■ Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outless, etc...

■ Automatic electronic overload protection system ensures safety.

■ Maintenance free and sealed batteries, automatic charger.

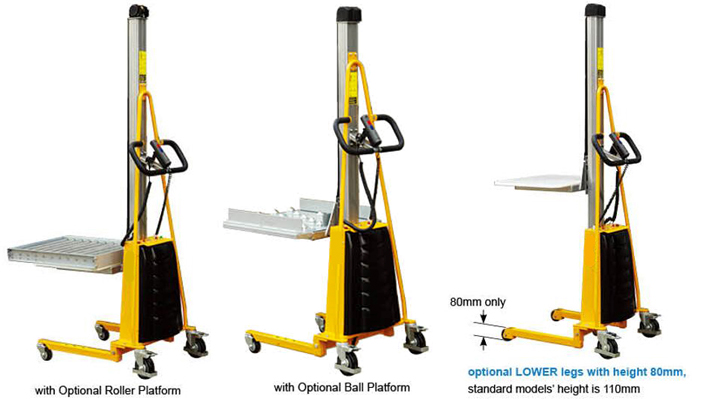

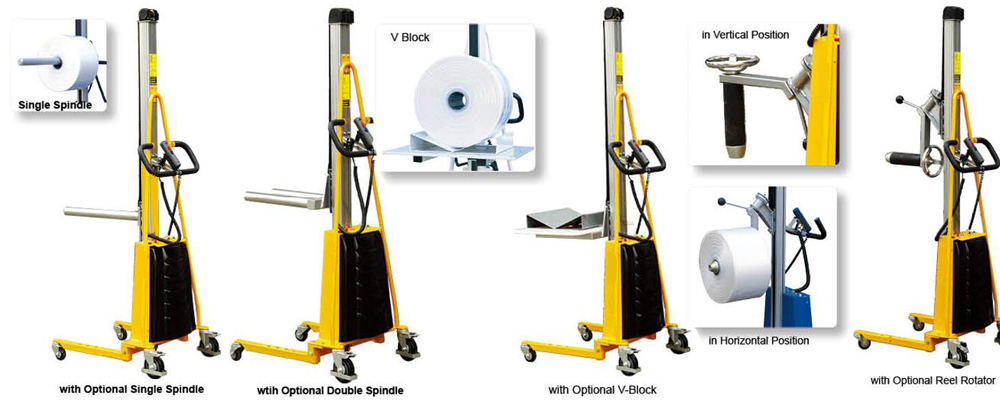

■ Quick change attachment options available, and customized attachment can be developed.

■ Conforms to EN1757 and EN 1175-1.

Model		E100	E100H	E150
Max. Capacity	(kg)	100	100	150
Load Centre	(mm)	235
Max. Platform Height	(mm)	1700	2000	1500
Min. Platform Height	(mm)	130
Leg Height	(mm)	110
Platform Size D×W	(mm)	475×605(PVC)
Overall Size L×W×H	(mm)	870×600×1990	870×600×2290	870×600×1790
Front Wheel Diameter	(mm)	Φ75(PU)
Rear Wheel Diameter	(mm)	Φ125(PU)
Power Unit	(V/W)	24/150
Battery	(V/Ah)	2×12/12
Net Weight	(kg)	66	68	63
