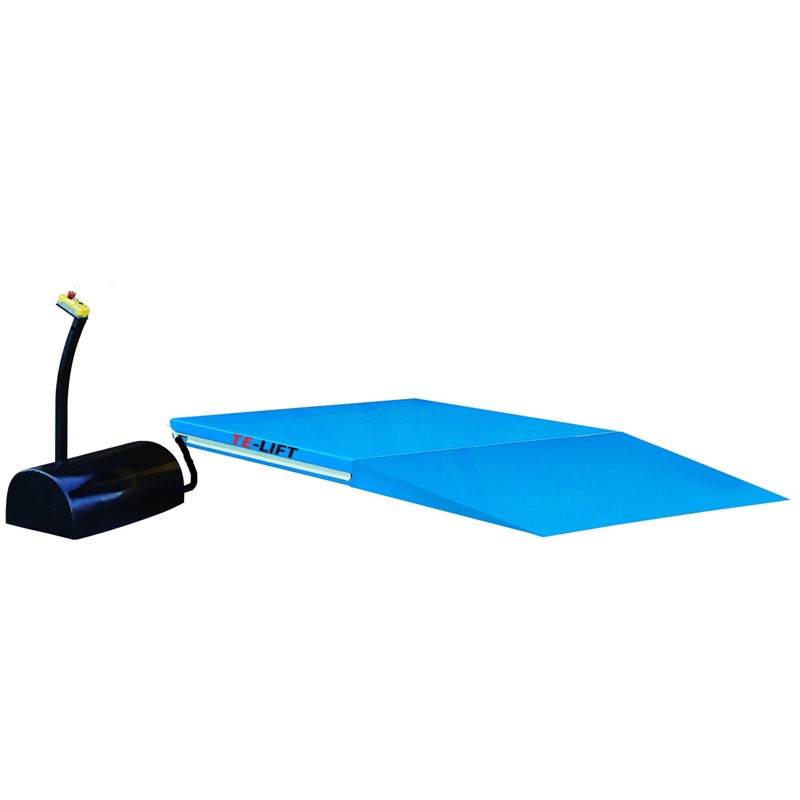

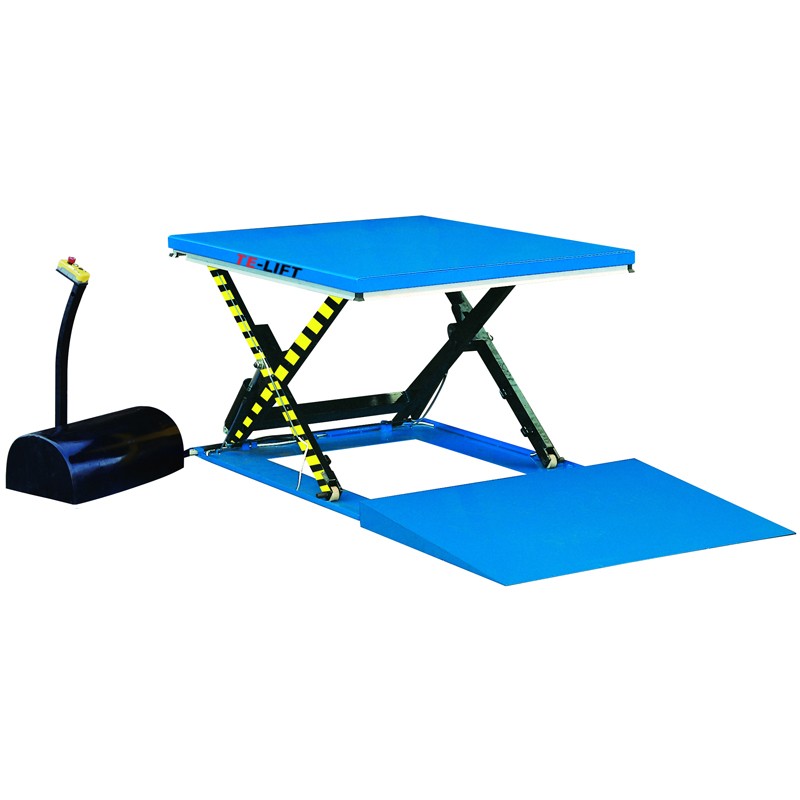

Low Profile Hydraulic Electric Stationary Scissor Lift Table Lifting Platform

Product Item：HY1000, HY1500, HY2000

Capacity 1000KG, 1500KG, 2000KG

Lowered platform height 85mm or 105mm

380V/50HZ-3Phase or 220V/50HZ-Single phase

AC power

Low Profile Hydraulic Electric Stationary Scissor Lifting Table Lift Platform

HY series

■ Heavy duty design with larger platform.

■ These tables achieve a low closed height, eliminating the need for a pit installation.

■ They are manufactured to all European safety standards including EN1570:1999.

■ Remote power pack with pedestal and controls, pretected to IP54.

Standard Safety Features

■ Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

■ 24V control box with UP and DOWN buttons and emergency stop.

■ External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.

■ Power supply are AC380V/50HZ/3phase or 220V/50HZ-Single phase.

Other Standard Features

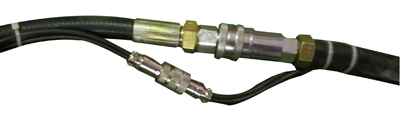

■ Hose burst safety valve to stop the lift table lowering in case of hose breakage.

■ Removable lifting eyes to facilitate handling and installation of the lift table.

■ Mechanical safety chocks for maintenance.

■ Oiless bushings on pivot points.

■ Slope is a standard component.
