Min Hand Winch Stackers Min Winch Fork Lifter
PM120 series
■ PM120A is with pipe type legs and forks, platform as standard.

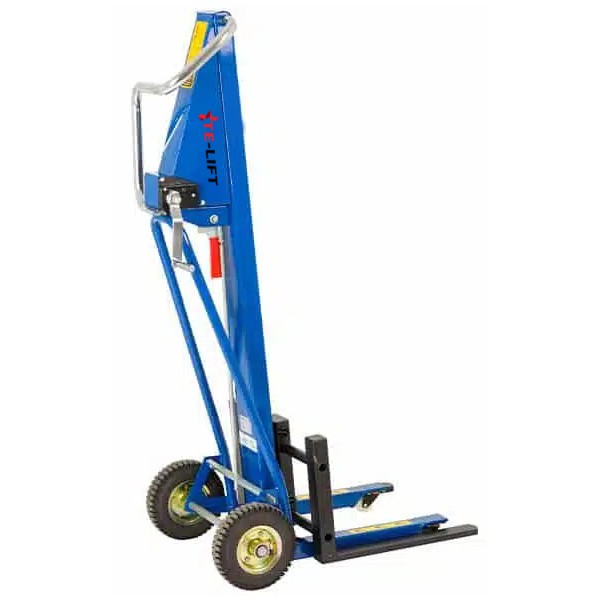

■ PM120B is with Dia.200mm pnuematic rear wheels.
■ Robust, lightweight, steel construction.
■ Maneunverable, extremely easy to use.
■ Cable winch lifting system with fully cable housing.
■ Special brake design, easy operated by hand.
■ With adjustable forks width for PM120 and PM120B.
■ Optional platform for PM120 and PM120B.

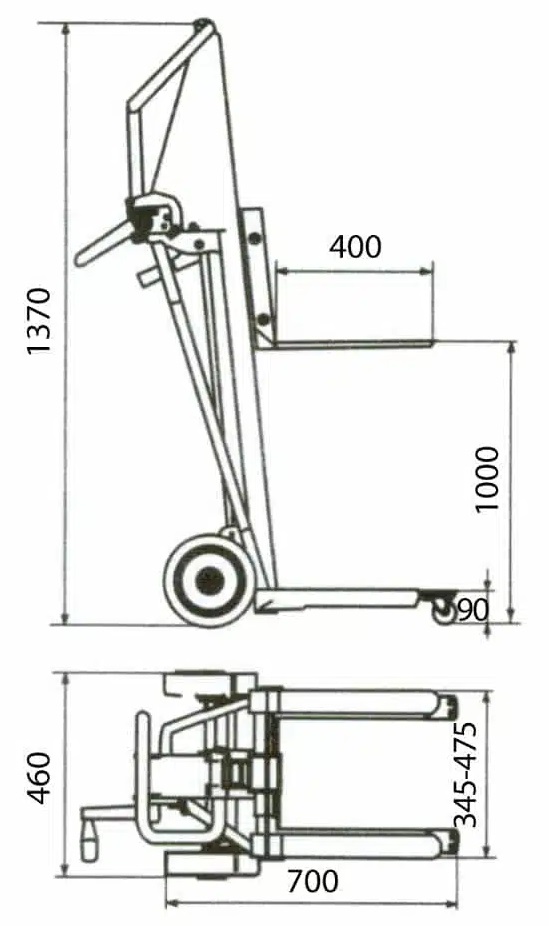

| Model | PM120 | PM120B | PM120A | |
| Capacity | (kg) | 120 | ||
| Max. Lifting Height | (mm) | 1000 | ||
| Min. Fork Height | (mm) | 90 | 100(Platform Height) | |
| Fork Length | (mm) | 400 | 400(Platform Depth) | |
| Adjustable Forks Width | (mm) | 345-475 | 570(Platform Width) | |
| Individual Fork Width | (mm) | 50 | \ | |
| Load Wheel Diameter | (mm) | Φ50 | ||
| Steering Wheel Diameter | (mm) | Φ200(Solid Rubber) | Φ200(Pneumatic) | Φ200(Solid Rubber) |
| Net Weight | (kg) | 31 | 31 | 37 |
