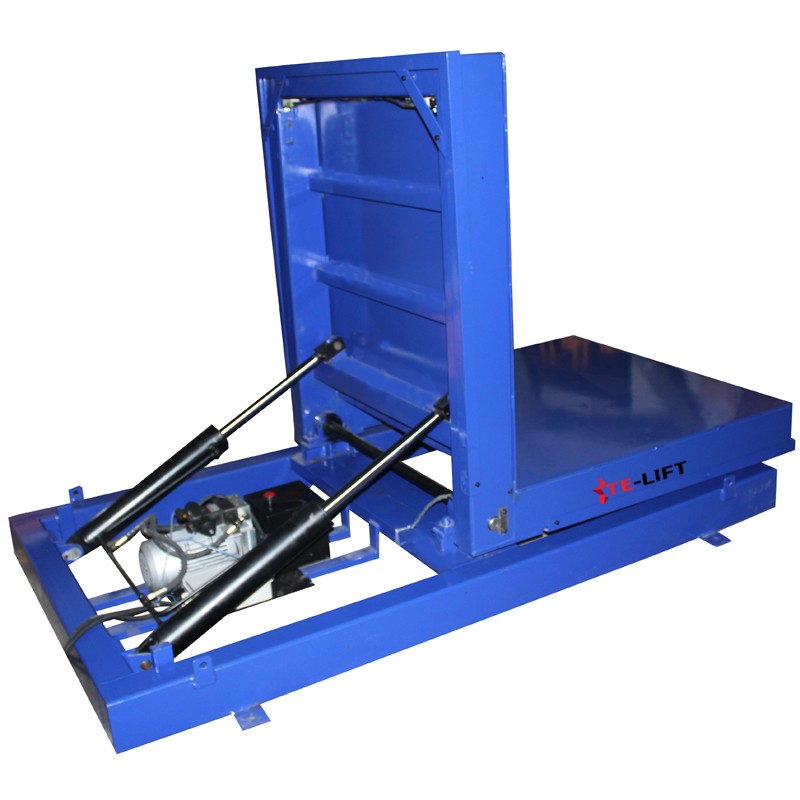

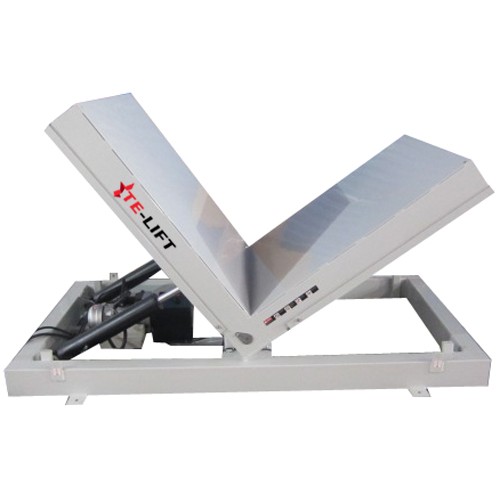

Electric Hydraulic Tilting Table Retroflex Table
MP1000 and MP2000
■ With two-way cylinder and two way valve, two platforms can go vertical and horizontal rbitrarily.
■ Max. 90degrees tilting angle, it can stop in any angle with full load.
■ Two directions tilting controlled by hand controller.
■ With limit switch to keep the min. platform height.
■ With high quality AC power unit.
■ Platform size and capacity can be customized.
| Model | MP1000 | MP2000 | |
| Capacity | (kg) | 1000 | 2000 |
| First Platform Size LxW | (mm) | 1200x1200 | |
| Second Platform Size LxW | (mm) | 1200x1200 | |
| First Platform Min. Height | (mm) | 350 | |
| Second Platform Min. Height | (mm) | 350 | |
| Max. Tilting Degree | (degree) | 90 | |
| Net Weight | (kg) | 450 | 550 |
