Description

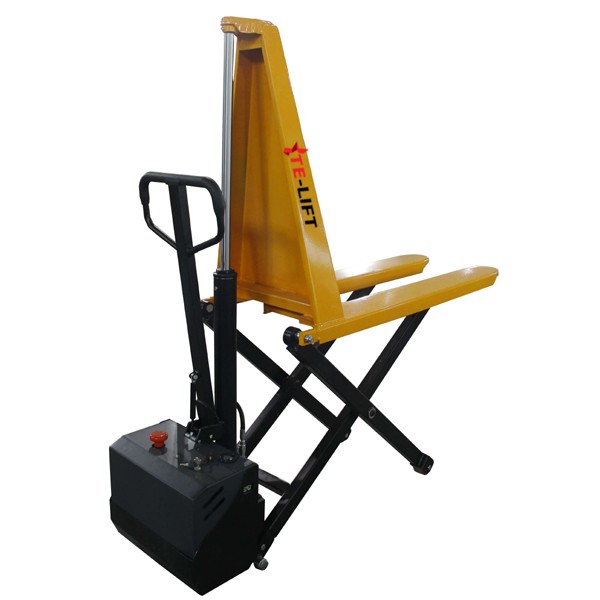

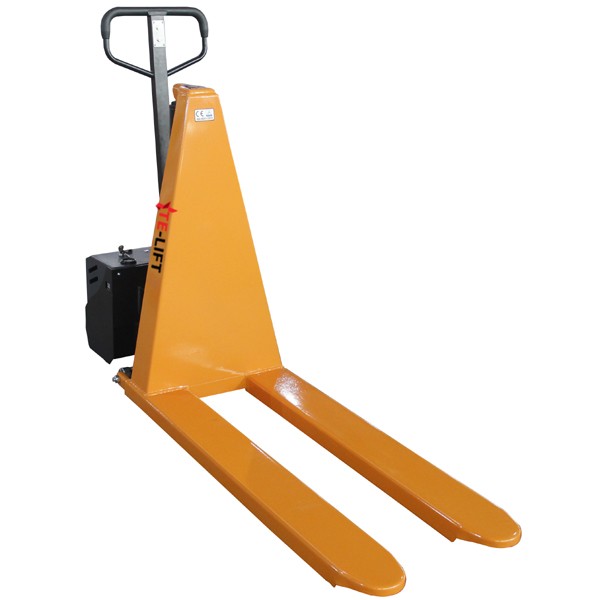

Electric Hydraulic Scissor Lift Pallet Trucks High Lift Pallet Jacks
HC-E series
■ High scissor lift pallet truck design to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets or containers of materials.
■ Electric type lifting makes the work more high efficiency, and labor saving.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ Equped with polyurethane loading roller and steering wheels to protect your floor.
■ The truck will be braked automatically when lift to the maximum height.

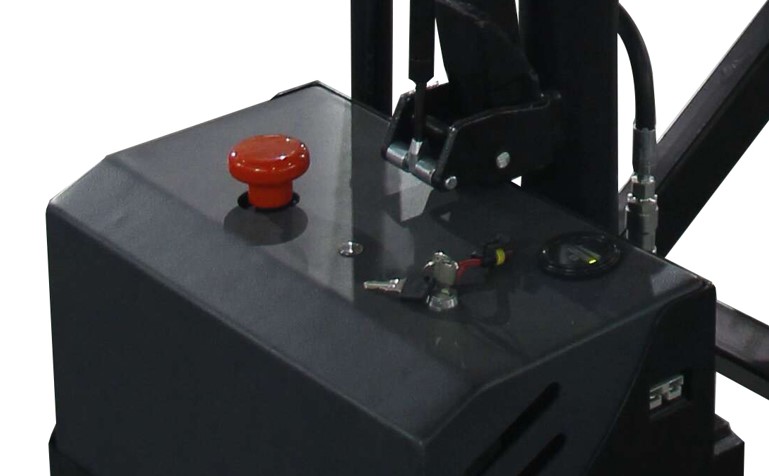

■ Key switch, emergency stop button and coulombmeter are easy to be accessed.
■ With built-out charger.
| Model | HC1054E | HC1068E | HC1554E | HC1568E | |
| Capacity | (kg) | 1000 | 1500 | ||
| Min. Fork Height | (mm) | 85 | |||
| Max. Fork Height | (mm) | 800 | |||
| Overall Forks Width | (mm) | 540 | 685 | 540 | 685 |
| Individual Fork Width | (mm) | 160 | |||
| Fork Length | (mm) | 1150 | |||
| Front Wheel Size | (mm) | Ø74x50 | |||
| Steering Wheel Size | (mm) | Ø180x50 | |||
| Battery | (V/Ah) | 12/60 | |||
| Net Weight | (kg) | 160 | 165 | 165 | 170 |
